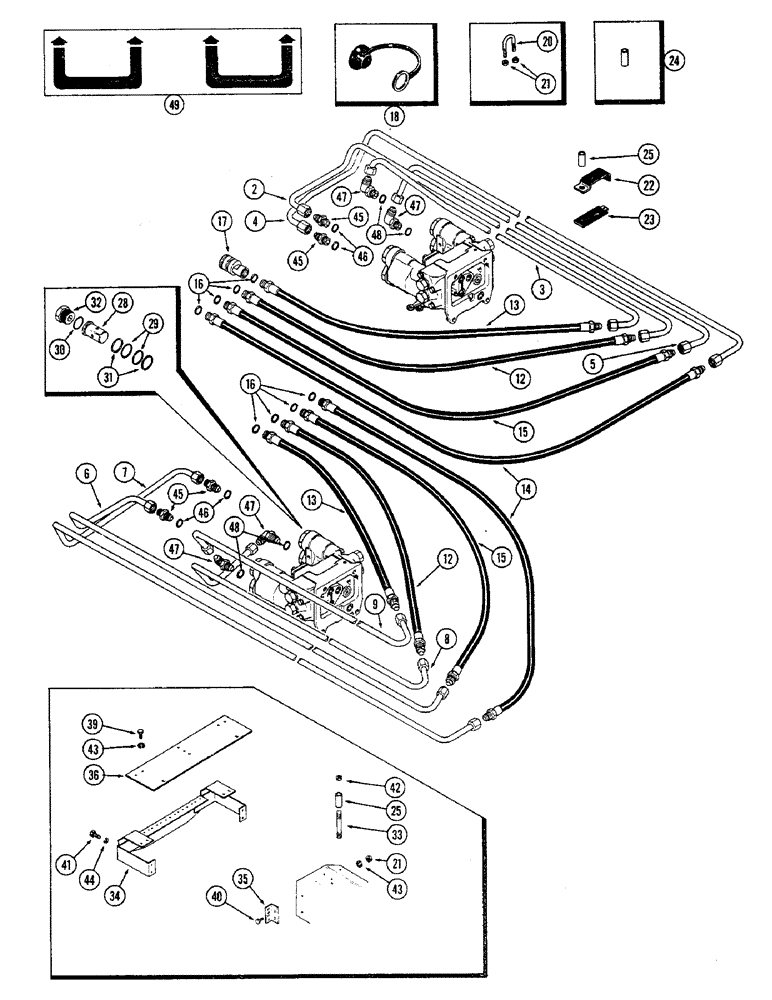

Запчасти Case IH 2470 (329A) - REMOTE HYDRAULICS COUPLING KIT, FIELD INSTALLED (08) - HYDRAULICS

A147522

KIT

- hydraulic coupling, Includes: Ref. 2 - 49

1шт.

2

A147464

TUBE

- hose to remote no. 1

1шт.

3

A147458

TUBE

- hose to remote no. 2

1шт.

4

A147461

TUBE

- hose to remote no. 3

1шт.

5

A147459

TUBE - hose to remote no. 4

1шт.

6

A147408

TUBE

- hose to remote no. 5

1шт.

7

A147453

LINKAGE YOKE

TUBE - hose to remote no. 6

1шт.

8

A147452

TUBE

- hose to remote no. 7

1шт.

9

A147417

TUBE

- hose to remote no. 8

1шт.

12

A147456

HOSE,0.50" ID x 34.00", SAE 100R1

- Tube to coupling #1 and 7 (Includes Ref. 16) 0.50" ID x 34.00", SAE 100R1

2шт.

13

A147457

HOSE

- tube to coupling no. 2 and 8, 29" long (736.6 MM) (Includes ref. 16)

2шт.

14

A147454

HOSE,0.50" ID x 47.50", SAE 100R1

- Tube to coupling #3 and 6 (Includes Ref. 16) 0.50" ID x 47.50", SAE 100R1

2шт.

15

A147455

HOSE,0.50" ID x 40.00", SAE 100R1

- Tube to coupling #4 and 5, Includes Ref. 16 0.50" ID x 40.00", SAE 100R1

2шт.

16

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

17

REF

INSTRUCTION

COUPLING ASSEMBLY - female (See figure 388)

8шт.

18

A137135

PLUG

- dust, black

4шт.

18

A137136

PLUG

- dust, white

4шт.

20

A66788

CLAMP

- remote coupler

8шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

40шт.

22

A147584

CLAMP

- remote tubes, upper

4шт.

23

A147583

CLIP

CLAMP - remote tubes, lower

4шт.

24

A147284

SPACER - 3/4 OD x 1-13/16" long (19.05 x 46.04 MM)

2шт.

25

A147586

SPACER

- 3/4 OD x 1-9/16" long (19.05 x 39.69 MM)

4шт.

28

A147286

INSERT

- remote valve head

8шт.

29

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- remote valve insert, 1-31/64 ID x 9/64" (37.70 x 3.53 MM)

16шт.

29

A139974

O-RING

- remote valve insert, 1-31/64 ID x 5/32" (37.70 x 3.97 MM)

16шт.

30

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- insert face, 1-3/8 x 1-5/8 x 1/8" (34.92 x 41.27 x 3.17 MM)

8шт.

31

A76898

RING

- remote valve insert back up

16шт.

32

A147561

ADAPTER

ADAPTOR - remote valve head

8шт.

33

A147585

STUD

- platform mounting, 1/2" NC x 3-5/8" long

6шт.

34

A149026

COVER - rear coupling mounting

1шт.

35

A149027

ANGLE - rear cover mounting

2шт.

36

A149053

PLATE - platform extension

1шт.

39

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

40

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Cover mounting angle Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

41

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover plate to side plates Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

43

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

45

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - remote valve ports, Includes: Ref. 46

4шт.

46

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

47

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- remote valve ports, Incl. Ref. 48

4шт.

48

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

49

321-4623

DECAL

- remote coupling

1шт.
