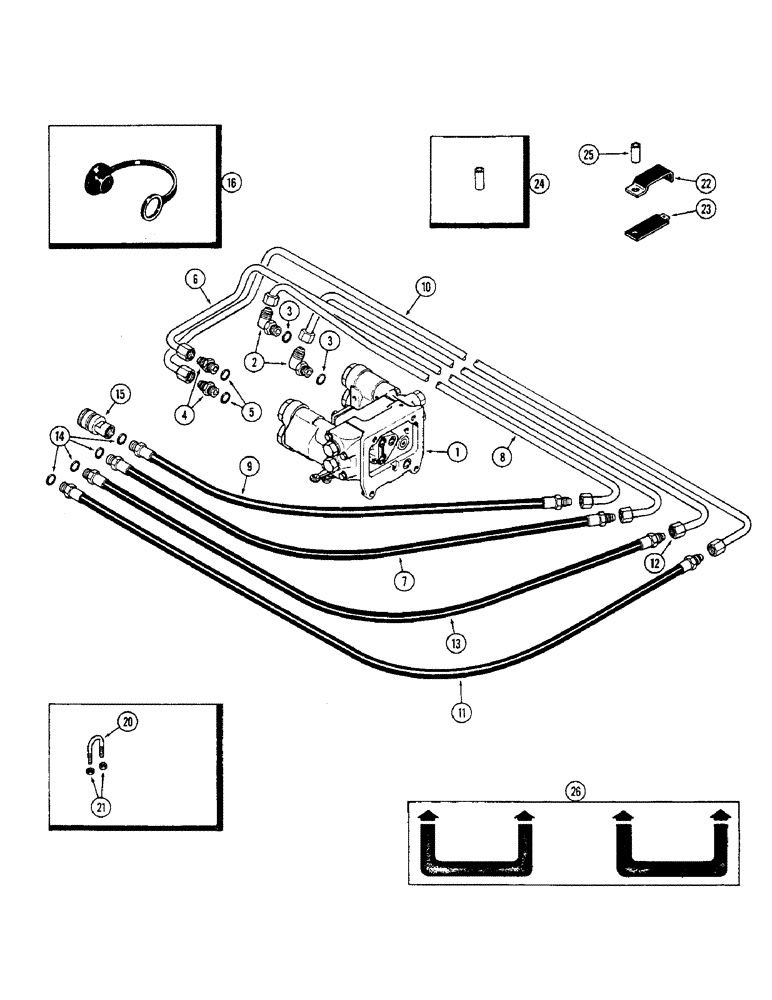

Запчасти Case IH 2470 (328) - REMOTE HYDRAULIC COUPLER CIRCUITRY, WITH SINGLE DUAL CONTROL VALVE P.I.N. 8826987 AND AFTER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - hydraulic remote (See figure 382)
1шт.
2
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree adjustable, 7/8", Incl. Ref. 3
2шт.
3
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/16 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)
1шт.
4
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR - 7/8" straight, Includes: Ref. 5
2шт.
5
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)
1шт.
6
A147464
TUBE
- hose to remote no. 1
1шт.
7
A147456
HOSE,0.50" ID x 34.00", SAE 100R1
- Tube to coupling #1 (Includes Ref. 14) 0.50" ID x 34.00", SAE 100R1
1шт.
8
A147458
TUBE
- hose to remote no. 2
1шт.
9
A147457
HOSE
- tube to coupling no. 2, 29" long (736.6 MM) (Includes ref 14)
1шт.
10
A147461
TUBE
- hose to remote no. 3
1шт.
11
A147454
HOSE,0.50" ID x 47.50", SAE 100R1
- Tube to coupling #3 (Includes Ref. 14) 0.50" ID x 47.50", SAE 100R1
1шт.
12
A147459
TUBE - hose to remote no. 4
1шт.
13
A147455
HOSE,0.50" ID x 40.00", SAE 100R1
- Tube to coupling #4 (Includes Ref. 14) 0.50" ID x 40.00", SAE 100R1
1шт.
14
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)
4шт.
15
A141156
COUPLING, BREAK AWAY
COUPLING ASSEMBLY - female (See figure 388)
4шт.
16
A137135
PLUG
- dust, black
2шт.
16
A137136
PLUG
- dust, white
2шт.
20
A66788
CLAMP
- remote coupler
4шт.
21
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
16шт.
22
A147584
CLAMP
- remote tubes, upper
2шт.
23
A147583
CLIP
CLAMP - remote tubes, lower
2шт.
24
A147284
SPACER - platform, 3/4" OD x 1-13/16" long (19.95 x 46.04 MM)
2шт.
25
A147586
SPACER
- platform, 3/4" OD x 1-9/16" long (19.05 x 39.69 MM)
4шт.
26
321-4623
DECAL
- remote coupling
1шт.
