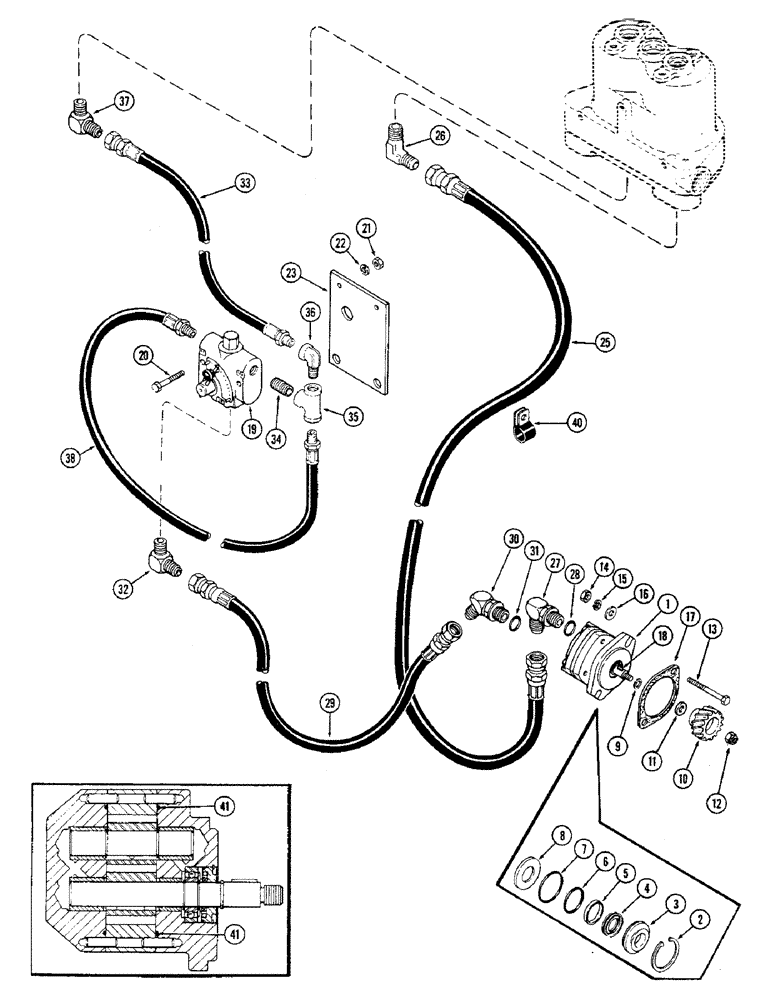

Запчасти Case IH 2470 (322) - AUXILIARY HYDRAULIC PUMP AND VALVE, PRIOR TO TRANSMISSION SERIAL NO. 10025257 (08) - HYDRAULICS

A77253

KIT - auxiliary hydraulic (6 GPM) (Machine item), Includes: Ref. 1 - 41

1шт.

A77254

KIT - auxiliary hydraulic (11 GPM) (Machine item), Includes: Ref. 1 - 41

1шт.

1

A139692

PUMP

- auxiliary, 6 GPM (23 liters), Includes: Ref. 2 - 9

1шт.

1

A139693

PUMP

- auxiliary, 11 GPM (42 liters), Includes: Ref. 2 - 9

1шт.

A45378

SEAL

KIT - pump seal, Includes: Ref. 2 - 8

1шт.

2

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

3

A45377

SEAL

RETAINER - seal

1шт.

4

A45374

RING

- quad

1шт.

5

A45376

COLLAR

- o-ring

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 MM) (Replaces A58602)

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

- 1-1/4 x 1-3/8 x 1/16" (31.75 x 34.92 x 1.58 MM)

1шт.

8

A45375

WASHER

- back-up

1шт.

9

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

10

L43703

GEAR

- pump drive

1шт.

11

A64303

WASHER

- 41/64 x 1-1/16 x 1/16" (16.27 x 26.99 x 1.59 MM)

1шт.

12

131-58

LOCK NUT,1/2"-20, G5

NUT - lock (1/2" NF Essna)

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex., grade 5

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE

22шт.

17

A58617

GASKET

- pump mounting

1шт.

18

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

19

A139696

VALVE

- variable flow

1шт.

20

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

A139609

BRACKET

- valve mounting

1шт.

25

A141005

HOSE - inlet, filter to pump, 3/4" ID x 100" (19.05 x 2540 MM)

1шт.

26

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 90 degree 3/4" tube x 1/2" PT, filter to inlet hose

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 3/4" tube x 1-1/16"-12, inlet hose to pump, Incl. Ref. 28

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

29

A141008

HOSE,0.50" ID x 16.00", SAE 100R2

- Outlet, Pump to valve 0.50" ID x 16.00", SAE 100R2

1шт.

30

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 37 degree 3/4" tube x 1-1/16"-12, pump to outlet hose, Incl. Ref 31

1шт.

31

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

32

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree 5/8" tube x 7/8"-14, outlet hose to valve

1шт.

33

A141011

HOSE - return, valve to filter, 1/2" ID x 107" (12.7 x 2717.8 MM)

1шт.

34

221-1185

FITTING

NIPPLE - 1/2" PT x 1-1/8" long, return, Serial Range: hose-valve

1шт.

35

221-1424

TEE,Pipe, 1/2" NPT

- 1/2" PT, return hose to valve

1шт.

36

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 90 degree 1/2" PT x 1/2" PT, return hose to valve

1шт.

37

218-499

ELBOW - 90 degree 5/8" tube x 7/8"-14, return, Serial Range: hose-filter

1шт.

38

A141012

HOSE

- by-pass, 3/8" ID x 22" (9.52 x 558.8 MM)

1шт.

40

T50104

CLAMP

- hose, inlet

1шт.

41

A47669

O-RING,2.989" ID x 3.129" OD

- hydraulic pump body, 2-63/64 x 3-1/8 x 1/32" (75.8 x 79.37 x 0.79 MM)

2шт.
