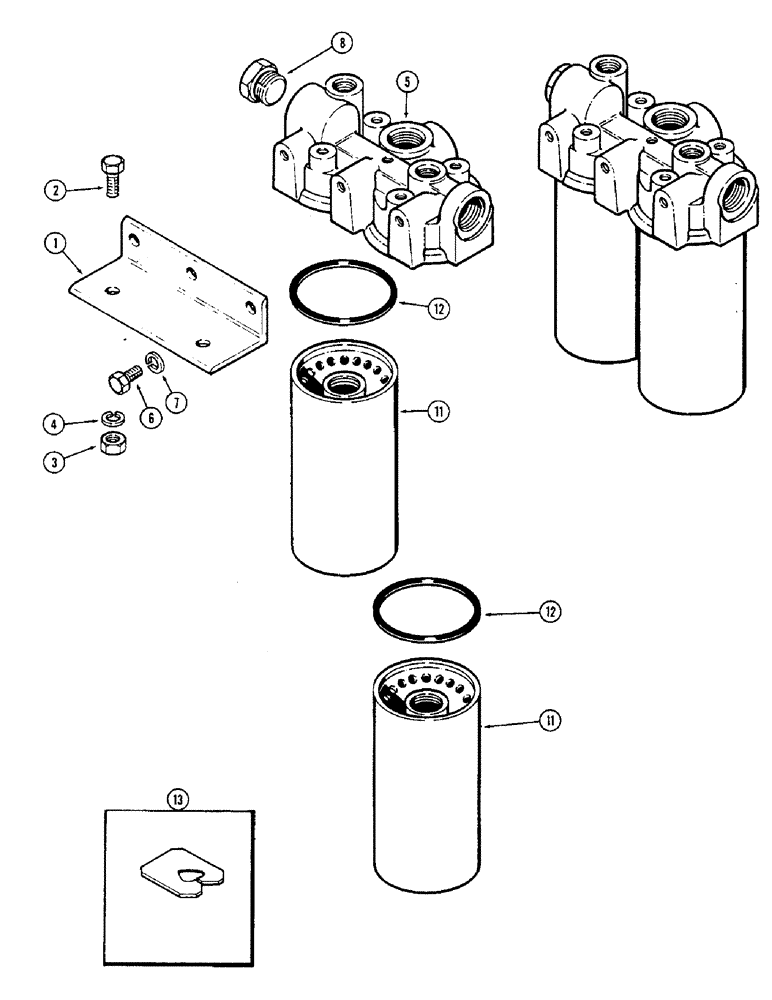

Запчасти Case IH 2470 (320) - HYDRAULIC FILTERS AND HOUSING, TRANSMISSION SERIAL NO. 10025257 AND AFTER (08) - HYDRAULICS

1

A137952

BRACKET

- filter mounting

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

A137898

HOUSING

- filter mounting (Order A143469, 221-1011 and 221-1012)

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- housing

1шт.

A45625

HYDRAULIC OIL FILTER

ELEMENT KIT - hydraulic filter, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

FILTER - hydraulic oil (Order A45625)

2шт.

12

A139281

GASKET

- filter element

2шт.

13

NSS

NOT SOLD SEPARAT

CLIP - gasket retriever

2шт.
