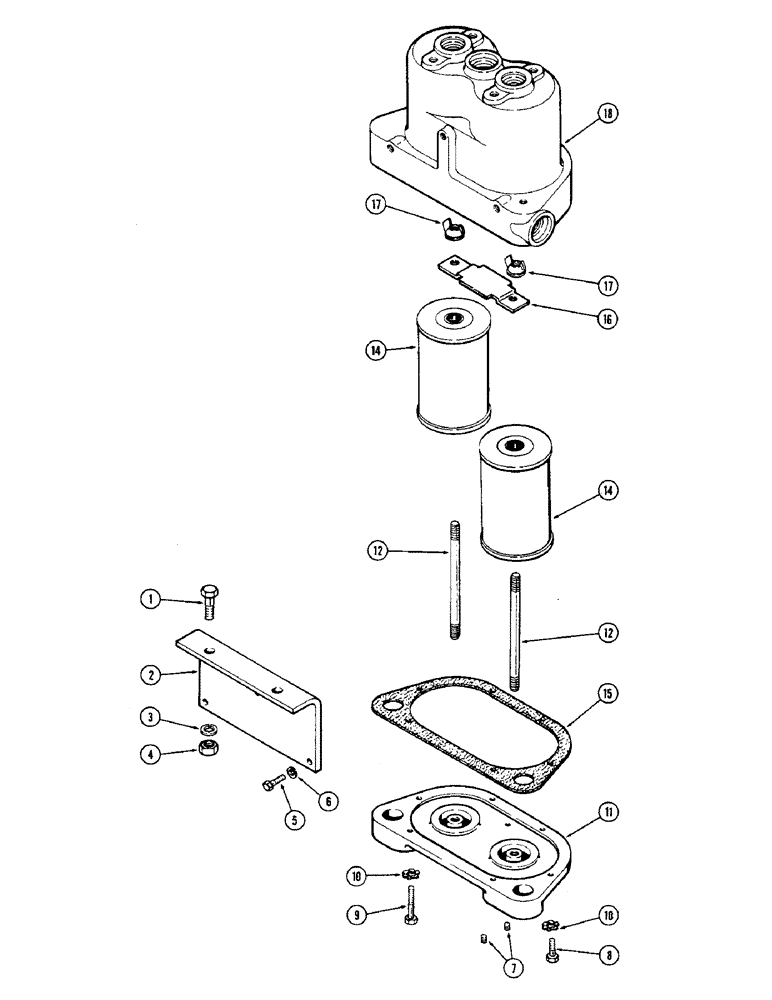

Запчасти Case IH 2470 (318) - HYDRAULIC FILTERS, HOUSING AND MANIFOLD, PRIOR TO TRANSMISSION SERIAL NO. 10025257 (08) - HYDRAULICS

1

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

2

A75478

SUPPORT

BRACKET - filter mounting

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

221-1040

PLUG,Sq Hd, 1/4"-18 NPTF

- pipe, 1/4" square head

2шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

10

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" internal/external

6шт.

11

A63340

MANIFOLD

- hydraulic filter

1шт.

12

A63342

STUD

- filter

2шт.

A44012

HYDRAULIC OIL FILTER

KIT - filter element, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - hydraulic oil filter (Order A44012 kit)

2шт.

15

A63341

GASKET

- manifold oil filter

1шт.

16

A76474

COVER

BAFFLE - hydraulic filter

1шт.

17

129-400

WING NUT,1/2"-13

NUT - wing

2шт.

18

A76990

HOUSING

- hydraulic filter

1шт.
