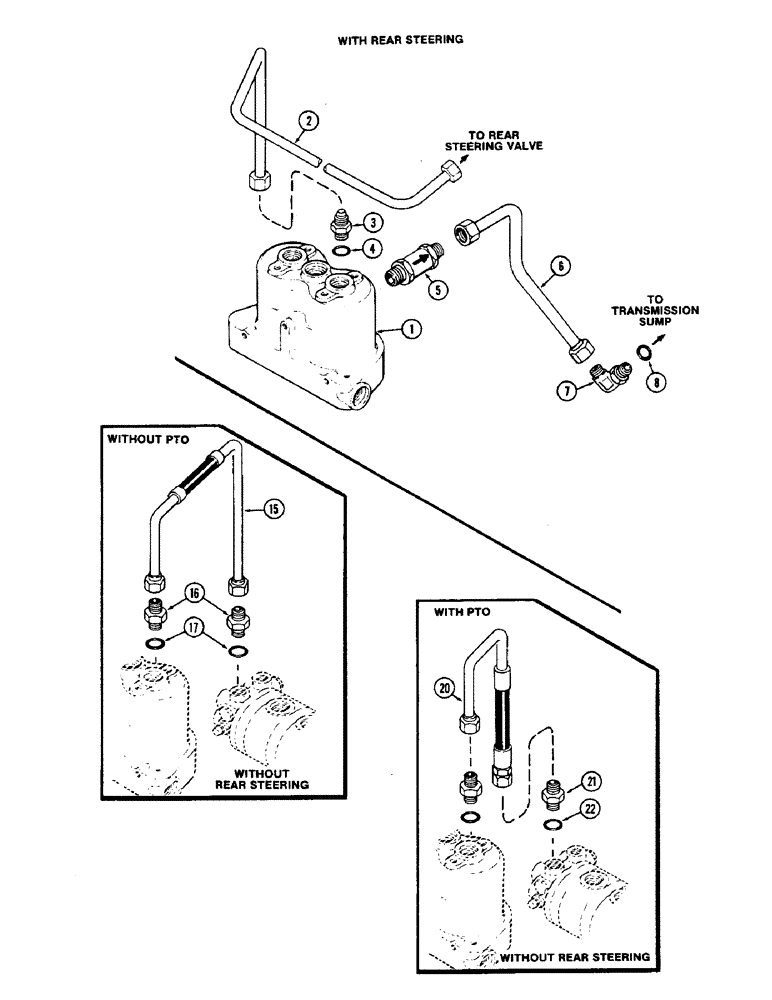

Запчасти Case IH 2470 (316) - HYDRAULIC FILTER CIRCUITRY, WITH REAR STEERING, PRIOR TO TRANSMISSION SERIAL NO. 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

HOUSING - hydraulic filter (See figure 318)

1шт.

2

A138371

TUBE

- return (Used with rear steering) (Replaces A77052)

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

5

A75483

VALVE

ASSEMBLY - relief, filter pressure (See figure 352)

1шт.

6

A77023

TUBE

-, Serial Range: filter-sump

1шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

15

A77032

HOSE - pump to filter, w/o rear steering w/ PTO

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, w/o rear steering w/ PTO, Incl. Ref. 17

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM), w/o rear steering w/ PTO

1шт.

20

A77031

HOSE

- pump to filter, w/o rear steering & PTO

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, w/o rear steering & PTO, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM), w/o rear steering & PTO

1шт.
