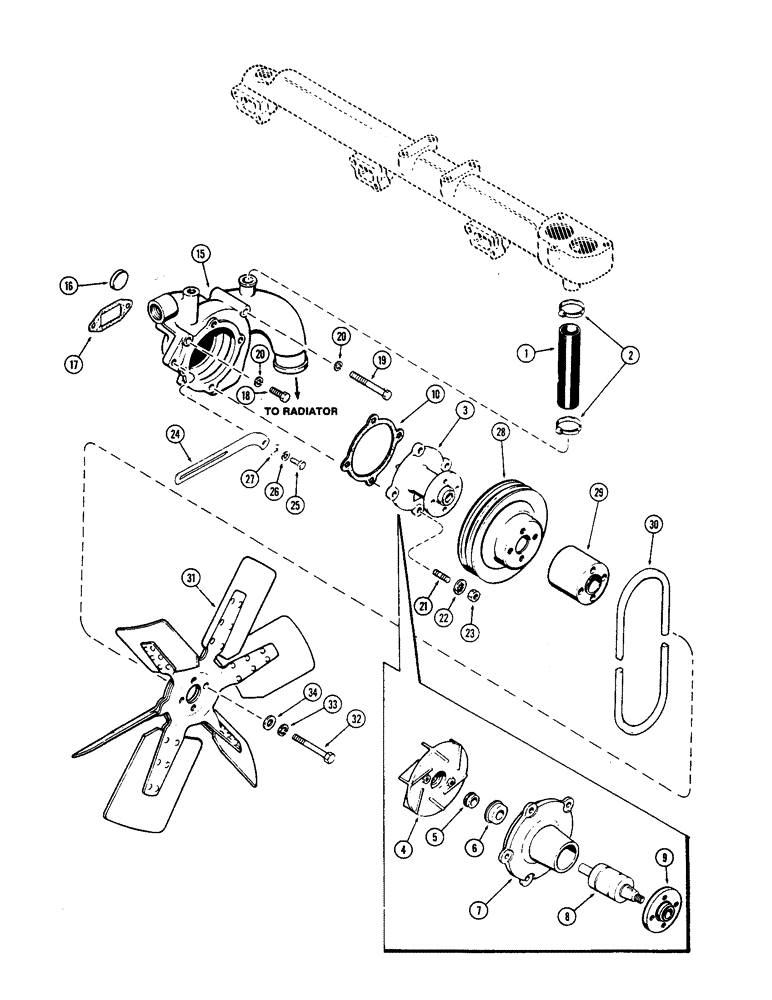

Запчасти Case IH 2470 (012) - WATER PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water manifold to water pump, 1-7/32 x 1-17/64 x 5-19/64" (30.96 x 32.15 x 134.54 MM)

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 MM)

2шт.

3

A62976

PUMP

PUMP - water, with plastic impeller (Order A152154)

1шт.

3

A152154

PUMP

PUMP - water, with cast iron impeller, Includes: Ref. 4 - 9

1шт.

3

1998701C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

3

A48329

CORE-WATER PUMP

Return Number, Water Pump

1шт.

4

NSS

NOT SOLD SEPARAT

IMPELLER - water pump, plastic (Order A152126)

1шт.

4

A152126

IMPELLER

IMPELLER - water pump, cast iron

1шт.

5

A34000

SEAL

SEAL - impeller, water pump

1шт.

6

A142499

SEAL

SEAL - pump shaft

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

8

A59056

BEARING ASSY

SHAFT ASSEMBLY - with bearing

1шт.

Shaft assembly is not tapered as shown on art.

1шт.

9

A154455

HUB

HUB - fan and pulley (Replaces A58742)

1шт.

10

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

15

A60630

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 16

1шт.

16

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-7/64" cup type (28.11 MM)

1шт.

17

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

19

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

2шт.

20

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

A62234

STUD

STUD - 3/8" NC x 1-5/16"

4шт.

22

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

23

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - 3/8" NC hex. jam

4шт.

24

A77081

STRAP

STRAP - alternator adjusting

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

26

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

27

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

1шт.

28

A75293

PULLEY

PULLEY - fan driven

1шт.

29

A76913

BUSHING

SPACER - fan

1шт.

30

A61048

SET OF BELTS,0.69" W x 58.00" L

Fan, 2 Matched

1шт.

31

A64705

FAN

FAN - radiator, suction

1шт.

32

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

BOLT, Hex, 3/8"-16 x 4", G5

4шт.

33

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

34

95-6

WASHER,3/8"

WASHER - 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 mm)

4шт.

19987011

PUMP reman

1шт.
