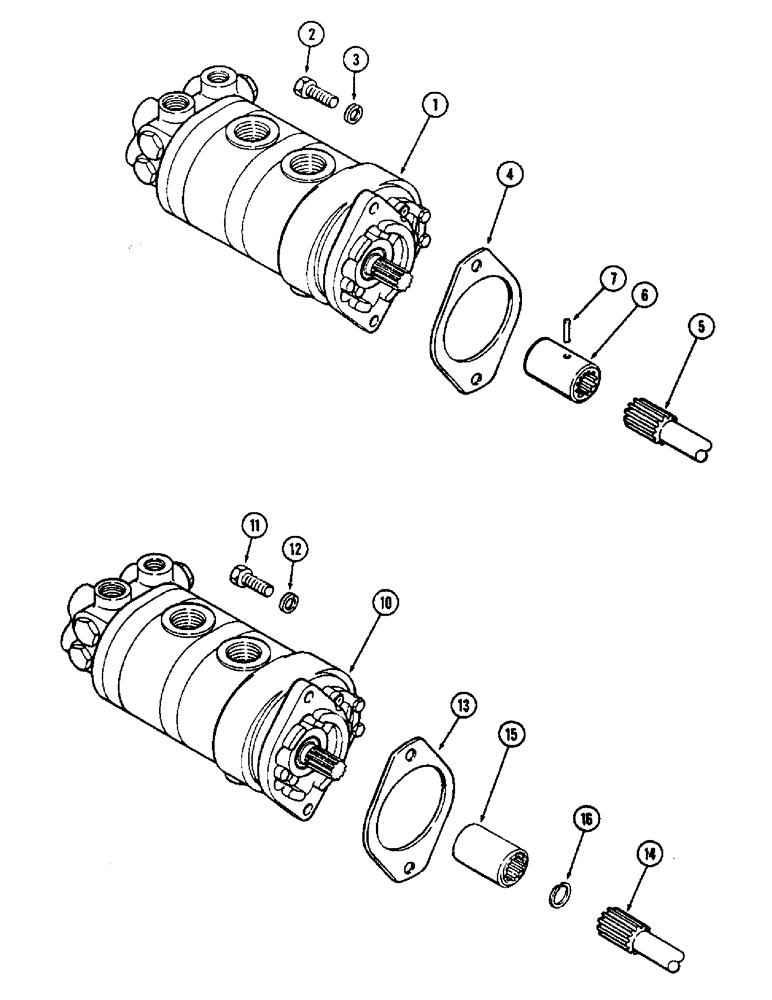

Запчасти Case IH 2470 (308) - HYDRAULIC PUMP MOUNTING AND DRIVE, WITHOUT PTO, TRANSMISSION SERIAL NO. 1457626 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See figure 346)

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

A76477

GASKET

- pump drive

1шт.

5

REF

INSTRUCTION

SHAFT - transmission input and pump drive (See figure 315)

1шт.

6

A144657

COUPLING

COUPLER - pump drive

1шт.

7

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, 1/8" x 1 1/2", Slotted

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See figure 346), prior transmission s/n 1457626

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Prior transmission S/N 1457626 Hex, 1/2"-13 x 1 3/4", G5

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Prior transmission S/N 1457626 1/2"

2шт.

13

A76477

GASKET

- pump drive, prior transmission s/n 1457626

1шт.

14

REF

INSTRUCTION

SHAFT - transmission input and pump drive (See figure 315), prior transmission s/n 1457626

1шт.

15

A144657

COUPLING

COUPLER - pump drive (Replaces A77124), prior transmission s/n 1457626

1шт.

16

A51710

RING, SNAP

RING - snap, coupler, prior transmission s/n 1457626

1шт.
