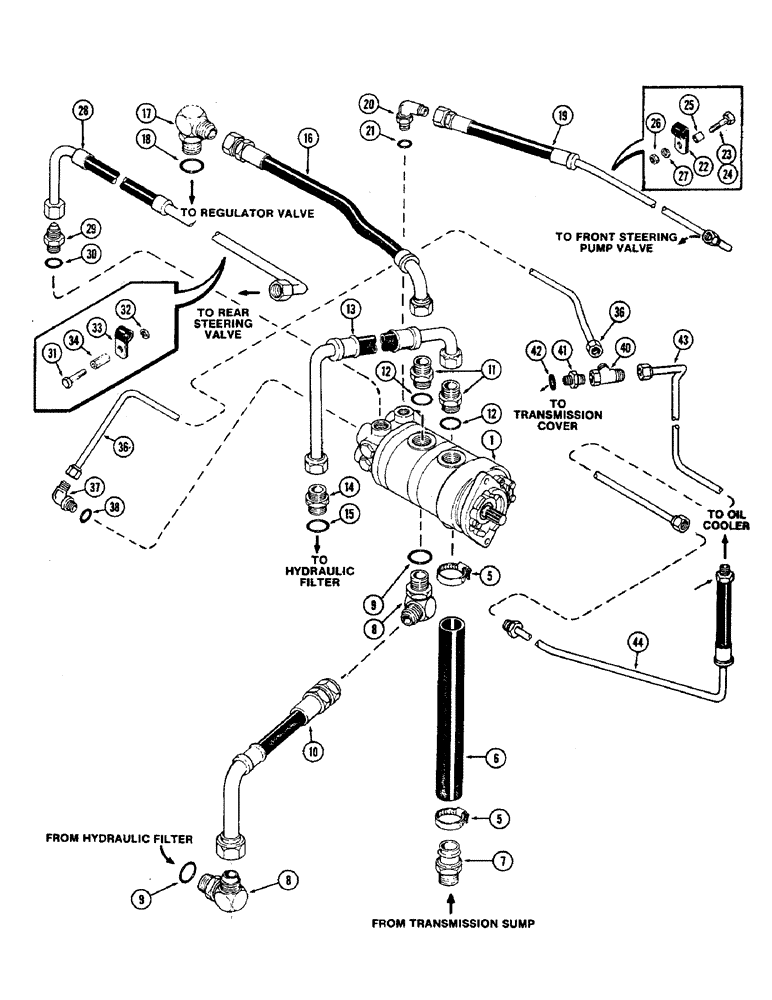

Запчасти Case IH 2470 (304) - HYDRAULIC PUMP AND CIRCUITRY, WITH PTO, PRIOR TO TRANSMISSION SERIAL NO. 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See figure 346)

1шт.

5

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(40.03 to 69.85 mm) #36, 1.81/2.75 Type F Worm

2шт.

6

A76044

HOSE

- suction line 1-1/2" ID x 16-1/2" long (38.1 x 419.1 MM)

1шт.

7

217-158

FITTING,1-1/2" Hose Barb x 1-1/2" Male NPTF

- hose to transmission, 1-1/2" ID hose 1-1/2" PT

1шт.

8

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 9

2шт.

9

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 1/8" (37.30 x 43.65 x 3.17 MM)

1шт.

10

A75502

HOSE

-, Serial Range: filter-pump

1шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 12

2шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

13

A75501

HOSE

-, Serial Range: pump-filter

1шт.

14

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSEMBLY - straight, Includes: Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

16

A77015

HOSE

- pump to pressure regulator valve

1шт.

17

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 18

1шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

19

A138367

HOSE

- pump to front steering valve (Used with and without rear steering) (Replaces A77030)

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 21

1шт.

22

49838

CLAMP

- 1/2" tube

4шт.

23

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8"-16 x 3/4" self-tapping

2шт.

24

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

25

A76093

BUSHING

SPACER - clamp, 13/32" ID x 3/4" OD x 1/2" (10.32 x 19.05 x 12.7 MM)

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

A138373

HOSE

- pressure (Used with rear steering only) (Replaces A77034)

1шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

31

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Used with rear steering only Hex, 3/8"-16 x 2 1/4", G5

2шт.

32

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Used with rear steering only) 3/8"

2шт.

33

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- 3/4" tube (Used with rear steerign only)

2шт.

34

A135623

BUSHING

SPACER - tube (Used with rear steering only) (Replaces A77035)

2шт.

36

A77037

TUBE

- relief valve drain (Used with and without rear steering)

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 38

1шт.

40

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1/2" tube OD 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

41

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSEMBLY - straight, Incl. Ref. 42

1шт.

42

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

43

A77040

TUBE

- oil cooler return

1шт.

44

A77041

HOSE

- oil cooler return

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.3812 MM)

1шт.
