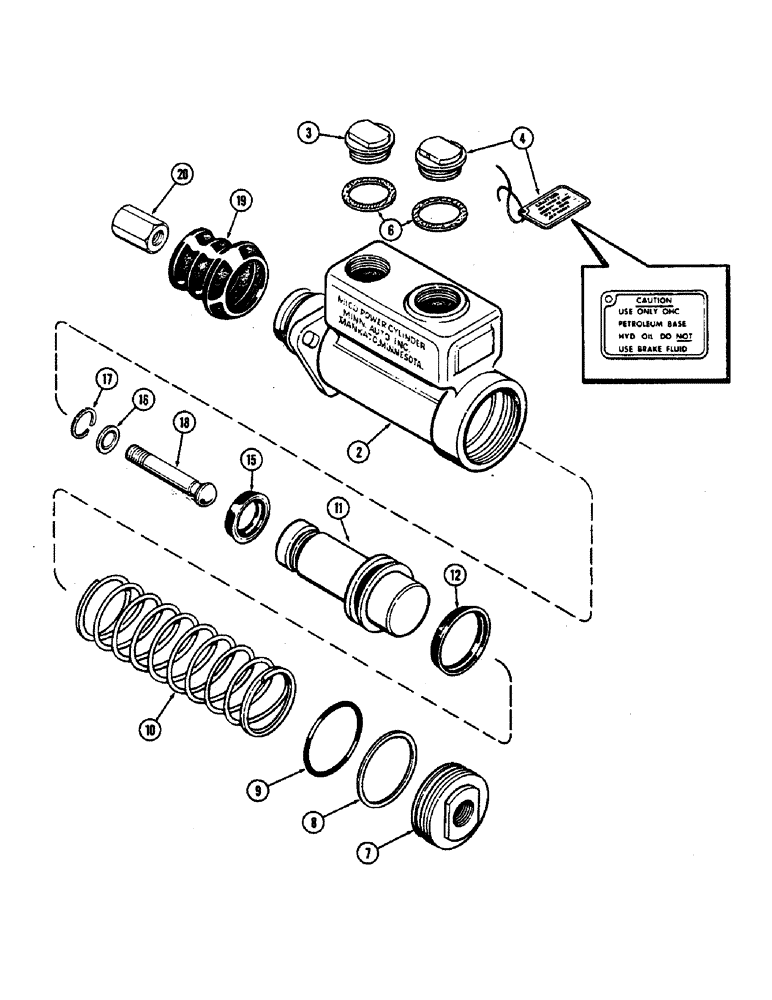

Запчасти Case IH 2470 (270) - MASTER BRAKE CYLINDER ASSEMBLY (07) - BRAKES

A75376

CYLINDER

ASSEMBLY - master brake, Includes: Ref. 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - master brake cylinder (Order A75376)

1шт.

3

A44664

CAP

- master cylinder filler (Solid)

1шт.

4

A44662

CAP

ASSEMBLY - master cylinder filler and breather with tag (Vented)

1шт.

6

L33808

GASKET

- master cylinder breather and filler cap

2шт.

7

A44276

PLUG

ASSEMBLY - end, master cylinder port

1шт.

8

NSS

NOT SOLD SEPARAT

RING - back-up (Order A44278)

1шт.

Part of Master Cylinder Seal Repair Kit P/N A44278.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - sealing, end plug (Order A44278)

1шт.

Part of Master Cylinder Seal Repair Kit P/N A44278.

1шт.

10

NLS

NO LONGER SERVICED

- piston return

1шт.

11

A44887

PISTON

- master cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

CUP - piston seal, primary (Order A44278)

1шт.

Part of Master Cylinder Seal Repair Kit P/N A44278.

1шт.

15

NSS

NOT SOLD SEPARAT

CUP - piston seal, secondary (Order A44278)

1шт.

Part of Master Cylinder Seal Repair Kit P/N A44278.

1шт.

16

A44273

WASHER

- push rod

1шт.

17

A44272

SNAP RING,0.875", Int, #87

Ring, Snap, , push rod 0.875", Int, #87

1шт.

18

A44277

ROD

- push

1шт.

19

NSS

NOT SOLD SEPARAT

BOOT - master cylinder push rod (Order A44278)

1шт.

Part of Master Cylinder Seal Repair Kit P/N A44278.

1шт.

20

A44271

CONNECTOR, ELEC

CONNECTOR - cylinder push, Serial Range: rod-clevis

1шт.

A44278

REPAIR KIT

REPAIR, master, cylinder, seal, Includes: Ref. 8, 9, 12, 15 and 19

1шт.
