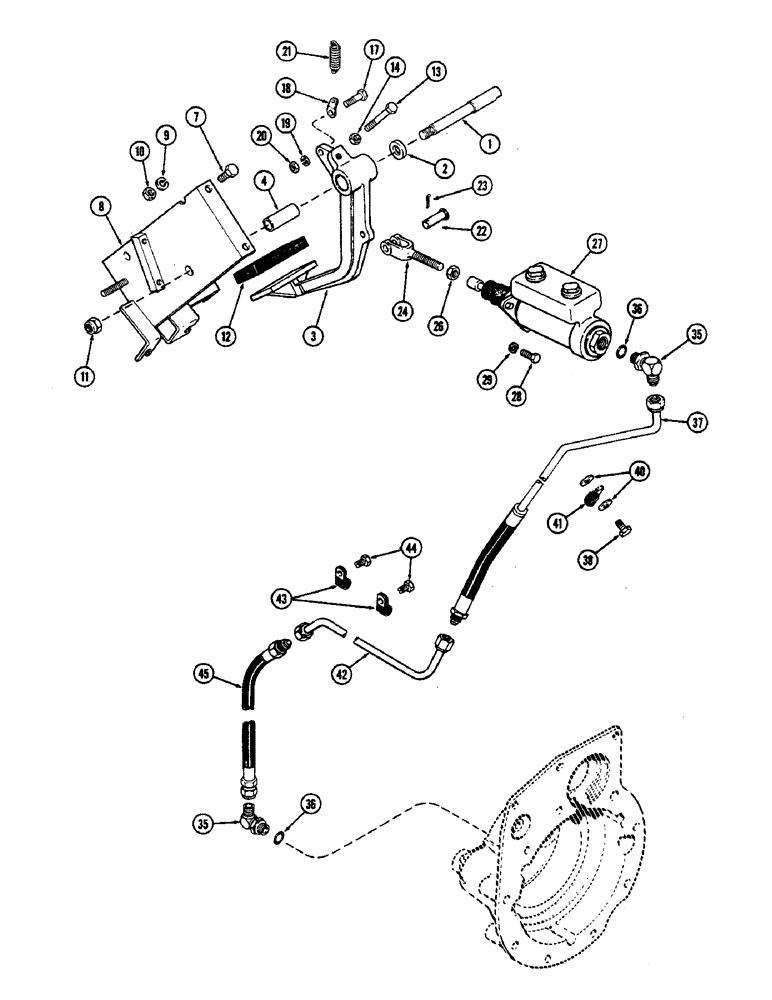

Запчасти Case IH 2470 (268) - BRAKE PEDAL, MASTER CYLINDER AND LINES (07) - BRAKES

1

A75373

SHAFT

- brake pedal

1шт.

2

A75360

SPACER

- pedal shaft

1шт.

3

A76363

PEDAL

ASSEMBLY - brake, Includes: Ref. 4

1шт.

4

A75362

BUSHING

- brake pedal

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

A75366

BRACKET - cockpit

1шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

4шт.

11

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

1шт.

12

F9197

PAD

- pedal

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex., grade 5, pedal return stop

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex., jam

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Clip to pedal Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

18

NLS

NO LONGER SERVICED

- spring (Replaces A26953)

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

1шт.

21

A20093

SPRING

- pedal return

1шт.

22

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

1шт.

23

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

24

A76365

ROD

- master cylinder, 2-1/8" thread length

1шт.

26

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2"-20 NF hex., jam

1шт.

27

A75376

CYLINDER

ASSEMBLY - master (See figure 270)

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

29

92-6

LOCK WASHER,3/8"

3шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 36

2шт.

37

A77027

TUBE

- hydraulic brake

1шт.

38

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8-16 x 3/4" Taptite

1шт.

40

A29277

WASHER

- 13/32 x 1 x 1/8" (10.32 x 25.4 x 3.17 MM)

2шт.

41

49838

CLAMP

- tube

1шт.

42

A138369

TUBE

- hydraulic brake (Replaces A77028)

1шт.

43

49838

CLAMP

- tube

2шт.

44

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8-16 x 3/4" Taptite

2шт.

45

A75775

HOSE

- hydraulic brake

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.
