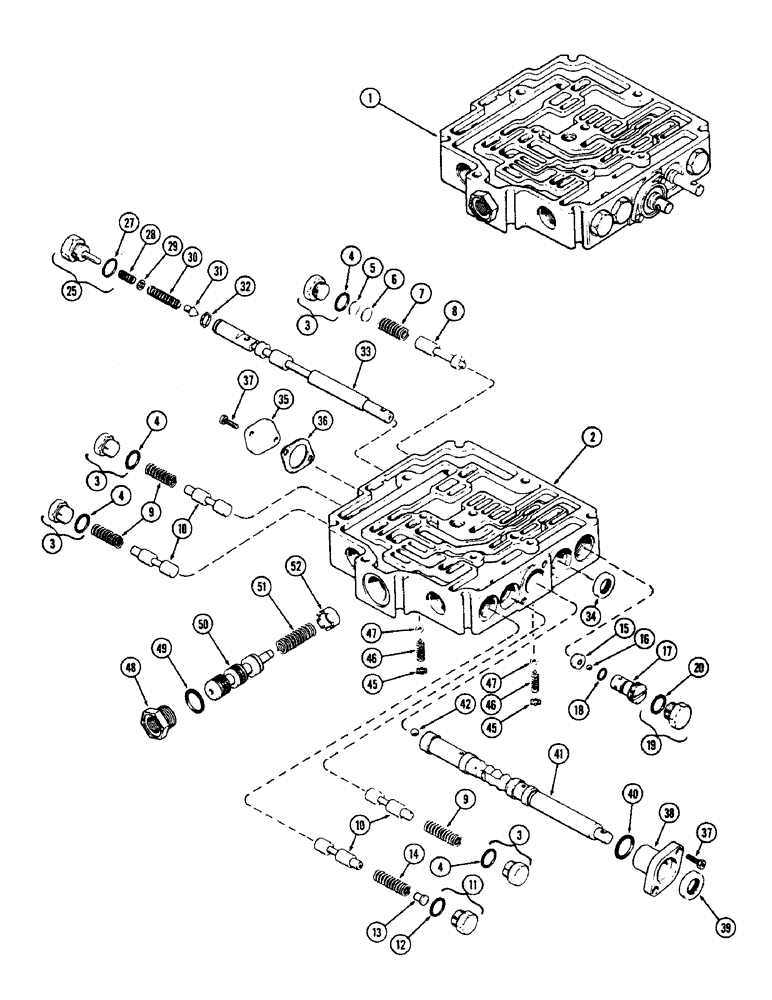

Запчасти Case IH 2470 (300) - TRANSMISSION CONTROL VALVE ASSEMBLY, PRIOR TO TRANSMISSION SERIAL NO. 10064489 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A66707
VALVE
ASSEMBLY - transmission control (Order A148160), Includes: Ref. 2 - 52
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - valve (Order A148160)
1шт.
3
A62564
PLUG
ASSEMBLY - pilot spool and pressure regulator, Includes: Ref. 4
4шт.
5
A37554
SHIM,.0269" Thk
Pressure regulator (0.683 mm) .0269" Thk
1шт.
6
A37555
SHIM,.0120" Thk
Pressure regulator (0.30 mm) .0120" Thk
1шт.
7
A58436
SPRING
- regulator, 1-3/8" free length (34.92 MM)
1шт.
8
A146644
SPOOL
PLUNGER - pressure regulator (Replaces A37551)
1шт.
9
A58271
SPRING
- return, pilot spool, 1-49/64" free length (44.84 MM)
3шт.
10
A146590
SPOOL
- pilot (Replaces A59063)
4шт.
11
A62641
PLUG
ASSEMBLY - pilot spool bore, Includes: Ref. 12
1шт.
13
A62640
STOP
- pilot spool
1шт.
14
A66692
SPRING
- return, pilot spool, 1-23/32" free length (43.65 MM)
1шт.
15
A58441
SEAT
- shuttle valve ball
1шт.
16
211-7
BALL,1/4" Dia
(6.35 mm) Chrome steel, shuttle valve 1/4" Dia
1шт.
17
A58440
SLEEVE
- shuttle valve
1шт.
18
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
- 3/32 x 1/2 x 11/16" (2.38 x 12.7 x 17.46 MM) Shuttle valve sleeve
1шт.
Part of seal kit P/N A42885.
1шт.
19
86512512
PLUG,7/8" - 14 ORB
Assy, Shuttle valve bore, Incl. Ref. 20 Hex Hd, 7/8"-14 ORB
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- 3/4 x 5/8 x 3/32" (19.05 x 15.87 x 2.38 MM)
1шт.
Part of seal kit P/N A42885.
1шт.
25
A61985
PLUG
- modulator, Includes: Ref. 27
1шт.
27
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- plug, 3/4 x 5/8 x 3/32" (19.05 x 15.87 x 2.38 MM)
1шт.
Part of seal kit P/N A42885.
1шт.
28
A61988
SPRING
- clutch modulator, secondary 1-43/64" free length
1шт.
29
A61989
WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk
- spring guide
1шт.
A60155
SPRING
POINT AND SPRING ASSEMBLY - clutch modulator, Includes: Ref. 30 and 31
1шт.
30
NSS
NOT SOLD SEPARAT
SPRING - modulator, primary, 1-39/64" free length (40.88 MM)
1шт.
31
NSS
NOT SOLD SEPARAT
POINT - modulator
1шт.
32
G46176
SNAP RING,#56, Ext
Ring, Snap, , clutch control spool #56, Ext
1шт.
33
A62636
SPOOL
- clutch control
1шт.
34
A37558
SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk
- clutch control spool
1шт.
Part of seal kit P/N A42885.
1шт.
35
A58429
COVER
- selector, spool bore
1шт.
36
A66110
GASKET
- selector, bore cover
1шт.
Part of seal kit P/N A42885.
1шт.
37
61-412
HEX SOC SCREW,1/4"-20 x 3/4"
- cap, 1/4 x 3/4" NC hex. socket head
4шт.
38
A62839
SLEEVE
- selector spool
1шт.
39
A50421
OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk
- oil, selector spool (Replaces A58428)
1шт.
Part of seal kit P/N A42885.
1шт.
40
A59066
O-RING,1.239" ID x 1.379" OD
- 1-1/4 x 1-3/16 x 1/16" bore cover (31.75 x 30.16 x 1.58 MM)
1шт.
Part of seal kit P/N A42885.
1шт.
41
A60550
SPOOL
ASSEMBLY - selector, Includes: Ref. 42
1шт.
42
NSS
NOT SOLD SEPARAT
BALL - 9/32" diameter (7.14 MM) Chrome steel (Order A60550)
1шт.
45
A58439
RETAINER
- retard check spring
2шт.
46
A58438
SPRING
- retard check, 15/16" free length (23.81 MM)
2шт.
47
211-8
BALL,9/32" Dia
(7.14 mm) chrome steel 9/32" Dia
2шт.
48
A63293
BUSHING
- reducer, O-ring boss to reverse lock out
1шт.
49
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- bushing, 59/64 x 3/4 x 7/64" (23.41 x 19.05 x 2.77 MM)
1шт.
Part of seal kit P/N A42885.
1шт.
50
A146637
SPOOL
- reverse lock out (Replaces A61032)
1шт.
51
A58432
SPRING
- reverse lock out
1шт.
52
A61033
SLEEVE
- stop, reverse lock out spool (Replaces A62838)
1шт.
A42885
SEAL KIT
seal, Includes: Ref. 4, 12, 18, 20, 27, 34, 36, 39, 40 and 49
1шт.
4
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
plug, 41/64 x 1/2 x 5/64" (16.27 x 12.7 x 1.98 MM)
1шт.
Part of seal kit P/N A42885.
1шт.
12
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 41/64 x 1/2 x 5/64" (16.27 x 12.7 x 1.98 MM)
1шт.
Part of seal kit P/N A42885.
1шт.
Выбрано товаров: 57
