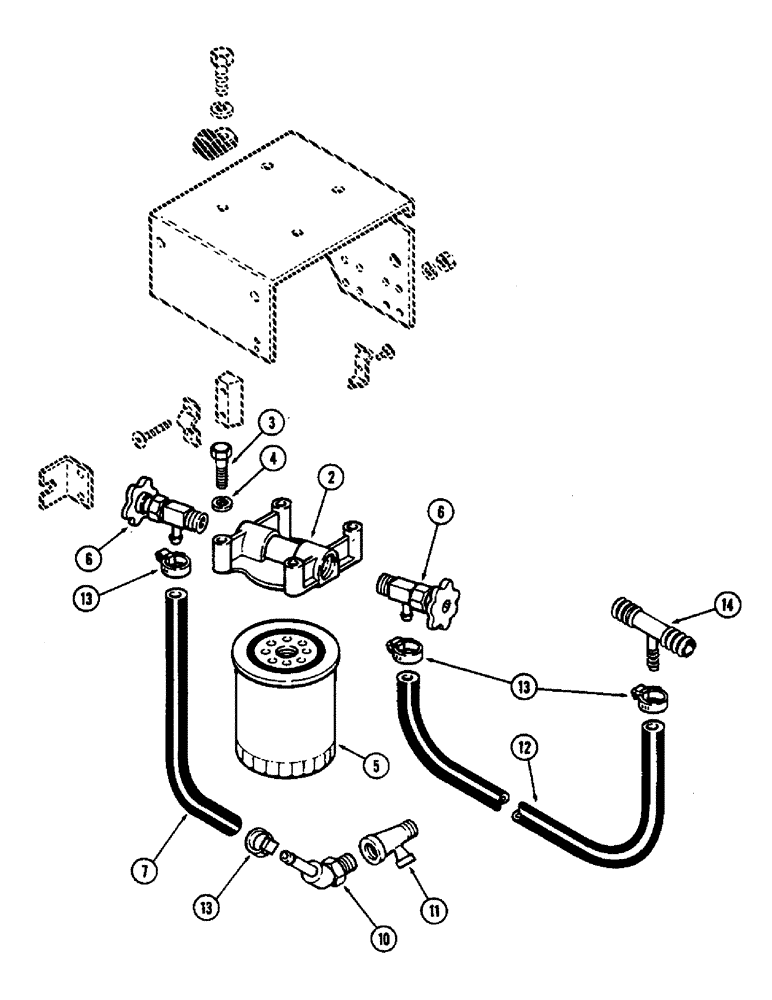

Запчасти Case IH 2470 (010) - WATER FILTER KIT, 504BDT DIESEL ENGINE (02) - ENGINE

A46400

KIT

- water filter and conditioner, Includes: Ref. 2 - 14

1шт.

2

A152821

HEAD

- filter and valve

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex.

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

A151931

FILTER

ELEMENT - water filter

1шт.

6

A154051

COCK, DRAIN

VALVE - water

2шт.

7

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block

1шт.

10

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- hose, 45 degree

1шт.

11

221-1691

TEE,Street, 1/4" NPT

CONNECTOR - branch (In block)

1шт.

12

A154053

HEATER HOSE,0.38" ID x 11.20", SAE 20R3

- Valve to heater 0.38" ID x 11.20", SAE 20R3

1шт.

13

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/6" (14.29 to 26.99 MM)

4шт.

14

A154014

CONNECTOR, ELEC

CONNECTOR - banch, heater hose split

1шт.
