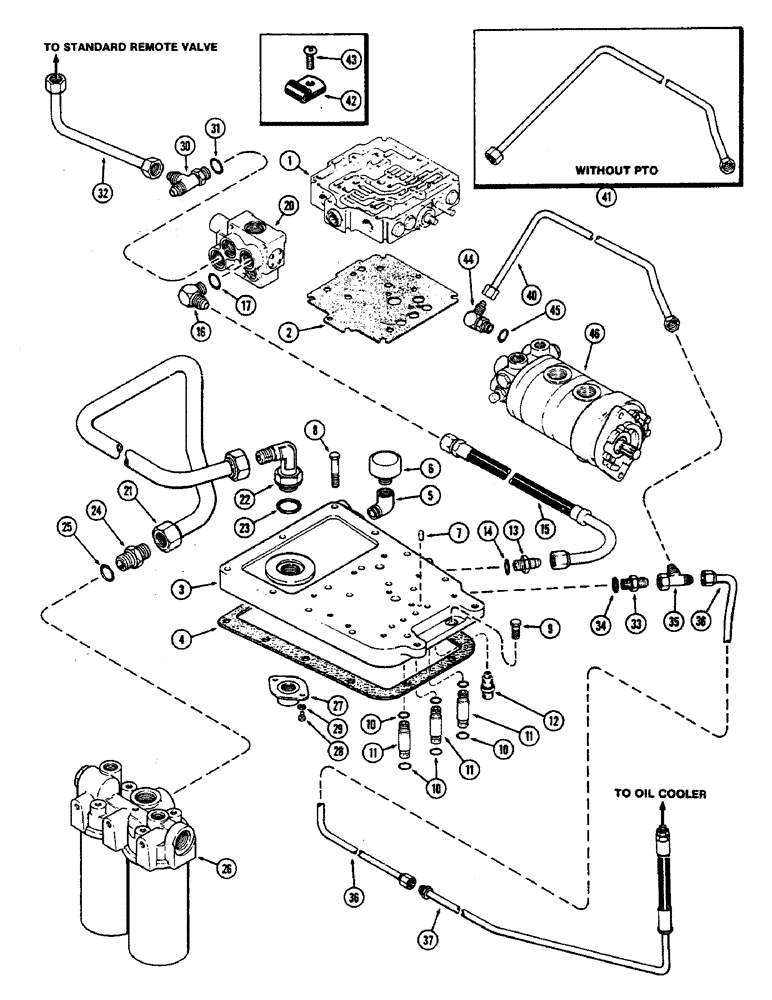

Запчасти Case IH 2470 (298) - TRANSMISSION TOP COVER AND LINES, TRANSMISSION SERIAL NO. 10025257 AND AFTER (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figure 302)

1шт.

2

A155116

GASKET

- valve to transmission top cover (Replaces A66735)

1шт.

3

A139723

COVER

- transmission, top

1шт.

4

A62114

GASKET,0.79mm Thk

- transmission top, Serial Range: cover-transmission

1шт.

5

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

6

A75179

BREATHER

VENT - breather, transmission top cover

1шт.

7

D24005

PIN

- dowel, transmission cover valve body

1шт.

8

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex., grade 5

10шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil distributor hole (See kit figure 224)

6шт.

11

A76120

TUBE

- oil distributor

3шт.

12

A60890

VALVE

- relief, lube oil (See figure 352)

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

15

A77019

HOSE

- pressure regulator, Serial Range: valve-cover

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 17 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See figure 352)

1шт.

21

A139715

TUBE

-, Serial Range: cover-filter

1шт.

22

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree adjustable, Includes: Ref. 23

1шт.

23

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-31/32 x 1/8" (43.65 x 50 x 3.17 MM)

1шт.

24

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. 25

1шт.

25

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-31/32 x 1/8" (43.65 x 50 x 3.17 MM)

1шт.

26

REF

INSTRUCTION

FILTER ASSEMBLY - (See figure 320)

1шт.

27

A63343

REGULATOR

- filter pressure

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSEMBLY - adjustable, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

32

A77017

TUBE

- return, regulator valve to remote valve

1шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

35

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1/2" tube 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

36

A77040

TUBE

- oil cooler return

1шт.

37

A77041

HOSE

- oil cooler return

1шт.

40

A77037

TUBE

- relief valve drain (With PTO)

1шт.

41

A77036

TUBE

- relief valve drain (Without PTO)

1шт.

42

49838

CLAMP

- 1/2" tube

2шт.

43

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - self-tapping, 3/8 x 3/4"

1шт.

44

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, Includes: Ref. 45

1шт.

46

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See figure 346)

1шт.

45

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.
