(294) - TRANSMISSION CONTROL VALVE, COVER AND LINES, WITH AND WITHOUT PTO

Запчасти Case IH 2470 (294) - TRANSMISSION CONTROL VALVE, COVER AND LINES, WITH AND WITHOUT PTO (06) - POWER TRAIN

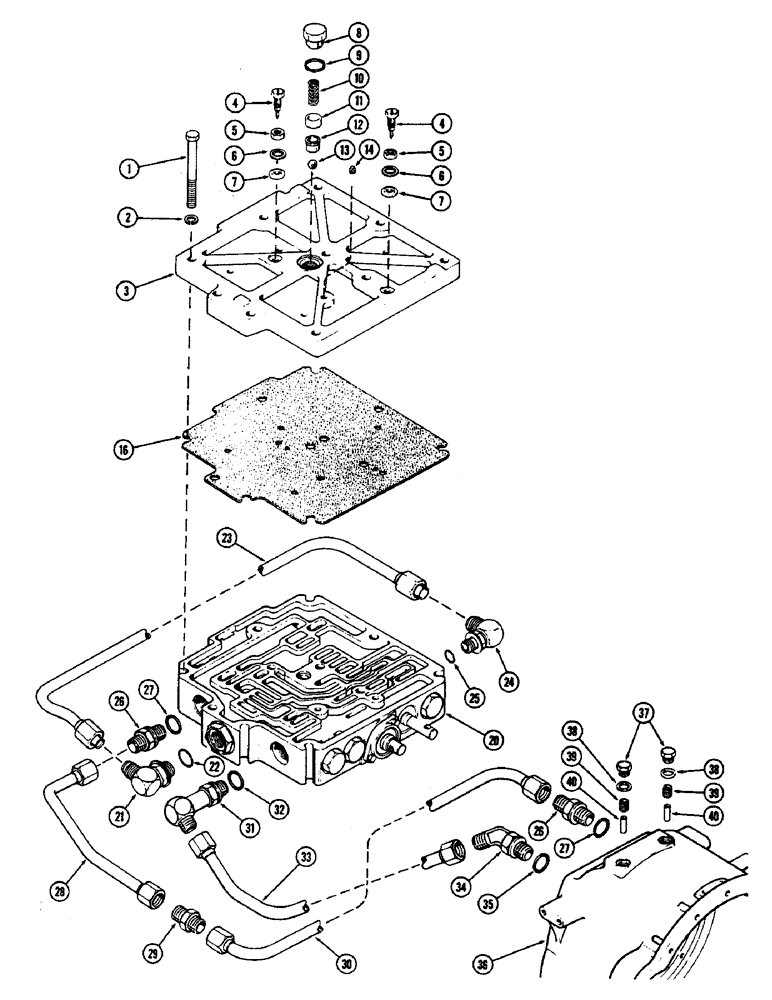

Схема запчастей Case IH 2470 - (294) - TRANSMISSION CONTROL VALVE, COVER AND LINES, WITH AND WITHOUT PTO (06) - POWER TRAIN
39
9
12
22
14
20
8
6
10
5
36
30
24
40
35
1
21
13
7
29
37
31
4
3
4
11
27
6
2
32
26
40
23
26
34
27
16
7
38
28
38
39
33
5
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" NC hex., grade 5

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A151421

COVER

- transmission control valve (Transmission serial no. 10121595 and after)

1шт.

3

A64321

COVER

- transmission control valve (Prior to transmission serial no. 10121595)

1шт.

4

A136916

NEEDLE

- retard orifice (Replaces A59073)

2шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" NF hex, jam

2шт.

6

122-13

GROMMET

BURR - 1/4" steel riveting

2шт.

7

A59074

SEAL

- thread

2шт.

8

A62588

PLUG

- detent

1шт.

10

A61696

SPRING

- detent ball

1шт.

11

A62107

SPACER

- detent

1шт.

12

A59062

SLEEVE

- detent

1шт.

13

211-12

BALL,7/16 Dia

- 7/16" diameter (11.11 MM)

1шт.

14

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" square head

5шт.

16

A66734

GASKET

- valve to valve cover (Used with A64321 cover)

1шт.

16

A157324

GASKET

- valve to valve cover (Used with A151421 cover)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figure 300 and 302)

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 1/2" tube x 3/4"-16 thread, 90 degree adjustable, Includes: Ref. 22

1шт.

23

A63294

TUBE

- pilot, reverse lock-out

1шт.

24

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSEMBLY - 1/2" tube x 9/16"-18 thread, 90 degree adjustable, Includes: Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.90 x 9.52 x 1.98 mm)

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 27

2шт.

28

A75326

TUBE

- transmission control valve to clutch housing

1шт.

29

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- for 1/2" tube OD

1шт.

30

A75325

TUBE

- transmission control valve to clutch housing

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSEMBLY - 90 degree, 1/2" tube, Includes: Ref. 32

1шт.

33

A75996

TUBE

- transmission control valve to clutch housing

1шт.

34

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 45 degrees adjustable, Incl. Ref 35

1шт.

36

REF

INSTRUCTION

HOUSING - clutch (See figure 198)

1шт.

37

214389

PLUG,3/4" - 16 ORB

Assy, Includes Ref. 38 Hex Hd, 3/4"-16 ORB

2шт.

38

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 1/16 x 3/32" (12.7 x 17.41 x 2.38 MM)

1шт.

39

A58050

PLUG

- C1 and C4 clutch oil fill tube

2шт.

40

A58049

TUBE

- C1 and C4 clutch oil fill

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.8 x 1.58 MM)

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.
