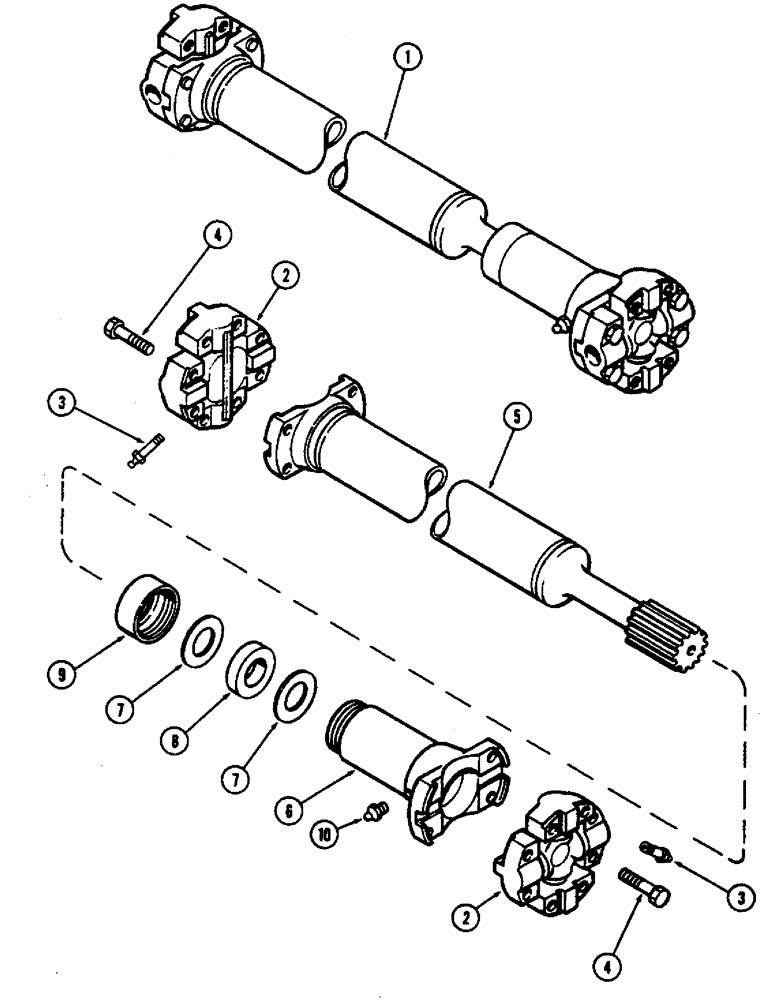

Запчасти Case IH 2470 (292) - PTO DRIVE SHAFT ASSEMBLY (06) - POWER TRAIN

1

A75223

SHAFT

ASSEMBLY - PTO drive, Includes: Ref. 2 - 10

1шт.

2

A45595

SPIDER ,U-JOINT

KIT - spider and bearing (Replaces A42982), Includes: Ref. 3 and 4

2шт.

3

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lube, 1/4" straight

1шт.

4

A17298

BOLT,Hex, 3/8" x 1 11/16"

- spider to yoke, 3/8 x 2-1/4" NC hex.

16шт.

5

A42979

TUBE

- drive shaft

1шт.

6

A42980

YOKE

ASSEMBLY - slip, drive shaft, Includes: Ref. 7 - 10

1шт.

7

A18387

WASHER

- felt, slip yoke dust retainer

2шт.

8

A18390

WASHER

SEAL - felt, slip yoke dust shield

1шт.

9

A18388

CAP

- retainer, slip yoke dust shield

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" straight

1шт.
