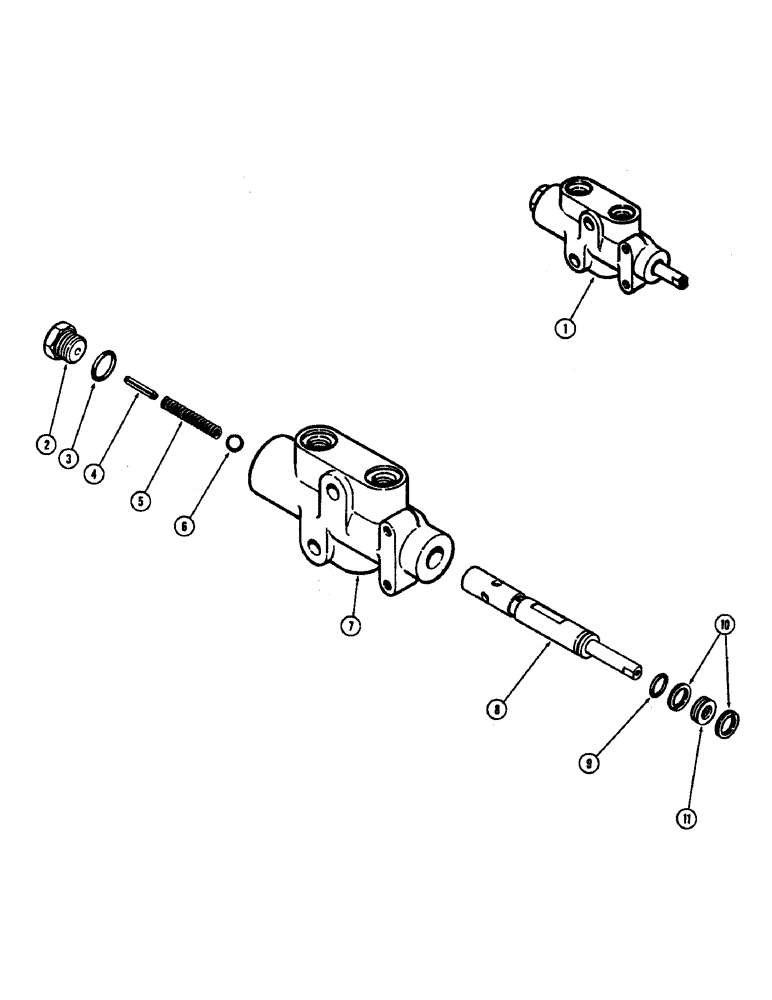

Запчасти Case IH 2470 (290) - PTO CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

1

A76250

VALVE

ASSEMBLY - PTO control, Includes: Ref. 2 - 11

1шт.

2

A60282

PLUG

ASSEMBLY - PTO spool, Includes: Ref. 3 and 4

1шт.

4

138-2028

PIN,3/16" x 1 1/4", Coiled

- roll, 3/16 x 1-1/2" Spirol

1шт.

5

A60281

SPRING

- modulating spool, 2-1/8" free length (53.97 MM)

1шт.

6

211-8

BALL,9/32" Dia

- steel (7.14 mm) 9/32" Dia

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve (Order A76250)

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - PTO clutch modulating (Order A76250)

1шт.

9

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- 7/16 x 5/8 x 3/32" (11.11 x 15.87 x 2.38 MM)

1шт.

10

A60280

SNAP RING,#68, .743", Int, Spiral

RING - retaining, spool washer

2шт.

11

A60279

WASHER

- weather protection, spool

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.
