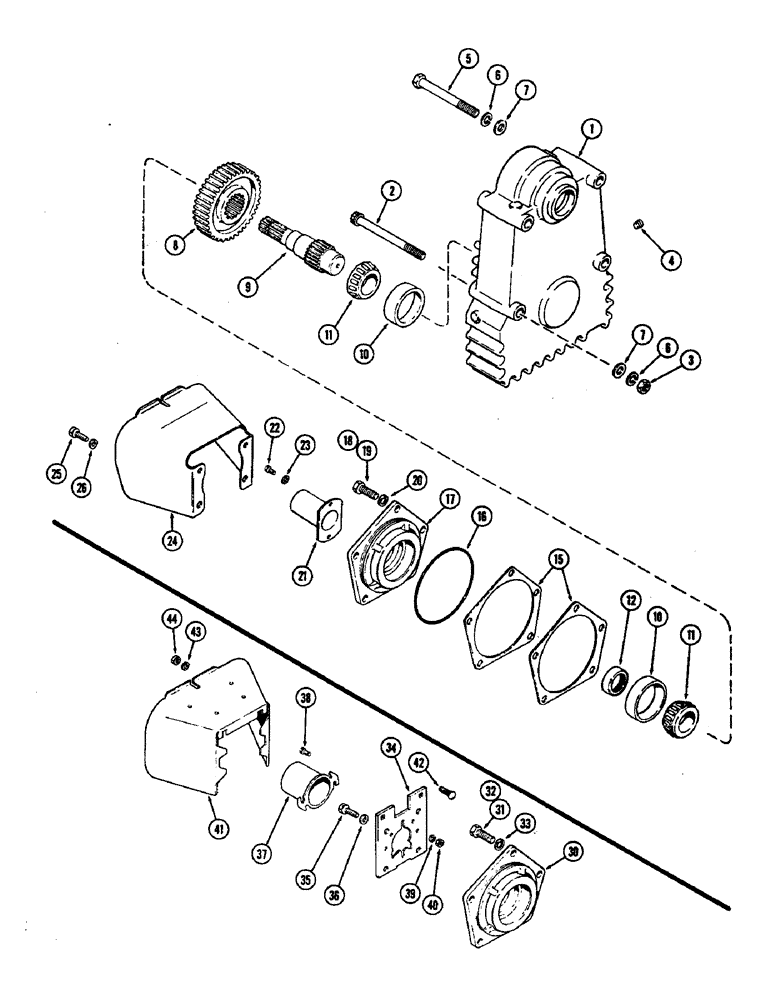

Запчасти Case IH 2470 (280) - PTO DROP BOX, OUTPUT SHAFT (06) - POWER TRAIN

1

A146542

HOUSING

- PTO drop box (Replaces A76089)

1шт.

2

166-149

SCREW,Flg, 3/4" - 10 x 8", Gr 8

BOLT - 3/4 x 8" NC 12 point ferry head, grade 8

2шт.

3

25-1012

NUT,3/4"-10, G5

2шт.

4

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" PT hex. socket head

1шт.

5

15-12112

BOLT (SPREADER),Hex, 3/4" - 10 x 7", Gr 5

BOLT - 3/4 x 7" NC hex. head, grade 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

A27449

WASHER

- mounting bolt, 25/32 x 1-9/16 x 1/4" (19.84 x 39.69 x 6.35 MM)

4шт.

8

A75216

GEAR

- PTO output, 1-11/16" wide (42.86 MM) (Order A76563)

1шт.

8

A76563

GEAR

- PTO output, 1-13/16" wide (46.04 MM) (Replaces A75216)

1шт.

9

A75217

SHAFT

- PTO output

1шт.

10

A75218

BEARING CUP,4.1339" OD x 1.1417"

CUP - bearing, PTO output shaft

2шт.

11

A75219

ROLLER BEARING,1.9685" ID x 1.4173"

CONE - bearing, PTO output shaft

2шт.

12

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

- oil PTO output shaft (Replaces A57708)

1шт.

15

A75220

SHIM,.005" Thk

PTO output shaft brg. (0.12 mm) .005" Thk

1шт.

15

A75221

SHIM,.007" Thk

PTO output shaft brg (0.17 mm) .007" Thk

1шт.

16

R21494

O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro

- PTO output shaft bearing carrier

1шт.

17

A150048

CARRIER

- bearing, PTO output shaft, Start Serial: 8255020

1шт.

18

113-2622

BOLT

- 5/8 x 1-1/2" NC hex., Polylock, grade 5

1шт.

19

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

21

A58238

GUARD

- PTO shaft, Start Serial: 8255020

1шт.

22

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

A62391

GUARD

SHIELD - PTO, Start Serial: 8255020

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

4шт.

30

A75222

CARRIER - bearing, PTO output shaft, Serial Range: -8255020

1шт.

31

113-2622

BOLT

- 5/8 x 1-1/2" NC hex., with Poly-lok, grade 5

1шт.

32

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

34

A26878

PLATE - mounting, universal PTO guard, Serial Range: -8255020

1шт.

35

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/4" NC hex., grade 5

4шт.

36

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

37

A20483

GUARD

- PTO shaft

1шт.

38

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

2шт.

40

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

2шт.

41

A27335

GUARD

SHIELD - PTO, Serial Range: -8255020

1шт.

42

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

43

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
