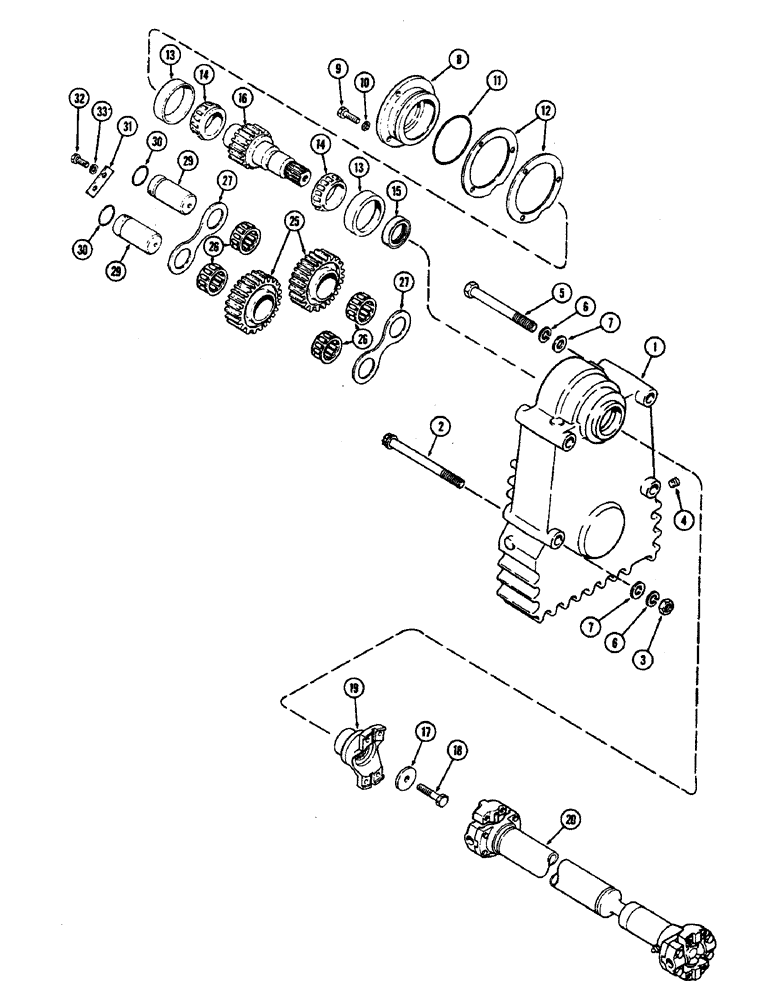

Запчасти Case IH 2470 (278) - PTO DROP BOX, INPUT AND IDLER (06) - POWER TRAIN

1

A146542

HOUSING

- PTO drop box (Replaces A76089)

1шт.

2

166-149

SCREW,Flg, 3/4" - 10 x 8", Gr 8

BOLT - 3/4 x 8" NC 12 point Ferry head cap, grade 8

2шт.

3

25-1012

NUT,3/4"-10, G5

(Lower mounting bolts) 3/4"-10, G5

2шт.

4

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" PT hex. socket head

1шт.

5

15-12112

BOLT (SPREADER),Hex, 3/4" - 10 x 7", Gr 5

BOLT - 3/4 x 7" NC hex. head, grade 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

7

A27449

WASHER

- drop box mounting bolt

4шт.

8

A75209

CARRIER

- PTO input pinion bearing

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- PTO input bearing carrier

1шт.

12

A75212

SHIM,.005" Thk

PTO input pinion brg. (0.127 mm) .005" Thk

1шт.

12

A75213

SHIM,.007" Thk

PTO input pinion brg. (0.177 mm) .007" Thk

1шт.

13

A75210

BEARING CUP,3.5433" OD x 0.9055"

CUP - bearing, PTO input pinion

2шт.

14

A75211

ROLLER BEARING,1.9685" ID x 1.1024"

CONE - bearing, PTO, input pinion

2шт.

15

H749218

OIL SEAL,44.45mm ID x 63.65mm OD x 7.95mm Thk

- oil, PTO input shaft (Replaces A57708)

1шт.

16

A138562

GEAR

PINION - input, spur gear, 1-3/4" wide (44.45 MM) (Replaces A75208)

1шт.

16

A75208

PINION

- input, spur gear, 1-1/2" wide (38.1 MM) (Order A138562)

1шт.

17

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- PTO input pinion yoke, 17/32 x 2 x 3/8" (13.49 x 50.8 x 9.52 MM)

1шт.

18

113-2436

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" NC hex., Jay Lock, grade 5 (Yoke to shaft)

1шт.

19

A75204

YOKE

- PTO input pinion

1шт.

20

REF

INSTRUCTION

SHAFT ASSEMBLY - PTO drive (See figure 292)

1шт.

25

A76562

GEAR

- idler, 1-3/4" wide (44.45 MM) (Use with A138562)

2шт.

25

A63280

GEAR

- idler, 1-1/2" wide (38.1 MM) (Use with A75208)

2шт.

26

A63282

ROLLER BEARING,1.75" ID x 2.1268" OD x 1"

BEARING - needle, PTO idler gear

4шт.

27

A63281

WASHER

- thrust, PTO idler gear

2шт.

29

A75214

SHAFT

- PTO idler shaft

2шт.

30

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- PTO idler shaft

2шт.

31

A75215

PLATE

- lock, PTO idler shaft

1шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.
