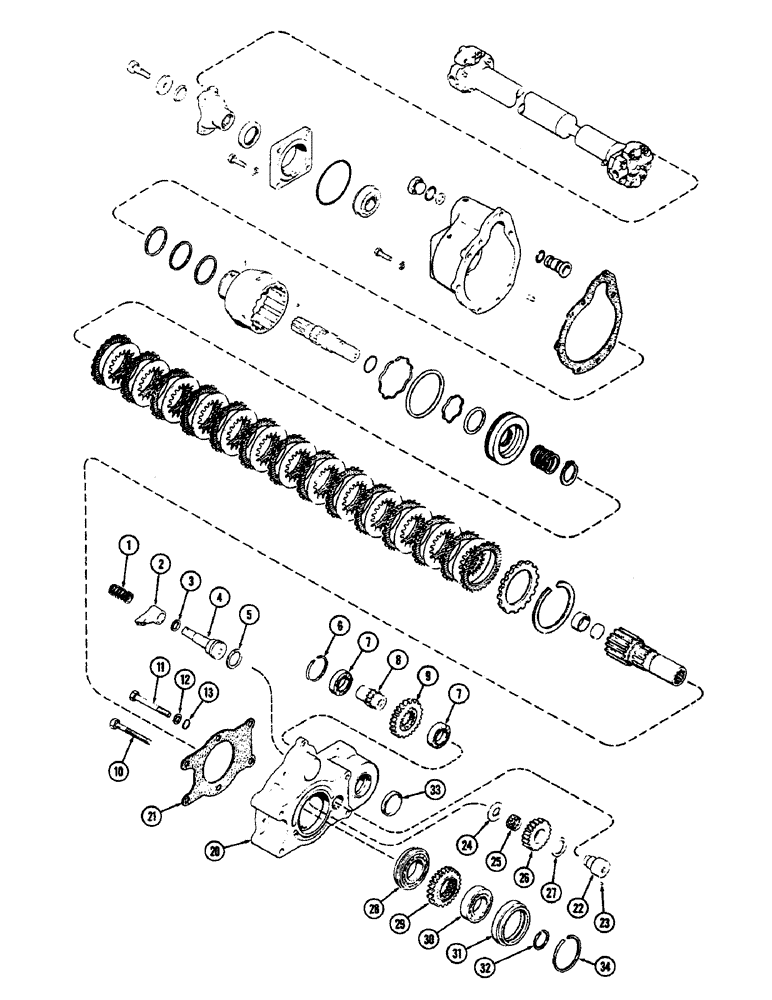

Запчасти Case IH 2470 (276) - PTO BRAKE AND HYDRAULIC PUMP DRIVE (06) - POWER TRAIN

1

A76338

SPRING

- PTO brake return, 1-5/8" free length (41.27 MM)

1шт.

2

A142994

SHOE

ASSEMBLY - PTO brake, bonded (Replaces A76387)

1шт.

3

A76340

SEALING RING

- 3/4" OD (19.05 MM)

1шт.

4

A76339

PISTON

- PTO brake

1шт.

5

A58989

RING

SEAL - 1-3/4" OD (44.09 MM)

1шт.

6

A27414

RING

- snap, hydraulic pump drive coupling bearing

1шт.

7

A150525

BALL BEARING,1.5748" ID x 2.6772" OD x 0.5906"

BEARING - hydraulic pump drive coupling (Replaces A75193)

2шт.

8

A75192

COUPLING, BREAK AWAY

COUPLING - hydraulic pump drive

1шт.

9

A75194

GEAR

- driven, hydraulic pump drive (30 external/27 internal teeth)

1шт.

10

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

11

A75184

BOLT

- pump drive housing to transmission case

2шт.

12

A75185

WASHER

- sealing, pump drive housing bolt, 11/16 x 1 x 1/16" (17.46 x 25.4 x 1.59 MM)

2шт.

13

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- pump drive housing bolt, 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.59 MM)

2шт.

20

A76553

HOUSING

- hydraulic pump drive (Order A142928 housing and 221-843 plug)

1шт.

21

A75183

GASKET

- pump drive housing

1шт.

22

A76554

SHAFT

- idler, hydraulic pump drive

1шт.

23

211-7

BALL,1/4" Dia

- retainer, hydraulic pump drive idler shaft (6.35 mm) 1/4" Dia

1шт.

24

A76360

WASHER

- thrust, 1 x 2 x 3/32" (25.4 x 50.8 x 2.38 MM)

1шт.

25

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

- needle, hydraulic pump drive idler gear

1шт.

26

A76555

GEAR

- idler, hydraulic pump drive

1шт.

27

A76556

WASHER

- thrust, 1-1/4 x 2 x 3/32" (31.75 x 50.8 x 2.38 MM)

1шт.

28

A150524

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - input hsaft, rear, 2-11/64 x 3-15/16 x 53/64" (55.16 x 100 x 21.03 MM) (Replaces A75189)

1шт.

29

A75188

GEAR

- hydraulic pump drive, 30 external, and 33 internal teeth

1шт.

30

A150523

BALL BEARING,1.9685" ID x 3.5433" OD x 0.7874"

BEARING - input shaft, frot, 1-31/32 x 3-35/64 x 25/32" (50 x 41.67 x 19.84 MM) (Replaces A31326)

1шт.

31

A75187

RING

- pilot, input shaft bearing

1шт.

32

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, front bearing input shaft

1шт.

33

A24361

PLUG

- cup, hydraulic pump drive housing

1шт.

34

G46143

RING

- snap, front bearing to pilot ring

1шт.
