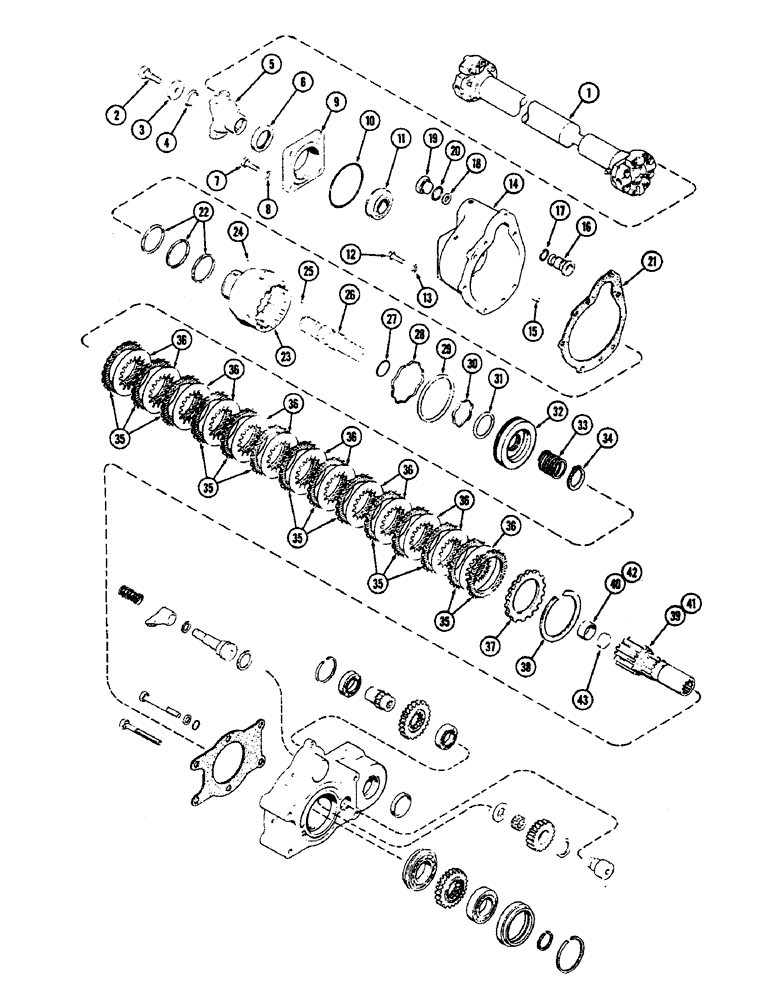

Запчасти Case IH 2470 (274) - PTO INPUT AND OUTPUT SHAFTS AND CLUTCH (06) - POWER TRAIN

1

A75223

SHAFT

ASSEMBLY - PTO drive (See figure 292)

1шт.

2

113-2405

SCREW

BOLT - output shaft yoke, 1/2 x 2" NC hex., with Jaylock, grade 5

1шт.

3

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- PTO cluth output shaft, yoke, 17/32 x 2 x 3/8" (13.49 x 50.8 x 9.52 MM)

1шт.

4

A75205

SEALING WASHER

- PTO clutch output shaft yoke 1-13/32 x 1-39/64 x 19/64" (35.71 x 40.87 x 7.54 MM)

1шт.

5

A75204

YOKE

- PTO clutch output shaft

1шт.

6

A76014

OIL SEAL

- oil, PTO housing cap, 2-1/8 x 2-7/8 x 7/16" (53.97 x 73.02 x 11.11 MM)

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex., grade 5

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A152916

BEARING CAP

CAP - PTO clutch housing (Replaces A75203)

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- sealing, PTO clutch housing cap, 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.65 x 3.17 MM)

1шт.

11

G13606

BALL BEARING

BEARING - PTO clutch output shaft

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex., grade 5

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

A76398

HOUSING

- PTO clutch

1шт.

15

A8134

PIN

DOWEL - PTO clutch housing, 3/8 x 3/4" (9.52 x 19.05 MM)

2шт.

16

A76399

SLEEVE

- PTO brake piston

1шт.

17

A25590

O-RING,15" ID x 1 1" OD x 3/32"

- 1-1/8 x 15/16 x 3/32" (28.57 x 23.81 x 2.38 MM)

1шт.

18

A64303

WASHER

SHIM - adjusting, 1-1/16 x 41/64 x 1/16" (26.98 x 16.27 x 1.58 MM)

1шт.

19

218-5159

PLUG,1-3/16" - 12 ORB

ASSEMBLY - 7/8" tube OD (22.23 MM), Includes: Ref. 20

1шт.

20

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 1/8" (26.59 x 32.54 x 3.17 MM)

1шт.

21

A75196

GASKET

- PTO clutch housing

1шт.

22

A58384

RING

- seal, PTO clutch carrier, 3-3/16" OD x 3/32" width (80.96 x 2.38 MM)

3шт.

23

A77219

CARRIER

ASSEMBLY - PTO cluch piston, Includes: Ref. 24 and 25

1шт.

24

138-2044

PIN,1/16" x 1/2", Coiled

- 1/16 x 1/2" Spirol

1шт.

25

211-6

BALL,7/32" Dia

steel (5.56 mm) 7/32" Dia

1шт.

26

A136298

SHAFT

- PTO output

1шт.

27

L13008

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- PTO clutch carrier, 1-5/8 x 1-7/8 x 1/8" (41.27 x 47.62 x 3.17 MM)

1шт.

28

A59012

SPRING

- PTO clutch piston seal

1шт.

29

A59011

RING

SEAL - PTO clutch piston, external, 4-3/4" OD (119.21 MM)

1шт.

30

A63259

SPRING

- PTO clutch piston seal

1шт.

31

A63258

SEAL

- PTO clutch piston, internal

1шт.

32

A63257

PISTON

- PTO clutch

1шт.

33

A63260

SPRING

- return, PTO clutch piston, 1-3/4" free length (44.45 MM)

1шт.

34

T37909

SNAP RING,#150, Ext

Ring, Snap, , PTO clutch piston return spring #150, Ext

1шт.

35

A66364

PLATE

- sintered, PTO clutch

14шт.

36

A66365

PLATE

- steel, PTO clutch

13шт.

37

A63261

PLATE

- back-up, PTO clutch plate

1шт.

38

A63262

RING

- snap, PTO clutch back-up plate

1шт.

39

A140190

SHAFT

- input, pump drive and PTO (Transmission serial no. 2740721 and after)

1шт.

40

A138866

BUSHING

- shaft, 1-21/32" OD x 1" wide (42.06 x 25.4 MM) (Transmission serial no. 2470721 and after)

1шт.

41

A76214

SHAFT

- input, pump drive and PTO (Prior to transmission serial no. 2470721) (Order A140190 and A138866)

1шт.

42

A76016

BUSHING

- shaft, 1-21/32" OD x 3/4" wide (42.06 x 19.05 MM) (Prior to transmission serial no. 2470721) (Order A140190 and A138866)

1шт.

43

41-1024

PLUG,Cup, 1 1/2"

- cup, input shaft, 1-1/2" OD (38.1 MM)

1шт.
