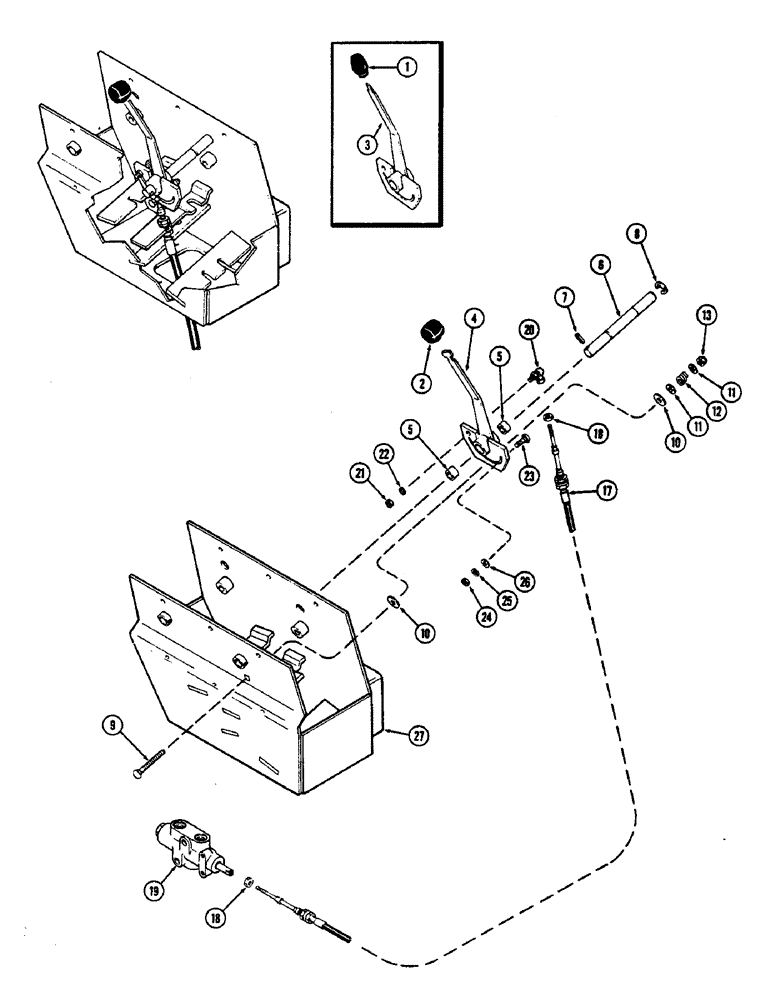

Запчасти Case IH 2470 (272) - PTO CONTROL LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- lever, plastic, (Order A137806)

1шт.

2

A137806

KNOB

- lever, rubber

1шт.

3

A75906

LEVER

ASSEMBLY - PTO, with threaded top (Order ref 2 and 4), Includes: Ref. 5

1шт.

4

A137851

LEVER

ASSEMBLY - PTO (Replaces A75906), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

A75736

SHAFT

- console lever

1шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

1шт.

9

111-327

CARRIAGE BOLT,Short NK, 3/8"-16 x 3", G2

BOLT - 3/8 x 3" NC carriage, grade 2

1шт.

10

A61069

DISC

WASHER - friction, 25/64 x 1-1/4 x 1/8" (9.92 x 31.75 x 3.17 MM)

2шт.

11

195-104

WASHER,3/8"

- flat, 7/16 x 1 x 5/64" (11.11 x 25.4 x 1.98 MM)

2шт.

12

A75454

SPRING

- brake, 1" free length (25.4 MM)

1шт.

13

131-94

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8" NC hex.

1шт.

17

A145340

CABLE

- PTO, 64" long (1625.6 MM) (Replaces A76410)

1шт.

18

129-37

NUT,#10-32

2шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - PTO control (See figure 290)

1шт.

20

A75447

BALL JOINT

- #10-32 NF

1шт.

21

129-37

NUT,#10-32

1шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

23

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16") (10.32 x 20.64 x 1.59 mm) 3/8", SAE

2шт.

27

REF

INSTRUCTION

CONSOLE - operators (See figure 438 and 440)

1шт.
