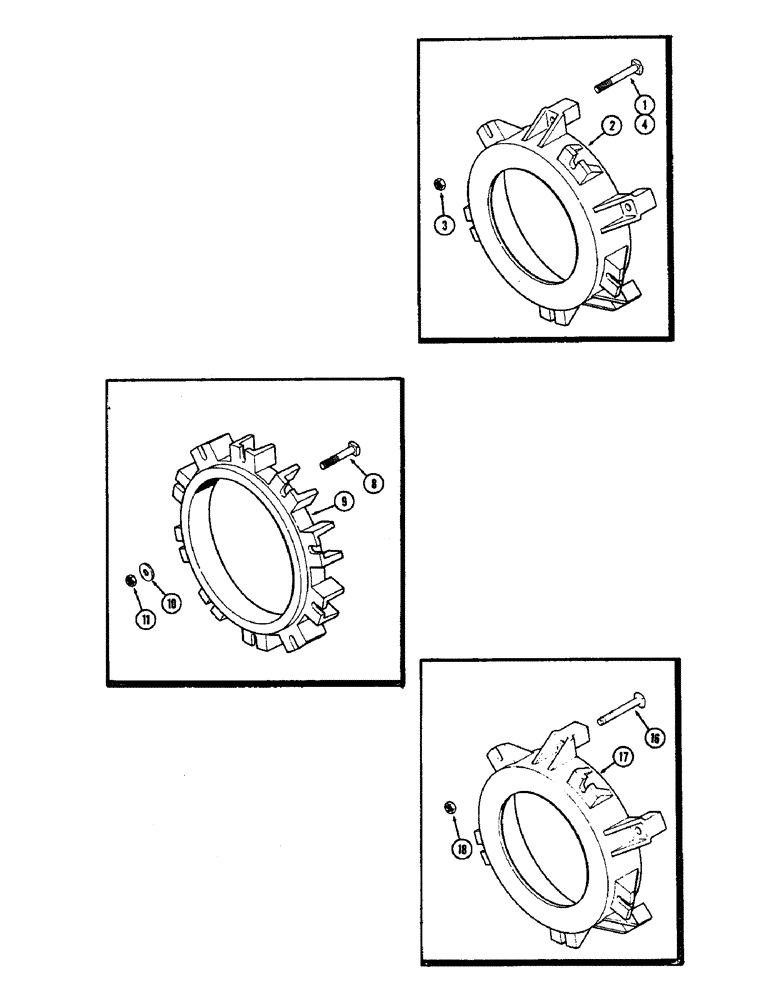

Запчасти Case IH 2470 (266) - WHEEL ADAPTER AND WEIGHTS (06) - POWER TRAIN

A75938

ADAPTER KIT - wheel weight, for use with 30" or 34" wheels (Set of 2) (Machine item), Includes: Ref. 1 - 4

1шт.

1

117-607

BOLT,Sq Hd, 3/4" - 10 x 6", Gr 5

- 3/4 x 6" NC square head, grade 5 (1 axle clamp mounted wheels)

10шт.

2

A75549

ADAPTER - wheel weight (100 pounds each) (Set of 2) (For 1 axle clamp and bolt mounted wheels)

2шт.

3

129-108

NUT,3/4"-10, G5

10шт.

4

117-610

BOLT - 3/4 x 8" NC square head, grade 5 (1 axle bolt mounted wheels) Sq Hd, 3/4"-10 x 8", G5

10шт.

A75939

WHEEL WEIGHT KIT - (Set of 2) (Machine item), Includes: Ref. 8 - 11

1шт.

8

117-606

BOLT,Sq Hd, 3/4" - 10 x 4-1/2", Gr 5

- 3/4 x 4-1/2" NC square head, grade 5

10шт.

9

A75550

WEIGHT - wheel (100 pounds each) (Set of 2) (1 axle clamp mounted wheels) (Machinery item)

1шт.

10

195-109

WASHER,3/4"

- flat, 2 x 13/16 x 13/16" (50.8 x 20.64 x 4.76 MM)

10шт.

11

129-108

NUT,3/4"-10, G5

10шт.

A77117

ADAPTER KIT - wheel weight, for use with 32" wheels (Set of 2) (Machine item), Includes: Ref. 16 - 18

1шт.

16

117-610

BOLT - 3/4 x 8" NC square head, grade 5 Sq Hd, 3/4"-10 x 8", G5

10шт.

17

A75549

ADAPTER - wheel weight (100 pounds each) (Set of 2)

2шт.

18

129-108

NUT,3/4"-10, G5

10шт.
