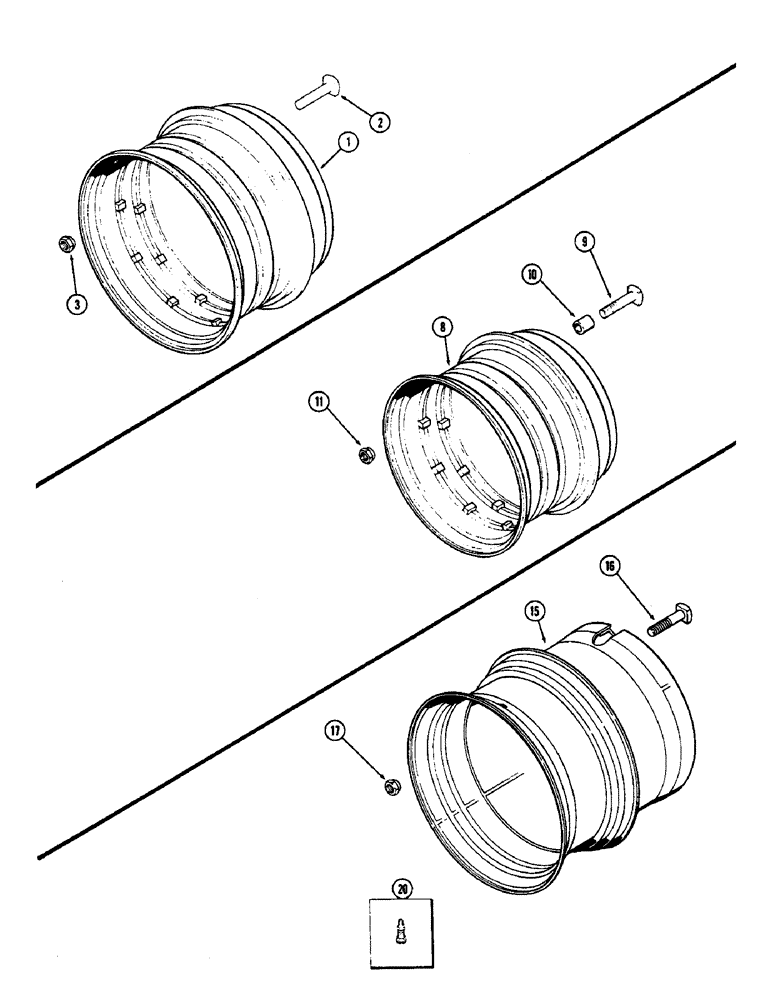

Запчасти Case IH 2470 (264) - DUAL WHEELS (06) - POWER TRAIN

1

A138394

RIM

- outer dual wheel, for 18.4 x 34 tire (Order A162802)

4шт.

2

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

- 3/4 x 4" NC square head, grade 5

40шт.

3

A160864

WHEEL NUT

- 3/4" NC hex.

40шт.

8

A76433

WHEEL

RIM - outer dual, wheel, for 20.8 x 34 tire

4шт.

9

117-612

SQUARE BOLT,3/4" - 10 x 5", Gr 5

- 3/4 x 5" NC square head, grade 5

40шт.

10

A76434

SPACER

- dual wheel mounting

40шт.

11

A160864

WHEEL NUT

- 3/4" NC hex.

40шт.

15

A162802

WHEEL

- outer dual, 18.4 x 34" tire (467.36 x 863.6 MM) For 120" (3 048 MM) Row crop

4шт.

16

A160853

SQUARE BOLT

- wheel, 3/4 x 5-1/4" NC square head, grade 8

40шт.

17

A160864

WHEEL NUT

- wheel bolt, 3/4" NC hex.

40шт.

20

A20058

VALVE STEM

- Air,Tubeless tire

1шт.
