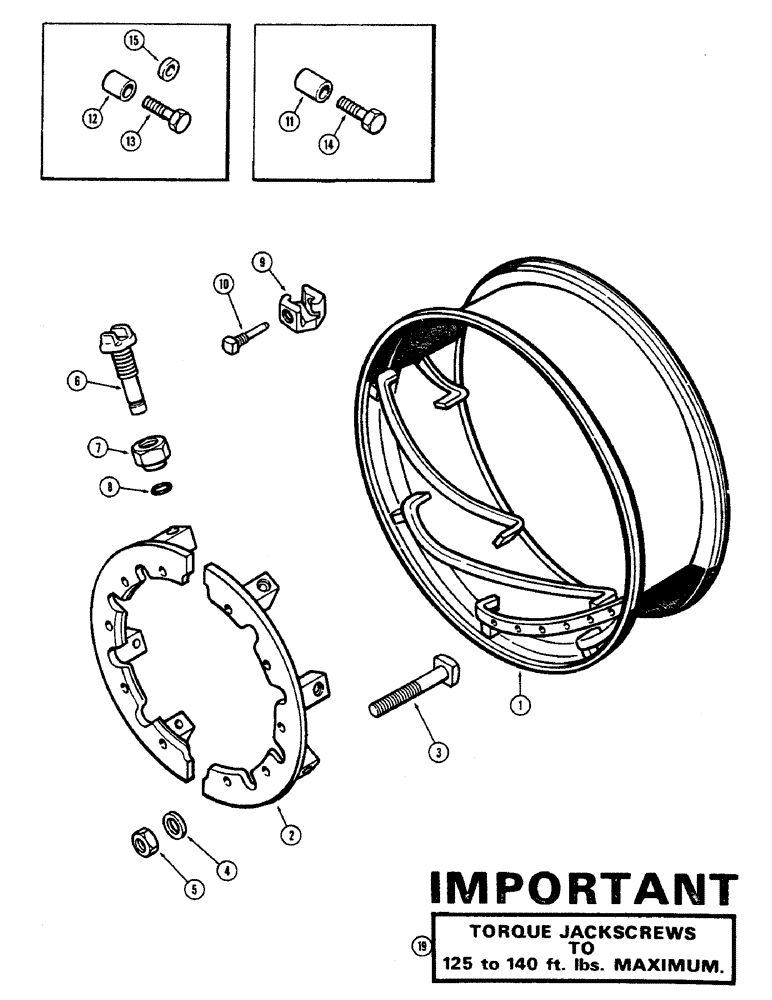

Запчасти Case IH 2470 (262) - POWER ADJUSTABLE WHEEL AND CLAMPS (06) - POWER TRAIN

A162269

ATTACHMENT - power adjustable wheel (Machinery item), Includes: Ref. 1 - 15

1шт.

1

A161863

RIM

- wheel, for 16.9 x 38" tire (429.2 x 965.2 MM) For 30" (762 MM) Row crop

4шт.

2

A162850

DISC

WHEEL - inner

4шт.

3

A160853

SQUARE BOLT

- wheel to hub, 3/4 x 5-1/4" NC square head, grade 8

40шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- wheel bolt, 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.57 MM)

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

A11051

SCREW,Jack

JACKSCREW ASSEMBLY - wheel clamping, Includes: Ref. 6 and 7

32шт.

6

NSS

NOT SOLD SEPARAT

JACKSCREW - clamp (Order A11051)

1шт.

7

A9408

NUT

- jackscrew

1шт.

8

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- jackscrew

1шт.

9

A9406

STOP

- rim

16шт.

10

A9440

STOP

SCREW - rim stop

16шт.

11

A161885

SPACER

- front steering stop bolt, 1-1/2" long (38.1 MM)

2шт.

12

A161884

SPACER

- rear steering stop bolt, 1-1/4" long (31.75 MM)

2шт.

13

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- rear stop, 5/8 x 2-1/4" NC hex., grade 8

2шт.

14

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- rear stop, 5/8 x 2-1/2" NC hex., grade 8

2шт.

15

A140011

BUSHING

SPACER - stop bolt

2шт.

19

321-6432

DECAL

- jackscrew torque, important

1шт.
