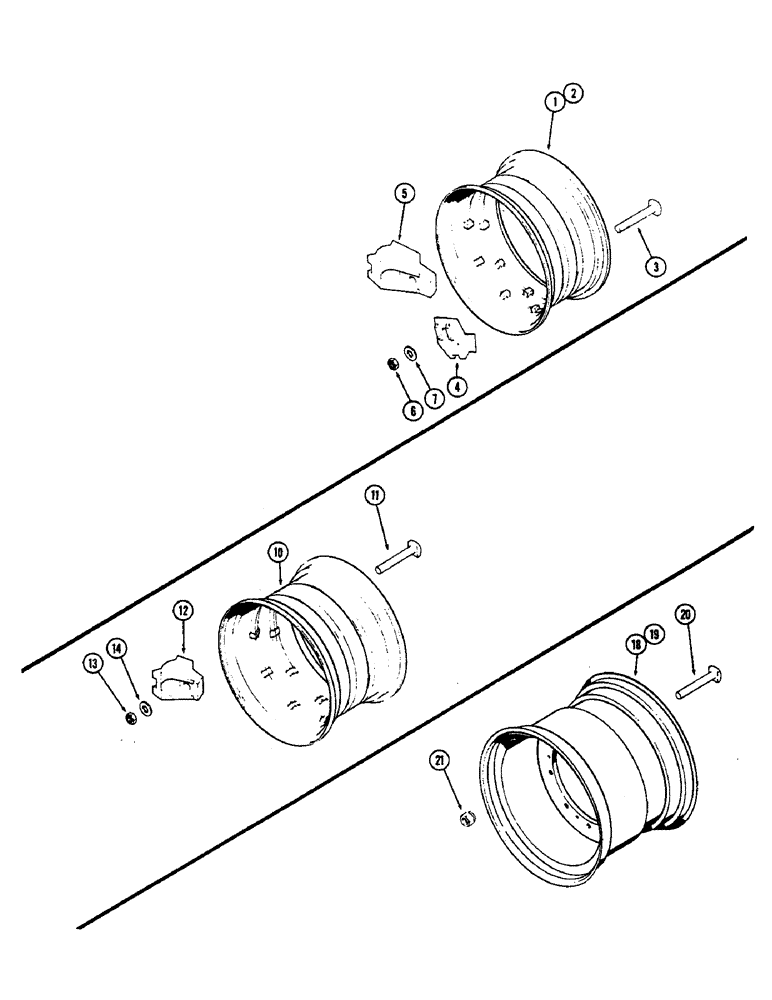

Запчасти Case IH 2470 (260) - SINGLE WHEELS AND CLAMPS (06) - POWER TRAIN

1

A75887

WHEEL

RIM - wheel, for 18.4 x 34 tire

4шт.

2

A75891

RIM

- wheel, for 20.8 x 34 tire

4шт.

3

A160853

SQUARE BOLT

- 3/4 x 5-1/2" NC square head, grade 8

40шт.

4

A75893

CLAMP

- rim, single position, for 18.4-34 and 20.8-34 wheel

40шт.

5

A139724

CLAMP

- rim, double position, for 18.4-34 and 20.8-34 wheel (Replaces A75895)

40шт.

6

129-137

NUT,3/4"-10, G5

40шт.

7

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.57 MM) (Replaces A141125)

40шт.

10

A75890

RIM

- wheel, for 23.1 x 30 tire

4шт.

11

A160853

SQUARE BOLT

- 3/4 x 5-1/4" NC square head, grade 8

40шт.

12

A75894

CLAMP

- rim, double position, for 23.1-30 wheel

40шт.

13

129-137

NUT,3/4"-10, G5

40шт.

14

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- 25/32 x 1-1/4 x 3/16" (19.84 x 31.75 x 4.57 MM) (Replaces A141125)

40шт.

18

A77115

NO LONGER SERVICED

RIM - wheel, for 24.5 x 32 tire

4шт.

19

A148139

WHEEL

RIM - wheel, for 30.5 x 32 tire (Replaces A77116)

4шт.

20

117-611

SQUARE BOLT,3/4" - 10 x 3 3/4", Gr 5

- 3/4 x 3-3/4" NC square head, grade 5

40шт.

21

A160864

WHEEL NUT

- 3/4" NC hex. (Replaces A76432)

40шт.
