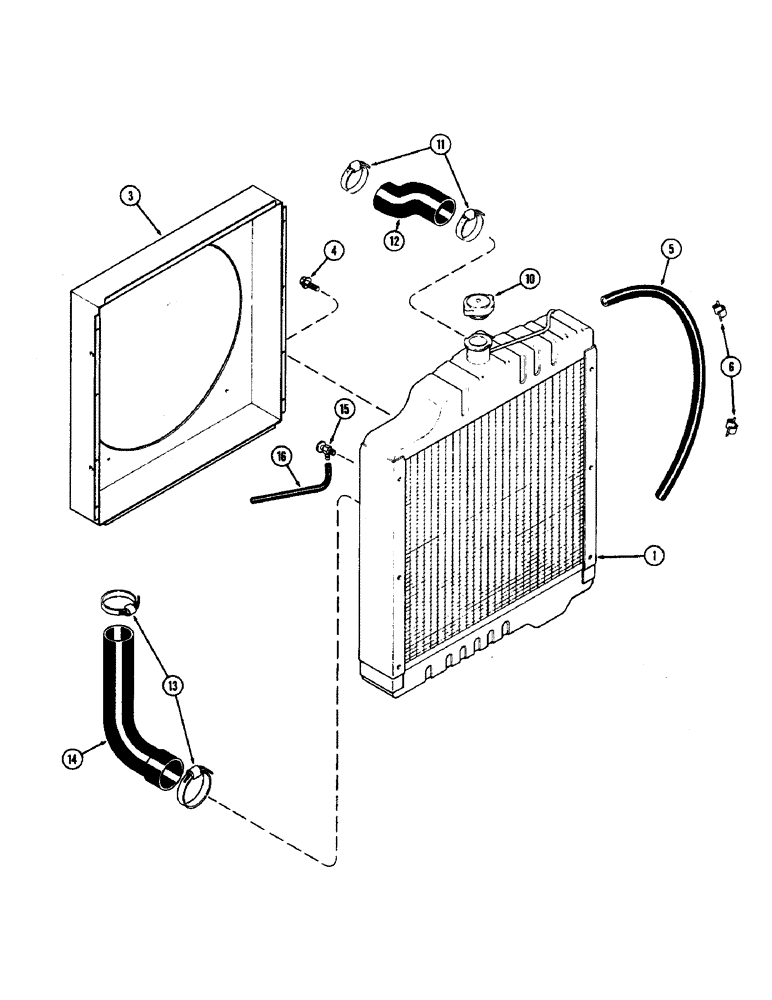

Запчасти Case IH 2470 (006) - RADIATOR AND SHROUD (02) - ENGINE

1

A75526

RADIATOR

- engine

1шт.

A143362

KIT - radiator shroud, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

SHROUD - radiator

1шт.

4

187-1328

SELF-TAP SCREW,Hex Wash Hd, #8-18 x 3/8"

SCREW - #8-18 x 3/8" hex. washer head

8шт.

5

A45690

TUBE

- overflow 9/32 x 11/32 x 43-1/2" (7.14 x 8.73 x 1104.9 MM)

1шт.

6

A45691

CLIP

- overflow tube

2шт.

10

A143721

CAP

- radiator pressure, 10 PSI (68.95 kPa), Start Serial: 8796295

1шт.

10

D25826

CAP

- radiator pressure, 7 PSI (48.26 kPa), Serial Range: -8796295

1шт.

11

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4" (58.74 to 82.55 MM)

2шт.

12

A76798

HOSE,2.50" ID x 9.25", SAE 20R4 CLASS SC 0R CLASS D1

RADIATOR HOSE, , Upper 2.50" ID x 9.25", SAE 20R4 CLASS SC 0R CLASS D1

1шт.

13

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16" to 3-3/4" (71.44 to 95.25 MM)

2шт.

14

A76799

HOSE,2.62" ID, 3.00" ID x 13.40", SAE 20R4 CLASS SC or SAE 20R4 CLASS D1

RADIATOR HOSE, , Lower 2.62" ID, 3.00" ID x 13.40", SAE 20R4 CLASS SC or SAE 20R4 CLASS D1

1шт.

15

A27862

COCK, DRAIN

VALVE - radiator drain (Replaces A23655)

1шт.

16

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.
