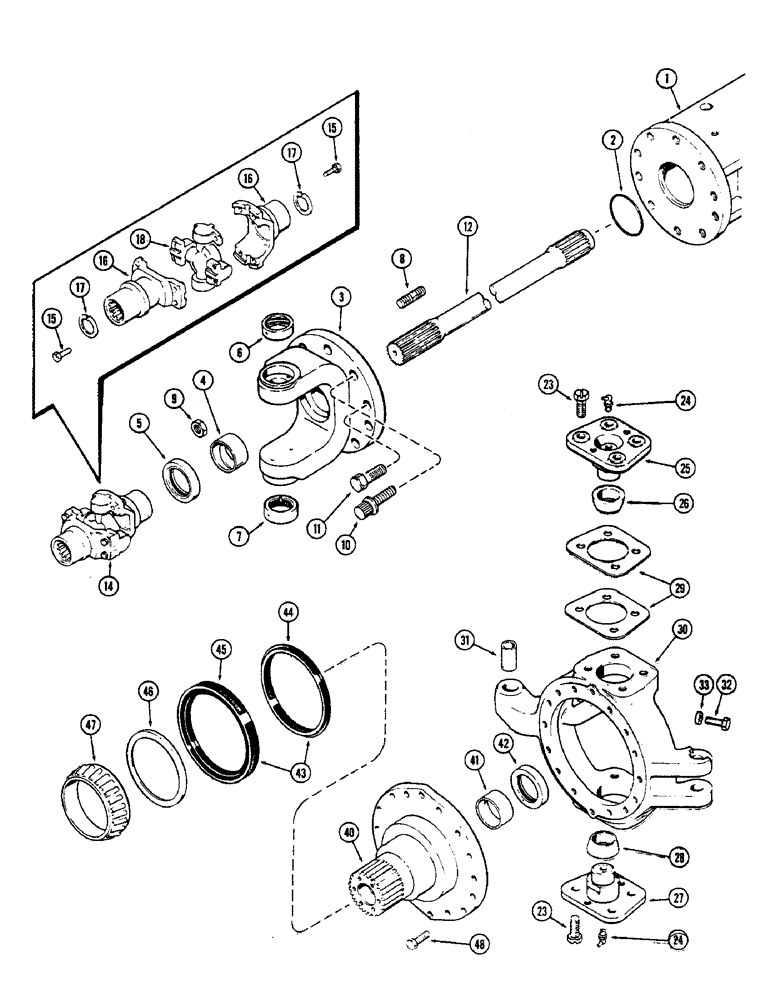

Запчасти Case IH 2470 (250) - REAR AXLE, TRUNNION AND WHEEL SPINDLE, STEERING REAR, PRIOR AXLE SERIAL NO. 10110612 (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - axle, differential (See figure 240)

1шт.

2

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- seal, trunnion housing

2шт.

3

A76567

TRUNNION

ASSEMBLY - axle (Order 1-A150701, 1-A77281, 2-166-139, 2-261-1232 and 26-1240), Includes: Ref. 4 - 7

2шт.

4

A75234

BUSHING

- 2-1/2 x 2-11/16 x 1-1/2" (63.5 x 68.26 x 38.1 MM)

1шт.

5

A153036

OIL SEAL

- oil, 2-1/2 x 3-1/2 x 1/2" (63.5 x 88.9 x 12.7 MM) (Replaces A75233)

1шт.

6

A76569

BUSHING

RING - king pin outer bearing, 2-7/16 OD x 21/32" wide (61.91 x 16.67 MM)

1шт.

7

A76570

BEARING WASHER,1.75" ID x 2.8122" OD x 1.07"

RING - king pin outer bearing, 2-13/16 OD x 1-1/16" wide (71.44 x 26.99 MM)

1шт.

8

A77281

STUD

- mounting, axle trunnion, 3/4" NC x 2-7/8"

2шт.

9

25-1612

NUT,3/4"-10, G5, Hvy

- 3/4" NC hex.

4шт.

10

166-134

12 PT SCREW,Flg, 3/4" - 10 x 2", Gr 8

BOLT - 3/4 x 2" NC Ferry cap

4шт.

11

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

8шт.

12

A75243

SHAFT

- axle drive, short, 28-5/8" (727.07 MM)

1шт.

12

A75242

SHAFT

- axle drive, long, 32-1/2" (825.5 MM)

1шт.

14

A75275

JOINT

ASSEMBLY - universal, Includes: Ref. 15 - 18

2шт.

15

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- U-joint to slip yoke

8шт.

16

A44175

YOKE

- slip

2шт.

17

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, 1.812", Int, #181

2шт.

18

D50866

SPIDER,49.28mm Cap Dia, 117.35mm L, Grease-able

U-JOINT - with bearings

1шт.

23

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- 3/4 x 1-3/4" NC hex. head

16шт.

24

219-41

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 65º, 1/8" NPT x 1.20" lg

4шт.

25

A136138

PIN

ASSEMBLY - king, upper, Includes: Ref. 26

2шт.

26

A76573

RING

- king pin inner bearing, 1-1/2" ID x 2-5/32" OD (38.1 x 54.77 MM)

1шт.

27

A136139

PIN

ASSEMBLY - king, lower, Includes: Ref. 28

2шт.

28

A76576

BEARING WASHER,44.44mm ID x 63.88mm OD x 24.89mm Thk

RING - king pin inner bearing, 1-3/4" ID x 2-13/16" (44.45 x 77.44 MM)

1шт.

29

A136186

SHIM,82.96mm ID x 126.75mm OD x 0.13mm Thk

King pin (0.13 mm) .005" Thk

1шт.

29

A136187

SHIM,82.96mm ID x 126.75mm OD x 0.38mm Thk

King pin (0.381 mm) .015" Thk

1шт.

30

A76584

HOUSING

ASSEMBLY - spindle, RH and LH, Includes: Ref. 31

2шт.

31

A75239

BUSHING,22.28mm ID x 28.66mm OD x 56.34mm L

- spindle housing

1шт.

32

26-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- 5/8 x 1-1/4" NC hex., grade 8

2шт.

33

A140011

BUSHING

SPACER - steering adjusting, 21/32 x 1 x 21/64" (16.67 x 25.4 x 8.33 MM)

1шт.

40

REF

INSTRUCTION

SPINDLE ASSEMBLY - wheel (See figure 186) (Prior to axle serial no. 10109679), Includes: Ref. 41 - 47

2шт.

41

A75234

BUSHING

- universal joint yoke

1шт.

42

A153036

OIL SEAL

- oil, axle, 2-1/2" ID x 3-1/2 x 1/2" wide (63.5 x 88.9 x 12.7 MM) (Replaces A75233)

1шт.

43

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSEMBLY - oil, wheel spindle, Includes: Ref. 44 and 45

1шт.

44

NSS

NOT SOLD SEPARAT

SEAL - oil, inner half

1шт.

45

NSS

NOT SOLD SEPARAT

SEAL - oil, outer half

1шт.

46

A75256

RING

- back-up, wheel spindle bearing

1шт.

47

L31699

TAPERED BEARING

CONE - bearing, wheel spindle

1шт.

48

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

28шт.

48

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.
