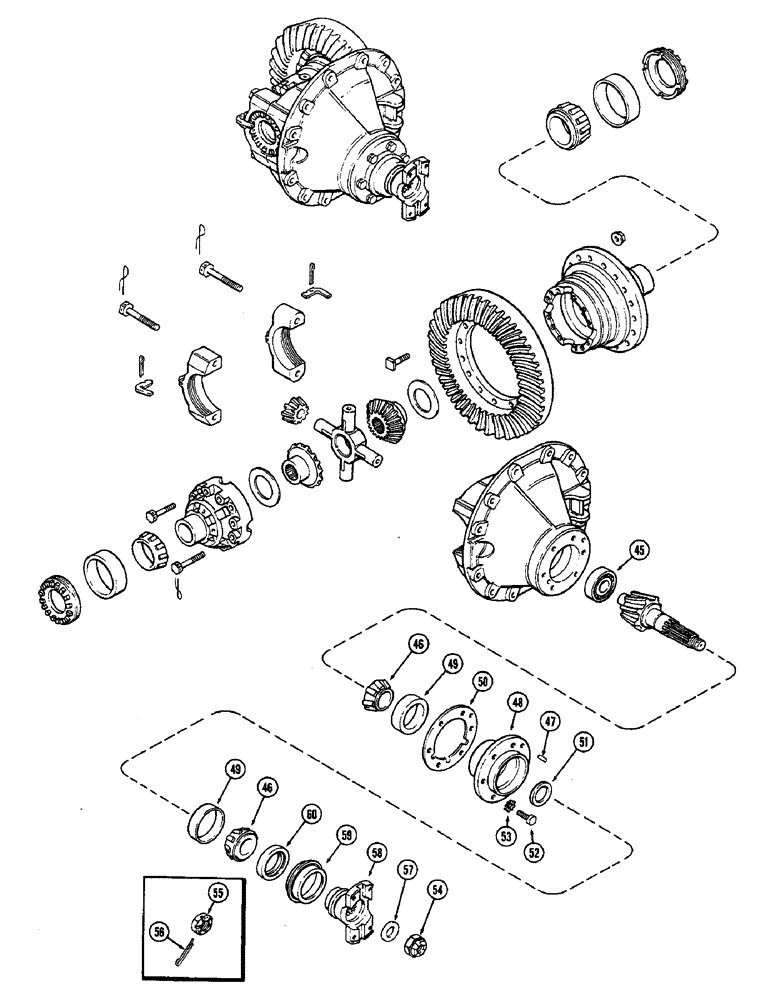

Запчасти Case IH 2470 (248) - REAR AXLE DIFFERENTIAL CARRIER ASSEMBLY, CONTD (06) - POWER TRAIN

A153460

CARRIER

ASSEMBLY - (Replaces A140872) (Continued from figure 246), Includes: Ref. 45 - 60

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, differential pinion spigot

1шт.

46

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, differential pinion, 1-3/4" ID (44.45 MM)

2шт.

A44230

CAGE ASSY.,4.250" OD

CAGE ASSEMBLY - pinion, Includes: Ref. 47 - 49

1шт.

47

A45631

PIN

- guide plunger

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing carrier (Order A44230)

1шт.

49

F61284

BEARING CUP

CUP - bearing, pinion bearing cage, 3-3/4" OD (95.25 MM)

2шт.

50

A44232

SHIM,.003" Thk

Pinion bearing cage (.0762 mm) .003" Thk

1шт.

50

A44233

SHIM,.005" Thk

Pinion bearing cage (0.127 mm) .005" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage, 0.010" (0.254 MM)

1шт.

50

A44235

SHIM,.020" Thk

Pinion bearing cage (0.508 mm) .020" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage, 0.030" (0.762 MM)

1шт.

51

A45587

BUSHING

SPACER - pinion shaft bearing, 0.514" (13.05 MM) (Replaces A44243)

1шт.

51

A45588

BUSHING

SPACER - pinion shaft bearing, 0.522" (13.25 MM) (Replaces A44244)

1шт.

51

A45589

BUSHING

SPACER - pinion shaft bearing, 0.530" (13.46 MM) (Replaces A44245)

1шт.

51

A45590

BUSHING

SPACER - pinion shaft bearing, 0.538" (13.66 MM) (Replaces A44246)

1шт.

51

A45591

BUSHING

SPACER - pinion shaft bearing, 0.542" (13.7 MM) (Replaces A44247)

1шт.

52

A44212

BOLT

- pinion bearing, Serial Range: carrier-cage

6шт.

53

193-33

LOCK WASHER,9/16"

WASHER - lock, external teeth Shakeproof 9/16"

6шт.

54

A45567

NUT

- drive pinion shaft end to flange (Axle serial no. 2591300 and after)

1шт.

55

A44211

NUT

- drive pinion shaft end to flange (Prior to axle serial no. 2591300) (Order A45567 and 132-56)

1шт.

57

A44209

WASHER

- drive pinion shaft, Serial Range: end-flange

1шт.

58

A44360

YOKE

- axle drive shaft

1шт.

A44218

SEAL

CAGE ASSEMBLY - pinion shaft to carrier, Includes: Ref. 59 and 60

1шт.

59

NSS

NOT SOLD SEPARAT

RETAINER - seal cage (Order A44218)

1шт.

60

NSS

NOT SOLD SEPARAT

SEAL - oil, pinion shaft to carrier (Order 44218)

1шт.

56

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), (Used with A44211 nut) 1/8" x 1 3/4"

1шт.
