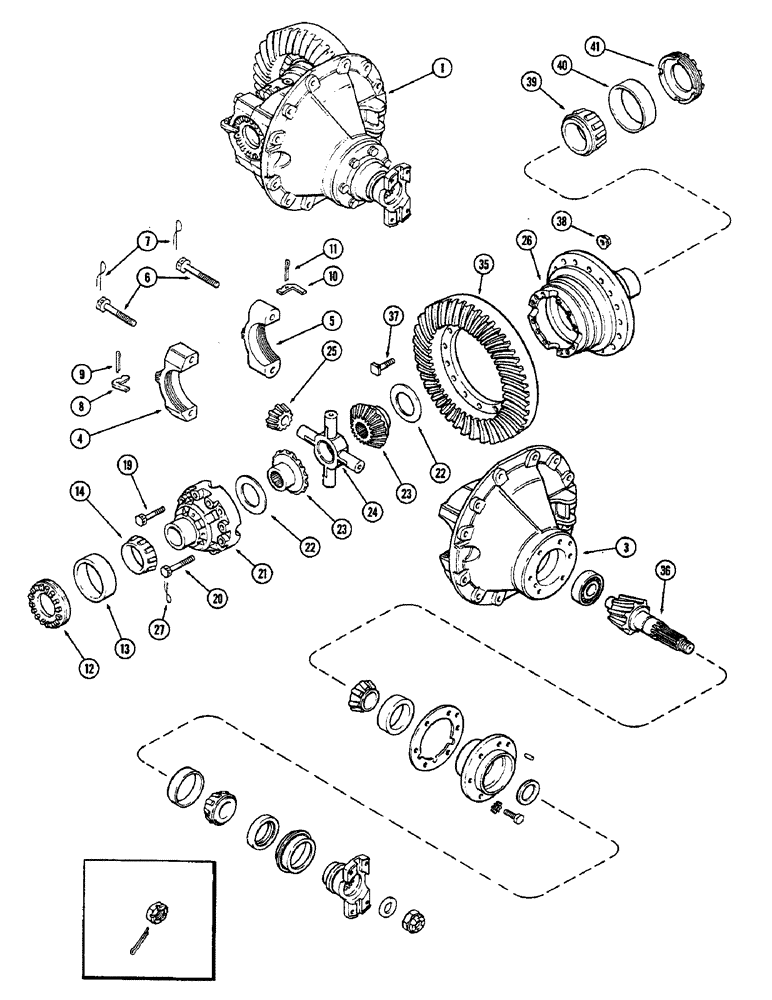

Запчасти Case IH 2470 (246) - REAR AXLE DIFFERENTIAL CARRIER ASSEMBLY (06) - POWER TRAIN

1

A153460

CARRIER

ASSEMBLY - differential, rear axle (Replaces A140872 and A76420), Includes: Ref. 2 - 41

1шт.

A44224

CARRIER

U-CARRIER ASSEMBLY - differential with cap and bolts, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - differential bearing carrier (Order A44224)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - differential bearing carrier (Order A44224)

1шт.

6

A44227

BOLT

- differential bearing carrier cap

4шт.

7

391-620

LOCK,#16 Ga x 12"

WIRE - lock, 16 gauge x 12" (1.59 x 304.8 MM)

4шт.

8

A44216

LOCK

- adjusting, differential carrier bearing, RH

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, differential carrier bearing, LH

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, differential carrier bearing, RH

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - differential bearing, RH

1шт.

14

A18173

ROLLER BEARING

CONE - bearing, differential case, RH

1шт.

A153802

DIFFERENTIAL

ASSEMBLY - (Replaces A140071), Includes: Ref. 19 - 22

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- short, differential case

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- long, differential case

8шт.

21

NSS

NOT SOLD SEPARAT

CASE - differential, plain half (Order A44350)

1шт.

Ref. 21 - No Longer Furnished, Order A153802 Cage Assy.

1шт.

22

A45248

WASHER

- thrust, side gear, 0.058" (1.437 MM)

1шт.

22

A44204

WASHER

- thrust, side gear, 0.061" (1.549 MM)

1шт.

22

A44355

WASHER

- thrust, side gear, 0.064" (1.625 MM)

1шт.

22

A44356

WASHER

- thrust, side gear, 0.067" (1.702 MM)

1шт.

22

A44357

WASHER

- thrust, side gear, 0.070" (1.778 MM)

1шт.

22

A44358

WASHER

- thrust, side gear, 0.073" (1.854 MM)

1шт.

22

A44359

WASHER

- thrust, side gear, 0.076" (1.930 MM)

1шт.

A153803

GEAR-SET

GEAR ASSEMBLY - pinion and side, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - side, differential bias (Order A153803)

2шт.

24

A140051

U-JOINT SPIDER

SPIDER - differential (Order A153803)

1шт.

25

NSS

NOT SOLD SEPARAT

PINION - bias gear (Order A153803)

4шт.

26

NSS

NOT SOLD SEPARAT

CASE - differential, flange half (Order A153802)

1шт.

Ref. 26 - No Longer Furnished, Order A153802 Cage Assy.

1шт.

27

391-709

ELECTRICAL WIRE

WIRE - lock, 18 gauge x 84" (1.19 x 2 133.6 MM)

1шт.

A45113

GEAR-SET

GEAR SET - matched pinion and drive gear (Replaces A44260), Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive, 39 teeth (Order A45113)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive, 8 teeth (Order A45113)

1шт.

37

A44263

STEP BOLT

BOLT - differential, Serial Range: gear-case

16шт.

38

A44264

NUT

- differential, Serial Range: gear-case

16шт.

39

A31243

ROLLER BEARING

CONE - bearing, differential LH

1шт.

40

A31242

CUP

- bearing, differential LH

1шт.

41

A44215

NUT

- adjusting, differential carrier bearing LH

1шт.
