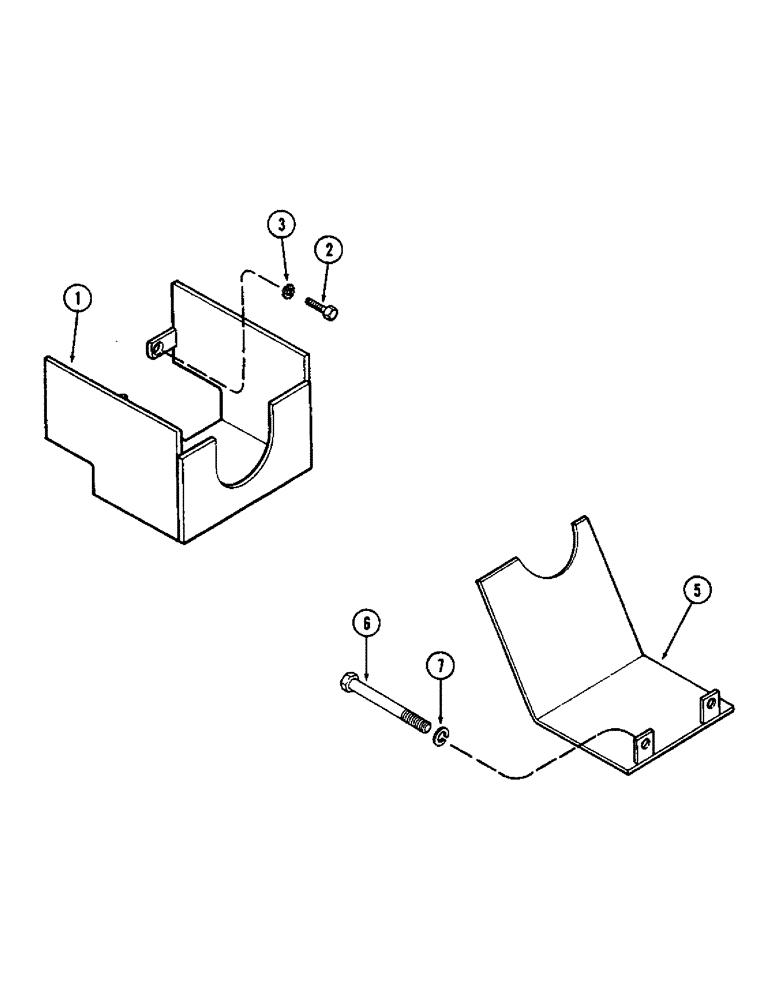

Запчасти Case IH 2470 (244) - REAR AXLE DRIVE SHAFT SHIELDS (06) - POWER TRAIN

1

A137606

SHIELD - rear axle U-joint

1шт.

2

A44212

BOLT

- shield to differential pinion carrier

2шт.

A44212 bolt and 193-33 lock washer are part of differential assembly figure 248. 13-856 bolt and 92-8 lockwasher are part of transmission assembly figure 236.

1шт.

3

193-33

LOCK WASHER,9/16"

WASHER - lock, external Shakeproof 9/16"

2шт.

A44212 bolt and 193-33 lock washer are part of differential assembly figure 248. 13-856 bolt and 92-8 lockwasher are part of transmission assembly figure 236.

1шт.

5

A135342

SHIELD - transmission brake housing U-joint

1шт.

6

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

A44212 bolt and 193-33 lock washer are part of differential assembly figure 248. 13-856 bolt and 92-8 lockwasher are part of transmission assembly figure 236.

1шт.

7

92-8

LOCK WASHER,1/2"

2шт.

A44212 bolt and 193-33 lock washer are part of differential assembly figure 248. 13-856 bolt and 92-8 lockwasher are part of transmission assembly figure 236.

1шт.
