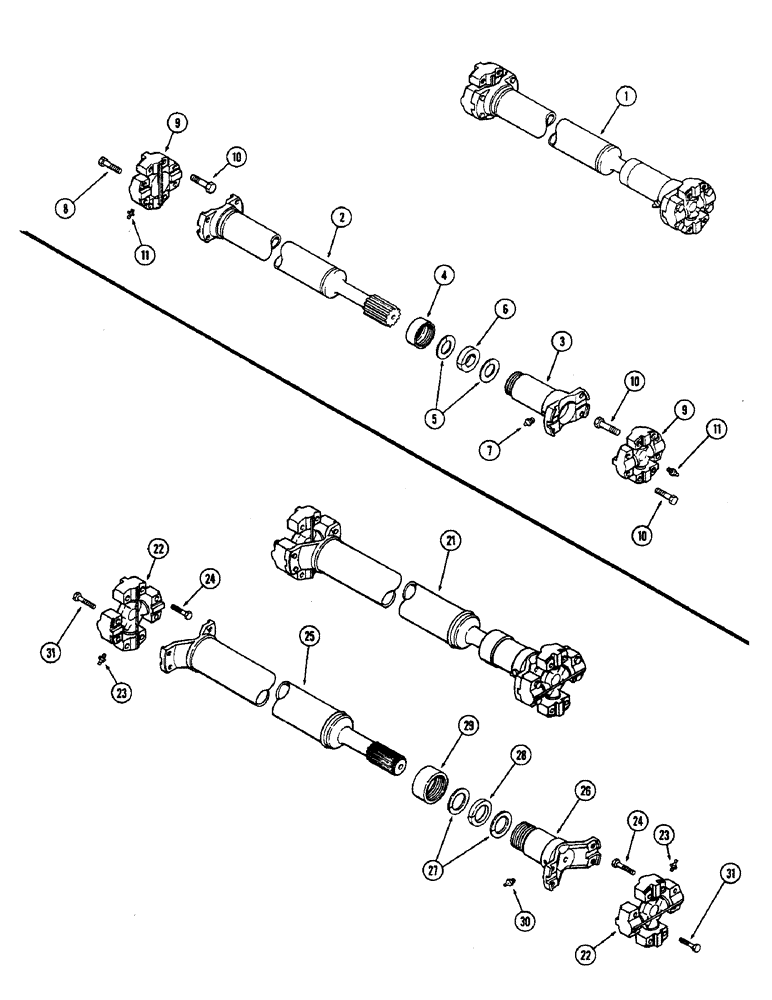

Запчасти Case IH 2470 (242) - REAR AXLE DRIVE SHAFT ASSEMBLY (06) - POWER TRAIN

1

A75281

SHAFT

ASSEMBLY - rear axle drive (Order 1-A151587, 8-26-640 and 8-129-139), Includs: Ref. 2 - 11

1шт.

2

A44177

TUBE

- drive shaft end

1шт.

3

L33943

KIT

SLIP YOKE - transmission end, Includes: Ref. 4 - 8

1шт.

4

A19923

CAP

- retainer, slip yoke dust shield

1шт.

5

A19922

WASHER

- retainer

2шт.

6

A19924

SEAL

- felt, slip yoke dust shield

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

1шт.

8

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

(Replaces A17302) Hex, 3/8"-24 x 1", G8, Full Thd

8шт.

9

D73653

U-JOINT SPIDER

U-JOINT - spider and bearings, Includes: Ref. 10 and 11

2шт.

10

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

U-joint (Replaces A17302) Hex, 3/8"-24 x 1", G8, Full Thd

8шт.

11

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4"-28 straight

1шт.

21

A151587

SHAFT

ASSEMBLY - drive, rear axle, Includes: Ref. 22 - 31

1шт.

22

D80329

JOINT

U-JOINT - drive shaft, Includes: Ref. 23 and 24

2шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - lube, 1/4"-28 straight

1шт.

24

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex.

8шт.

25

A47528

TUBE

- drive shaft yoke

1шт.

D73676

YOKE

ASSEMBLY - slip, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

YOKE - slip (Order D73676)

1шт.

27

D73712

WASHER

- retainer, felt seal

2шт.

28

D73711

FELT SEAL

- felt

1шт.

29

A19923

CAP

- seal

1шт.

30

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

1шт.

31

A17298

BOLT,Hex, 3/8" x 1 11/16"

SCREW - cap, 3/8 x 1-11/16" NF hex.

8шт.
