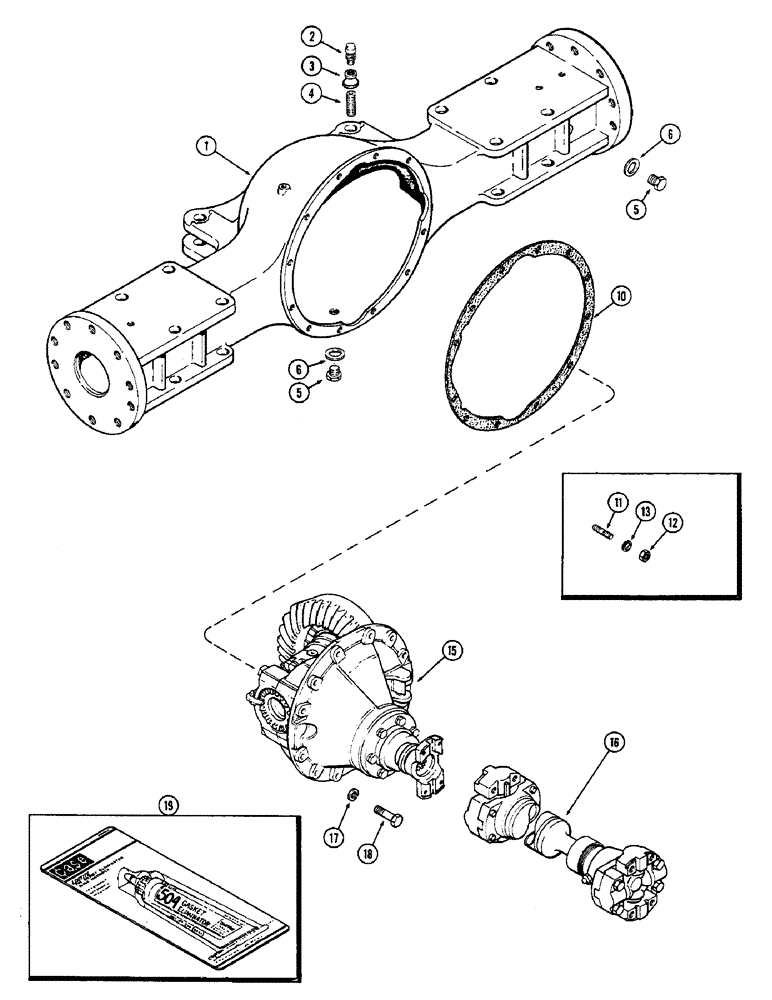

Запчасти Case IH 2470 (240) - REAR AXLE AND DIFFERENTIAL HOUSING, COMMON TO REAR RIGID AND REAR HYDRAULIC STEERING (06) - POWER TRAIN

1

A150717

HOUSING

- axle, differential (Replaces A76478)

1шт.

2

A12928

BREATHER

- differential axle housing

1шт.

3

221-1345

COUPLING, BREAK AWAY

COUPLING - reducer, Serial Range: 3/8-1/8"

1шт.

4

221-1158

FITTING

NIPPLE - 3/8" PT x 1"

1шт.

5

A140222

PLUG

- drain or fill, differential housing

2шт.

6

A51759

GASKET

- drain plug (Replaces A58608)

2шт.

10

A75228

GASKET

-, Serial Range: differential-housing

1шт.

B17428 gasket eliminator can be used to replace A75228 gasket.

1шт.

11

G102126

STUD

- mounting, 1/2" NC x 2-1/8" (Replaces A50241)

8шт.

11

A75985

STUD

- mounting, 1/2" NC x 2-1/2"

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

(Replaces 25-108) 1/2"-13, G5

12шт.

13

92-8

LOCK WASHER,1/2"

12шт.

15

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - rear axle (See figures 246 and 248)

1шт.

16

REF

INSTRUCTION

SHAFT ASSEMBLY - rear axle drive (See figure 242)

1шт.

17

92-8

LOCK WASHER,1/2"

12шт.

18

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

18

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- 1/2 x 1-3/4" NC hex., grade 8

4шт.

19

B17428

LOCTITE

ELIMINATOR - gasket, 2 oz (50 CC) (See note)

1шт.
