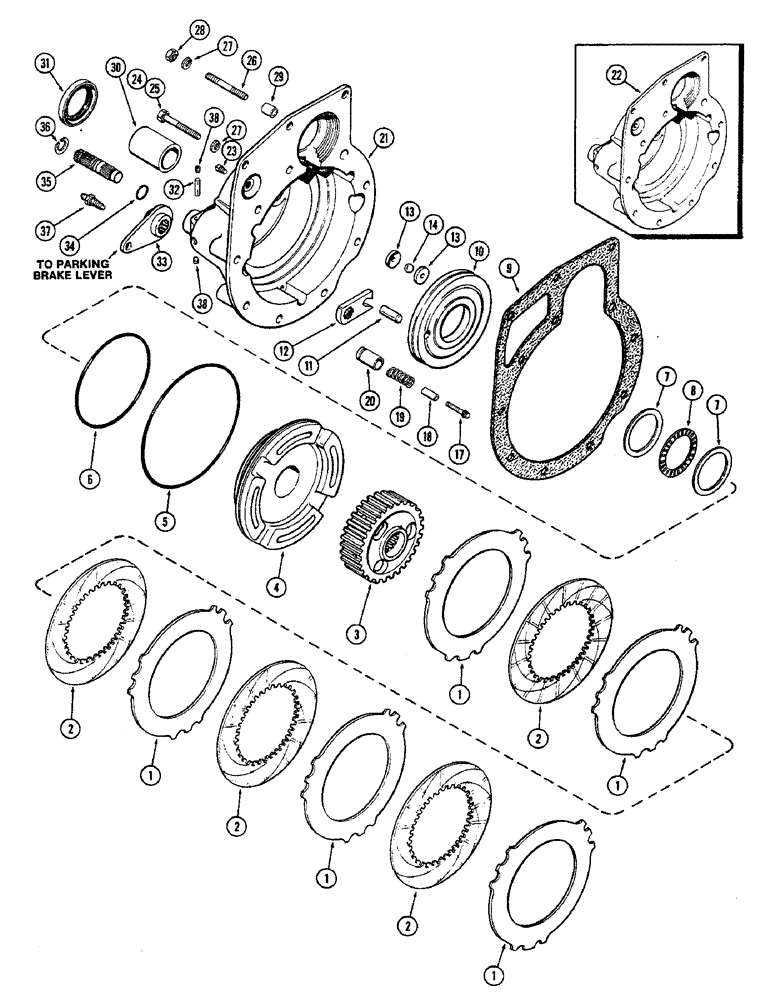

Запчасти Case IH 2470 (236) - TRANSMISSION BRAKE (06) - POWER TRAIN

1

A77070

PLATE

- steel, brake

5шт.

2

A77071

PLATE

- friction, brake

4шт.

3

A75146

HUB

- brake

1шт.

4

A75155

PLUNGER

PISTON - brake

1шт.

5

A75156

O-RING,0.139" Thk x 9.734" ID, -273, Cl 5, 75 Duro

- seal, outer, brake piston, 9-3/4 x 10 x 1/8" (247.65 x 254 x 3.17 MM)

1шт.

6

R21494

O-RING,0.139" Thk x 7.234" ID, -263, Cl 6, 90 Duro

- seal, inner, brake piston, 7-1/4 x 7-1/2 x 1/8" (184.15 x 190.5 x 3.17 MM)

1шт.

7

A75157

THRUST WASHER

RACE - needle bearing thrust, brake piston

2шт.

8

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

BEARING - needle, thrust, brake piston

1шт.

9

A76518

GASKET

- brake housing

1шт.

10

A75159

PLATE

- brake reactor

1шт.

11

A75160

PIN

- actuator, parking brake

1шт.

12

A75162

LEVER

- internal, parking brake

1шт.

13

A75161

SEAT

- parking brake cam ball

6шт.

14

211-15

BALL,5/8" Dia

- 5/8" (15.87 MM) Diameter, parking brake cam seat

3шт.

17

166-1004

12 PT SCREW,Lock, Flg, 1/4" - 20 x 1 3/4", Gr 8

SCREW - 1/4 x 1-3/4" Ferry cap with Jay-lock

3шт.

18

138-187

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, 7/16" x 1 1/4", Slotted

3шт.

19

A75154

SPRING

- brake piston return, 1-15/16" free length (49.21 MM)

3шт.

20

A75153

PIN

- brake torque reaction

3шт.

21

A146691

HOUSING

- brake (Transmission serial no. 10025944 and after)

1шт.

22

A76516

HOUSING

- brake (Prior to transmission serial no. 10025944) (Order 1-A146691 housing and 1-85-616 screw)

1шт.

23

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - 3/8-16 x 1" square head cup point set

1шт.

24

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex. grade 5

3шт.

25

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

5шт.

25

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

25

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex. head grade 5 (Prior to transmission serial no. 10025257)

2шт.

25

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" NC hex. head grade 5 (Transmission serial no. 10025257 and after)

2шт.

26

A76423

STUD

- brake housing to transmission case, 1/2 x 3-15/16"

1шт.

27

92-8

LOCK WASHER,1/2"

10шт.

28

25-118

NUT,1/2"-20, G5

- 1/2" NF hex.

1шт.

29

G49608

RING

- dowel, brake housing

1шт.

30

A75147

SPACER

- brake hub

1шт.

31

A75981

OIL SEAL,63.78mm ID x 89.08mm OD x 13.08mm Thk

- oil, output shaft, rear 2-5/8 x 3-1/2 x 1/2" (66.67 x 88.9 x 12.7 MM)

1шт.

32

A58950

PIN

- parking brake actuating lever 3/8 x 1-3/8"

1шт.

33

A76597

LEVER

- hand brake

1шт.

34

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- seal, parking brake actuating shaft 13/16 x 1 x 3/32" (20.64 x 25.4 x 2.38 MM)

1шт.

35

A75163

SHAFT

- parking brake actuating lever

1шт.

36

B18208

SNAP RING,#100, Ext

1шт.

37

A41491

BLEEDER,1/4" - 28 x 23.37mm

FITTING - brake bleed

1шт.

38

221-849

PLUG,Hex Soc, 1/8"-27

- 1/8" PT hex. socket head

2шт.
