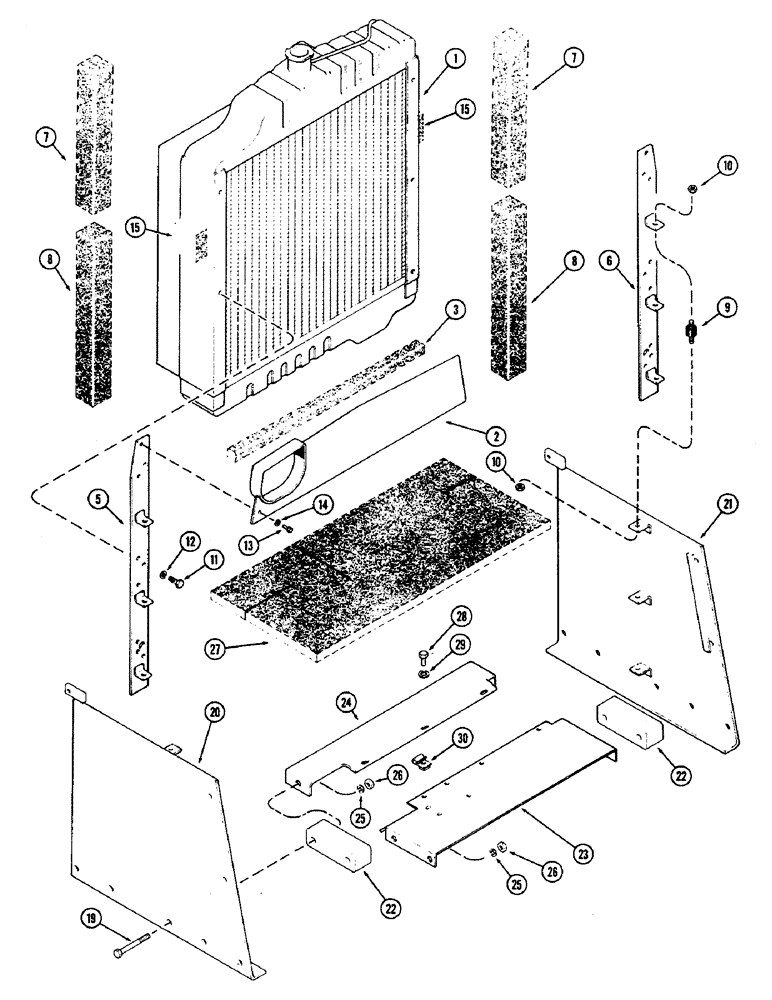

Запчасти Case IH 2470 (004) - RADIATOR BAFFLES AND SUPPORTS (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR - engine (See figures 2 and 6)

1шт.

2

A76791

BAFFLE ASSEMBLY - radiator top, Includes: Ref. 3

1шт.

3

A76421

SEAL

- baffle

1шт.

Attach with adhesive 345-22.

1шт.

5

A76792

SUPPORT

- radiator, right hand

1шт.

6

A76793

SUPPORT - radiator, left hand

1шт.

7

A76419

SEAL

- radiator side, upper, 17 x 2-1/2 x 2-1/2" (431.8 x 63.5 x 63.5 MM)

2шт.

8

A76418

SEAL

- radiator side, lower 20-19/64 x 2-1/2 x 2-1/2" (515.54 x 63.5 x 63.5 MM)

2шт.

9

L11236

BOLT

BOLT - flex, radiator mounting

6шт.

10

231-1445

NUT,5/16"-18, GB

NUT - 5/16" NF elastic stop

12шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Radiator to support Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

13

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Baffle to support Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

A76117

PAD

- radiator

2шт.

Attach with adhesive 345-22.

1шт.

19

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" NC hex., support, spacer and baffle to sill

8шт.

20

A75508

SUPPORT - radiator, right hand

1шт.

21

A75509

SUPPORT - radiator, left hand

1шт.

22

A76013

BLOCK - spacer

4шт.

23

A141466

BAFFLE

- radiator, lower front (Replaces A76789)

1шт.

24

A76788

BAFFLE - radiator, lower rear

1шт.

25

195-25

WASHER,3/8"

- lock, 5/8"

8шт.

26

129-107

NUT,5/8"-11, G5

8шт.

27

A76453

PAD

- lower baffle

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Baffle to baffle

3шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

30

131-616

NUT,Ret, J, 5/16"-18

- 5/16" NF Tinnerman

3шт.
