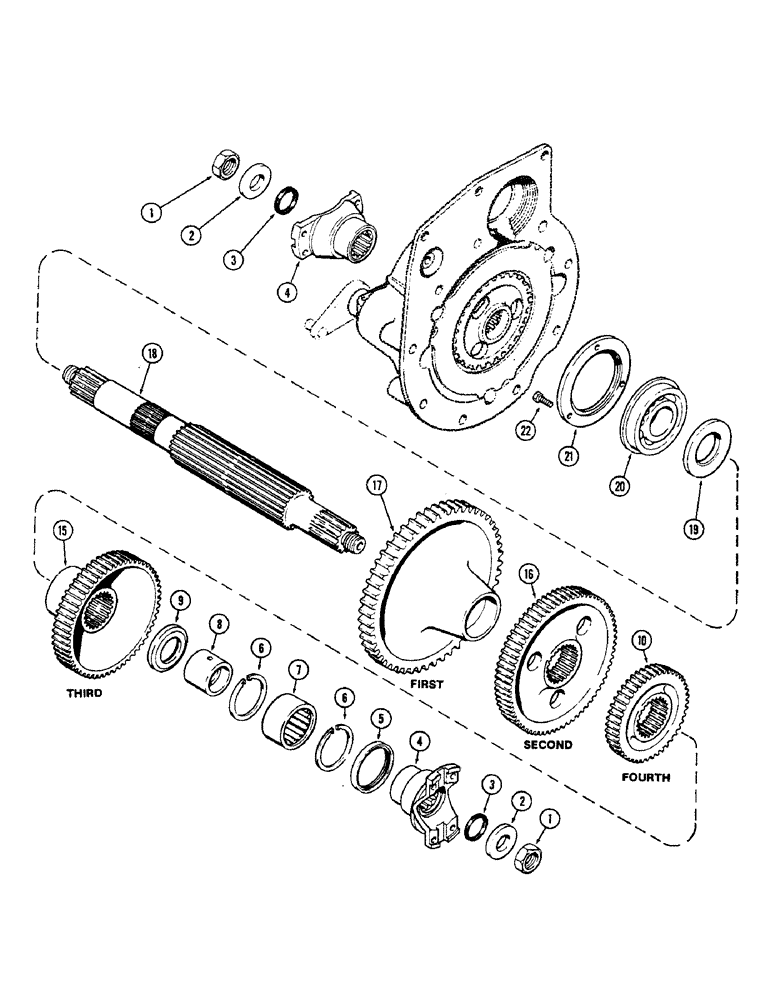

Запчасти Case IH 2470 (234) - OUTPUT SHAFT (06) - POWER TRAIN

1

131-584

LOCK NUT,1 1/8"-12

NUT - 1-1/8" NF hex., Flexloc

2шт.

2

A75138

WASHER

- retaining, output shaft yoke

2шт.

3

A76373

SEALING WASHER

- sealing, yoke 1-1/2 x 1-3/4 x 11/32" (38.1 x 44.45 x 8.73 MM)

2шт.

4

A75136

FORK

YOKE - output shaft

2шт.

5

A38231

OIL SEAL,66.67mm ID x 85.22mm OD x 9.53mm Thk

- oil, output shaft, front

1шт.

6

A76298

SNAP RING,#300, 3.222", Int

RING - snap, output shaft needle bearing

2шт.

7

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - needle, output shaft, front

1шт.

8

A75126

RING RACE

RACE - inner, output shaft needle bearing

1шт.

9

A75139

SPACER

- output shaft, third driven gear

1шт.

10

A155291

GEAR

- driven, fourth, 39 teeth (Replaces A152211)

1шт.

15

A75140

GEAR

- driven, third, 55 teeth

1шт.

16

A75142

GEAR

- driven, second, 65 teeth

1шт.

17

A75143

GEAR

- driven, first, 76 teeth

1шт.

18

A75135

SHAFT

- output

1шт.

19

A75144

SPACER

- output shaft first gear, rear

1шт.

20

A58098

BALL BEARING,1.9685" ID x 4.58" OD x 1.063"

BEARING - output shaft, rear

1шт.

21

A75145

RING

RETAINER - output shaft rear bearing

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.
