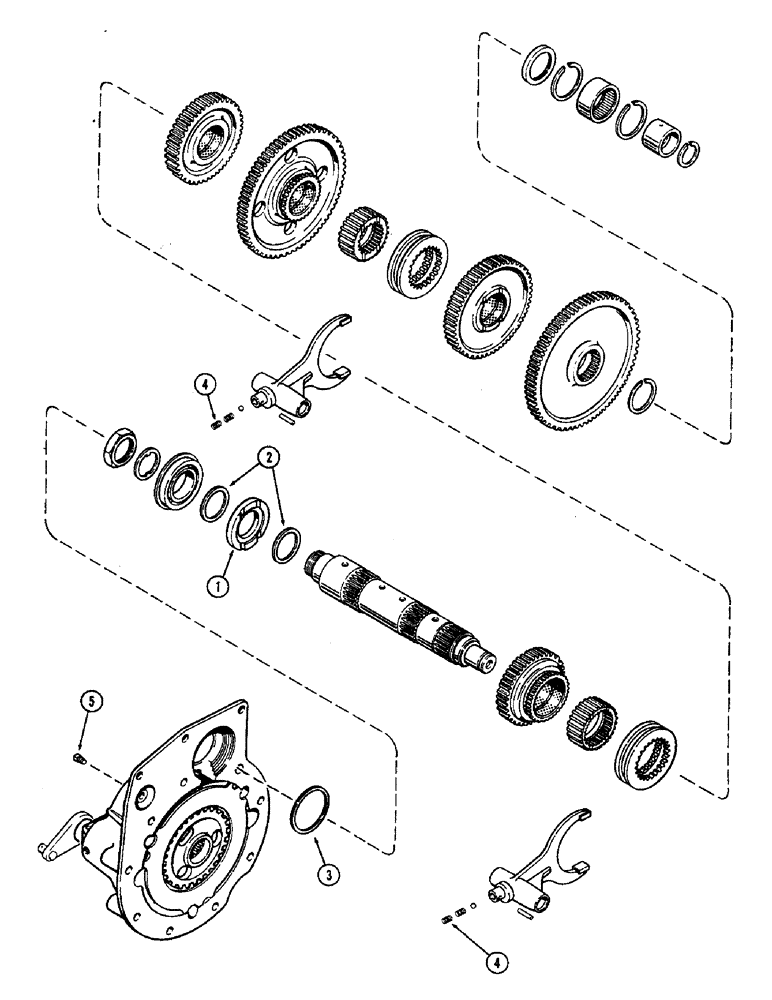

Запчасти Case IH 2470 (232) - END-PLAY KIT (06) - POWER TRAIN

A45875

SHAFT

KIT - end-play, Includes: Ref. 1 - 5

1шт.

This kit for use on tractors prior to transmission serial no. 10121045.

1шт.

1

A150211

SPACER

- rear

1шт.

2

A150203

SHIM

- 2-11/64 x 2-3/4 x 1/64" (55.16 x 69.85 x 0.40 MM)

5шт.

3

A150445

SPACER

- bearing, 3-19/32 x 2-27/32 x 1/32" (91.28 x 97.63 x 0.79 MM)

1шт.

4

A23886

SPRING

- detent, inner, 1/4" diameter x 1-1/2" free length (6.35 x 38.1 MM)

2шт.

5

85-616

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW - 3/8" x 1" NC set

1шт.
