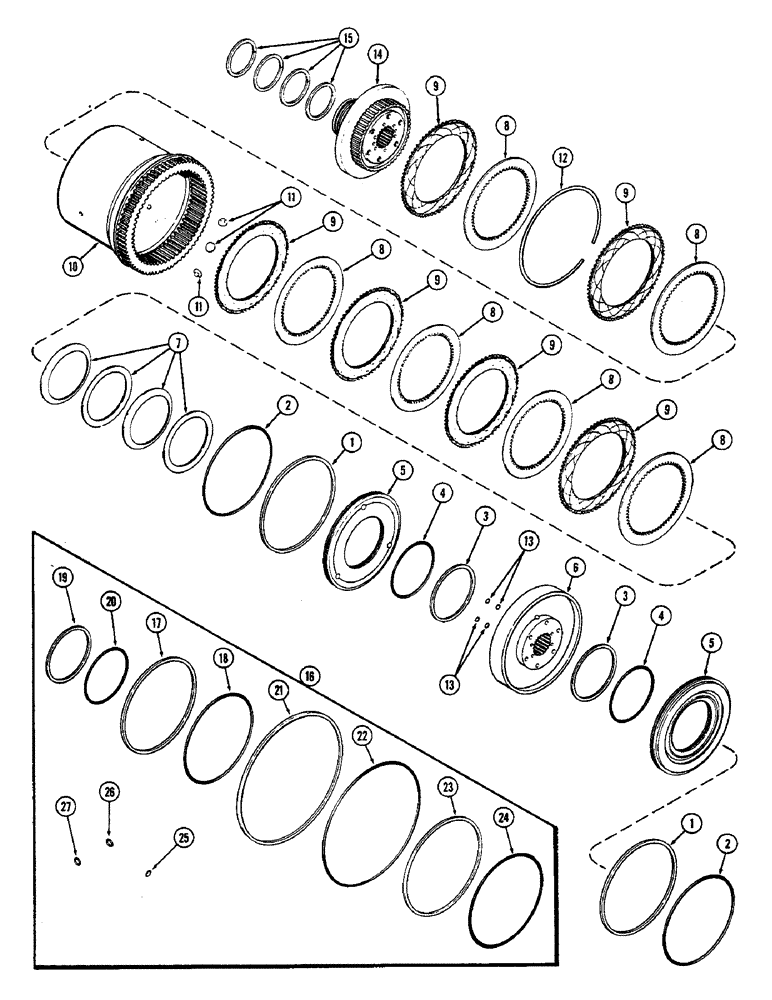

Запчасти Case IH 2470 (226) - CLUTCH, C2 AND C3 CLUTCHES, TRANSMISSION SERIAL NO. 10053397 AND AFTER (06) - POWER TRAIN

1

A146682

RING

- sealing, C2 and C3 external (Included in A46286 kit. See reference 16)

2шт.

2

A150753

O-RING,7.84" ID x 0.107"

- piston, C2 and C3 external (Included in A46286 kit. See reference 16)

2шт.

3

A146683

RING

- sealing, C2 and C3 internal (Included in A46286 kit. See reference 16)

2шт.

4

A150754

O-RING,4.718" ID x 0.107"

- piston, C2 and C3 internal (Included in A46286 kit. See reference 16)

2шт.

5

A146670

PISTON

- C2 and C3 clutch

2шт.

6

A150105

CARRIER

- C2 and C3 piston, with 31 internal splines (Transmission serial no. 10121454 and after)

1шт.

6

A148688

CARRIER

- C2 and C3 piston, with 31 internal splines (Transmission serial no. 10027109 through 10121453)

1шт.

7

A58094

SPRING

- Belleville, C3 clutch piston return

4шт.

8

A155461

PLATE

- steel, C3 clutch (Replaces A58089)

6шт.

9

A151419

PLATE

- sintered, C3 clutch (Order A61981)

6шт.

10

A138618

GEAR

- planetary ring, with 6 bearing holes (Transmission serial no. 2466903 and after) (Replaces A76497)

1шт.

10

A75116

GEAR

- planetary ring, with 3 bearing holes (Prior to transmission serial no. 2466903) (Order 1-A138618 and 3-A58413)

1шт.

11

A58413

BUTTON

BEARING - button, planetary ring gear (Only 3 used prior to transmission serial no. 2466903)

6шт.

12

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, planetary ring gear retaining

1шт.

13

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - oil sealing (Included in A42886 kit. See ref 16)

4шт.

14

A153298

HUB

- C3 clutch, uses 1/2" bolts (Transmission serial no. 10121454 and after)

1шт.

14

A75117

HUB

- C3 clutch, uses 3/8" bolts (Prior to transmission serial no. 10121454)

1шт.

15

A58384

RING

- C3 clutch, oil distributor piston

4шт.

16

A46286

SEAL KIT,Power Shift

SEAL KIT - power shift clutch, Includes: Ref. 17 - 27

1шт.

17

A146682

RING

- sealing (C1, C2 and C3 external)

3шт.

18

A150753

O-RING,7.84" ID x 0.107"

- piston (C1, C2 and C3 external)

3шт.

19

A146683

RING

- sealing (C1, C2 and C3 internal)

3шт.

20

A150754

O-RING,4.718" ID x 0.107"

- piston (C1, C2 and C3 internal)

3шт.

21

A146680

RING

- sealing, C4 external

1шт.

22

A150751

O-RING,12.09" ID x 0.107"

- piston, C4 external

1шт.

23

A146681

SEAL

- sealing, C4 internal

1шт.

24

A150752

O-RING,9.206" ID x 0.107" OD

- piston, C4 internal

1шт.

25

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - clutch hub to piston carrier

4шт.

26

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- lube tube, 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

7шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

- oil seal, 5/16 x 7/16 x 1/16" (7.93 x 11.11 x 1.58 MM)

1шт.
