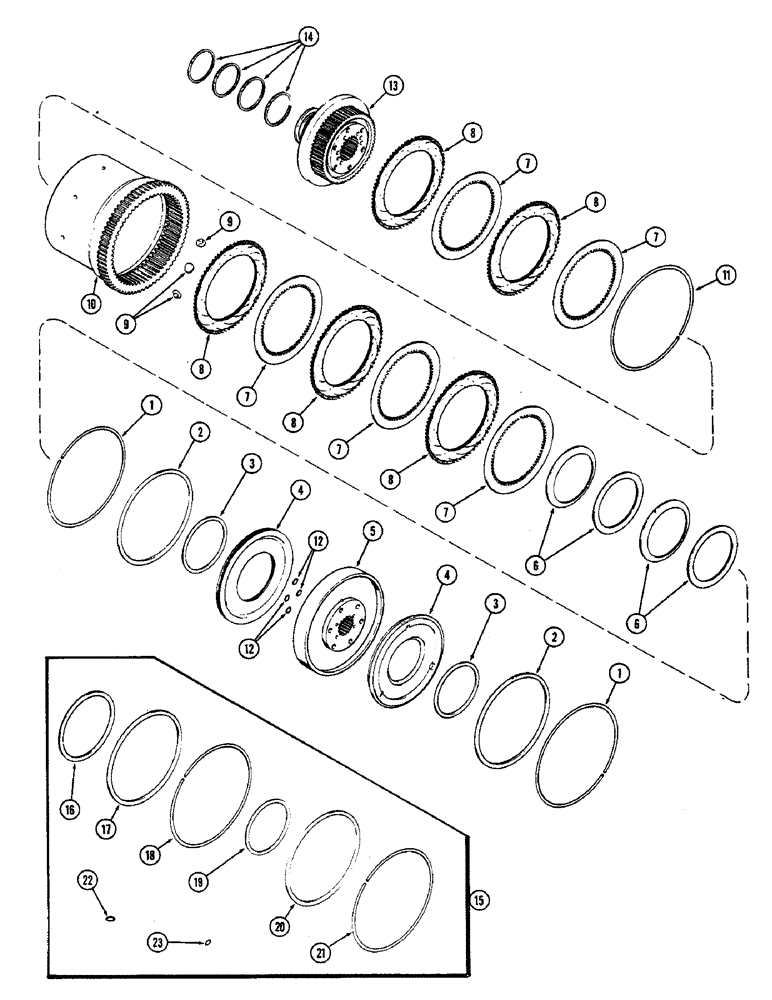

Запчасти Case IH 2470 (224) - CLUTCH, C2 AND C3 CLUTCHES, PRIOR TO TRANSMISSION SERIAL NO. 10053397 (06) - POWER TRAIN

1

A62642

ELECTRICAL WIRE

WIRE - C2 and C3 clutch piston sealing ring (Included in A42886 kit - see ref 15)

2шт.

2

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing, external, C2 x C3 clutch piston (Included in A42886 kit - see ref 15)

2шт.

3

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, internal, C2 and C3 clutch piston (Included in A42886 kit - see ref 15)

2шт.

4

A66359

PISTON

- C2 and C3 cluthc (Order 1-A146670, 1-A146682, 1-A146683, 1-A150753 and 1-A150754)

2шт.

5

A148688

CARRIER

- C2 and C3 piston with 31 internal splines (Transmission serial no. 10027109 and after)

1шт.

5

A64487

CARRIER

- C2 and C3 piston without internal splines (Prior to transmission serial no. 10027109) (Order A148688)

1шт.

6

A58094

SPRING

- Belleville, C3 clutch piston return

4шт.

7

A155461

PLATE

- steel C3 clutch (Replaces A58089)

5шт.

8

A61981

PLATE

- sintered C3 clutch

5шт.

9

A58413

BUTTON

BEARING - button, planetary ring gear (Only 3 used prior to transmission serial no. 2466903)

6шт.

10

A138618

GEAR

- planetary ring with 6 bearing holes (Transmission serial no. 2466903 and after) (Replaces A76497)

1шт.

10

A75116

GEAR

- planetary ring with 3 bearing holes (Prior to transmission serial no. 2466903) (Order 1-A138618 and 3-A58413)

1шт.

11

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, planetary ring gear retaining

1шт.

12

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - oil seal (Included in A42886 kit - see ref. 15)

4шт.

13

A153298

HUB

- C3 clutch, uses 1/2" bolts (Transmission serial no. 10121454 and after)

1шт.

13

A75117

HUB

- C3 clutch, uses 3/8" bolts (Prior to transmission serial no. 10121454)

1шт.

14

A58384

RING

- C3 clutch oil distributor piston

4шт.

15

A42886

SEAL KIT

SEAL KIT - power shift clutch, Includes: Ref. 16 - 23

1шт.

16

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - sealing C4 piston

1шт.

17

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - sealing C4 piston

1шт.

18

A62643

ELECTRICAL WIRE

WIRE - C4 piston sealing ring

1шт.

19

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, C1, C2 and C3 clutch piston

3шт.

20

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing C1, C2 and C3 clutch piston

3шт.

21

A62642

ELECTRICAL WIRE

WIRE - C1, C2 and C3 clutch piston sealing ring

3шт.

22

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil distributor tubes and C1 lube fitting

7шт.

23

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - C2 and C3 clutch oil seal

8шт.
