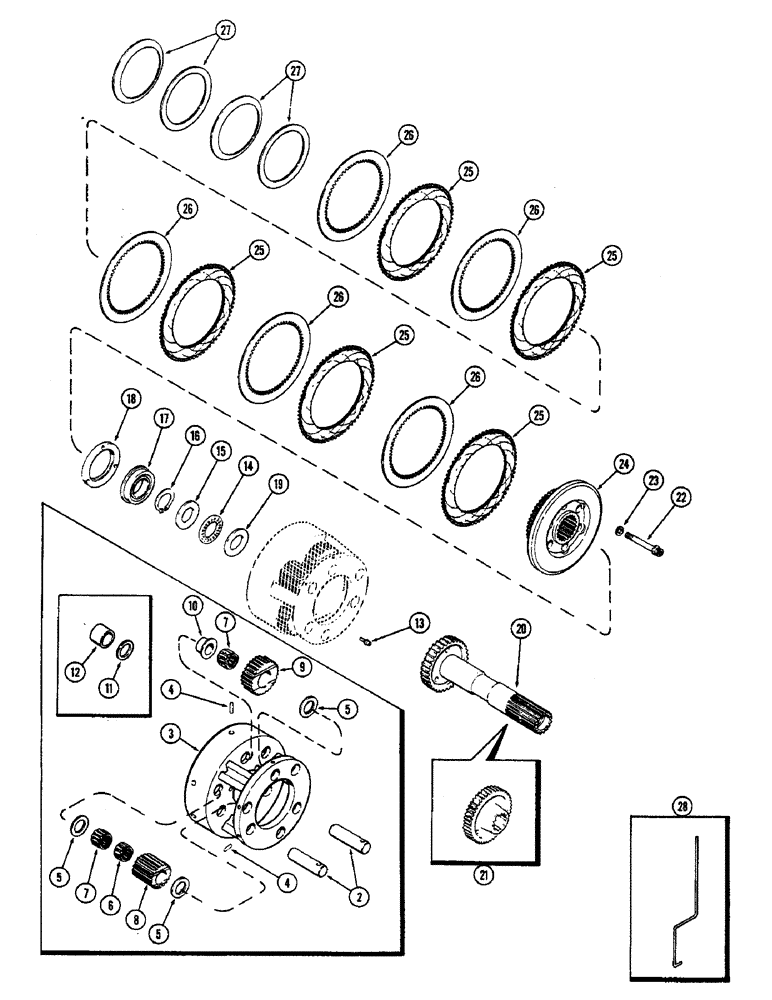

Запчасти Case IH 2470 (222) - CLUTCH, C2 CLUTCH AND PLANETARY (06) - POWER TRAIN

2

A63107

PIN

- short and long planet gear

6шт.

3

A148694

CARRIER

- planetary, with 9/32" diameter retainer holes (Transmission serial no. 10027109 and after)

1шт.

3

A75112

CARRIER

- planetary, with 7/32" diameter retainer holes (Prior to transmission serial no. 10027109)

1шт.

4

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

5

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planet gears

9шт.

6

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - needle, long planet gear

3шт.

7

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gears

6шт.

8

A63108

GEAR

- long planet

3шт.

9

A63105

GEAR

- short planet

3шт.

10

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- short planetary gear

3шт.

11

A150410

SPACER

RACE - thrust, short planet gear, rear (Replaces A58406)

3шт.

12

A63106

SPACER

- short planet gear, rear (Order A140877)

3шт.

13

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - 1/4 x 5/8" hex. socket head (Used with A146603 retainer)

3шт.

13

165-156

HEX SOC SCREW,Prev Torque, #10 - 24 x 5/8"

SCREW - #10-24 x 5/8" hex. socket head, with J-Loc (Used with A64444 retainer)

3шт.

14

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle, thrust, sun drive gear

1шт.

15

A54021

WASHER

RACE - thrust, sun drive gear

1шт.

16

A7611

SNAP RING,#175, Ext

Ring, Snap, , planetary bearing #175, Ext

1шт.

17

A63109

BEARING, BALL

BEARING - ball, planetary carrier, with snap ring

1шт.

18

A146603

RETAINER

- planetary carrier, with 1/4" NF tapped holes (Transmission serial no. 10027109 and after)

1шт.

18

A64444

COLLAR

RETAINER - planetary carrier, with #10 NC tapped holes (Order 1-A148690, 1-A146603 and 3-62-410) (Prior to transmission serial no. 10027109)

1шт.

19

H147785

BEARING WASHER

WASHER - thrust, drive sun gear

1шт.

20

A148695

SHAFT

- drive gear, with PTO, with 3 holes 25/64" diameter (9.92 MM) (Transmission serial no. 10027107 and after)

1шт.

20

A76489

SHAFT

- drive gear, with PTO, with 3 holes 23/64" diameter (9.13 MM) (Prior to transmission serial no. 10027109)

1шт.

21

A75109

GEAR

- drive, sun, without PTO

1шт.

22

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

BOLT - 1/2 x 4" NC, 12 point (Transmission serial no. 10121454 and after)

6шт.

22

A63099

12 PT SCREW,Ferry, 3/8" - 16 x 3", Gr 8

BOLT - 3/8 x 3" NC, 12 point (Prior to transmission serial no. 10121454)

6шт.

23

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, 7/16 x 49/64 x 1/32" (11.11 x 19.45 x 0.79 MM)

6шт.

24

A153081

HUB

- C2 clutch (Transmission serial no. 10121454 and after)

1шт.

24

A75115

HUB

- C2 clutch (Prior to transmission serial no. 10121454)

1шт.

25

A151419

PLATE

- sintered, C2 clutch (Order A61981)

5шт.

26

A155461

PLATE

- steel, C2 clutch (Replaces A58089)

5шт.

27

A58094

SPRING

- Belleville, C2 clutch piston return

4шт.

28

A45212

HOLDER

- C2 clutch plate

3шт.
