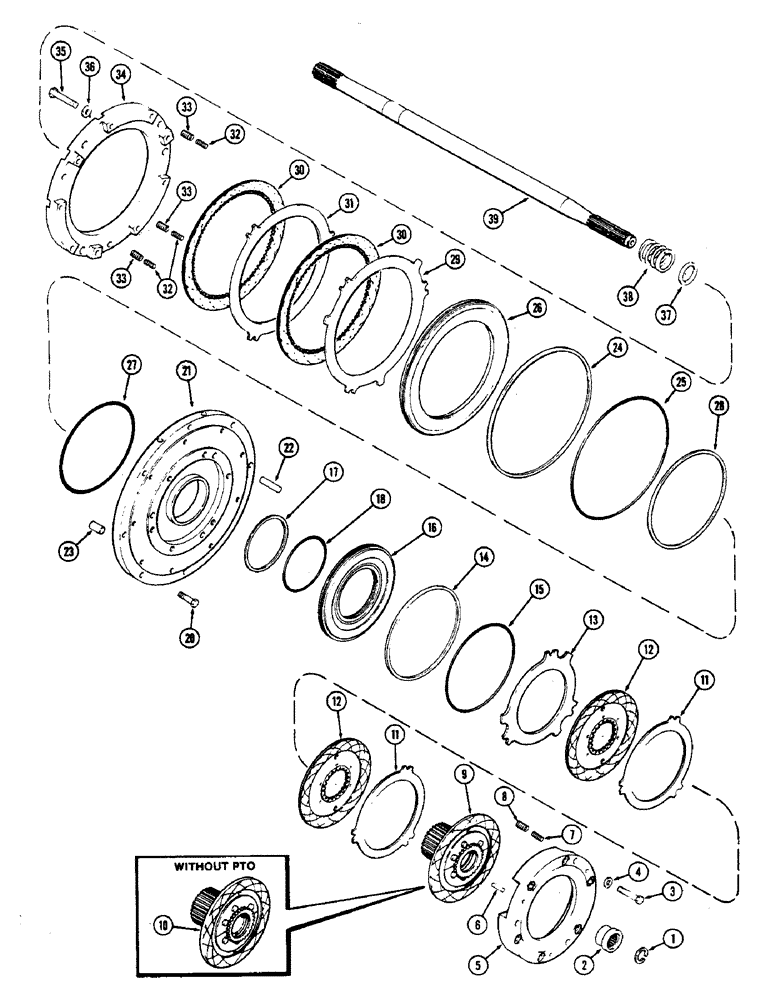

Запчасти Case IH 2470 (220) - CLUTCH, C1 AND C4 CLUTCHES, TRANSMISSION SERIAL NO. 10053397 AND AFTER, CONTD (06) - POWER TRAIN

20

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" NC hex. grade 8

8шт.

21

A75283

CARRIER

ASSEMBLY - C1 and C4 clutch piston (Replaces A76618), Includes: Ref. 22 and 23

1шт.

22

A75102

PIN,12.45mm OD x 50.8mm L

- C1 clutch plate, 1/2 x 2"

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

- C4 clutch reacion plate, 1/2 x 1-5/64"

3шт.

24

A146680

RING

- sealing, C4 piston, external, (In A46286 kit, figure 226)

1шт.

25

A150751

O-RING,12.09" ID x 0.107"

- piston, C4 piston, external (In A46286 kit, figure 226)

1шт.

26

A146671

PISTON

- C4 clutch

1шт.

27

A150752

O-RING,9.206" ID x 0.107" OD

- C4 piston, internal (In A46286 kit, figure 226)

1шт.

28

A146681

SEAL

- sealing, C4 cluch lip, external (In A46286 kit, figure 226)

1шт.

29

A58056

PLATE

- steel, with tabs, C4 clutch

1шт.

30

A67128

PLATE

- friction, C4 clutch (Replaces A62563)

2шт.

Ref. 30 - Has 119 Teeth

1шт.

31

A75105

PLATE

- steel, without tabs, C4 clutch

1шт.

32

A62607

SPRING

- C4 clutch return, 23/64 diameter x 1-3/32" free length (9.12 x 27.78 MM)

3шт.

33

A62606

SPRING

- C4 clutch return, 9/16 diameter x 1-3/32" free length (14.28 x 27.78 MM)

3шт.

34

A77120

PLATE

- C4 reaction

1шт.

35

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate, 7/16 x 49/64 x 1/32" (11.11 x 19.45 x 0.79 MM)

9шт.

37

A75110

WASHER

- sun gear locating spring, 1-7/16 x 2 x 7/64", without PTO (36.1 x 50.8 x 2.78 MM)

1шт.

38

A63068

SPRING

- locating, sun gear, 2-19/64" free length (58.34 MM) Without PTO

1шт.

39

A76488

SHAFT

- transmission input and pump drive

1шт.
