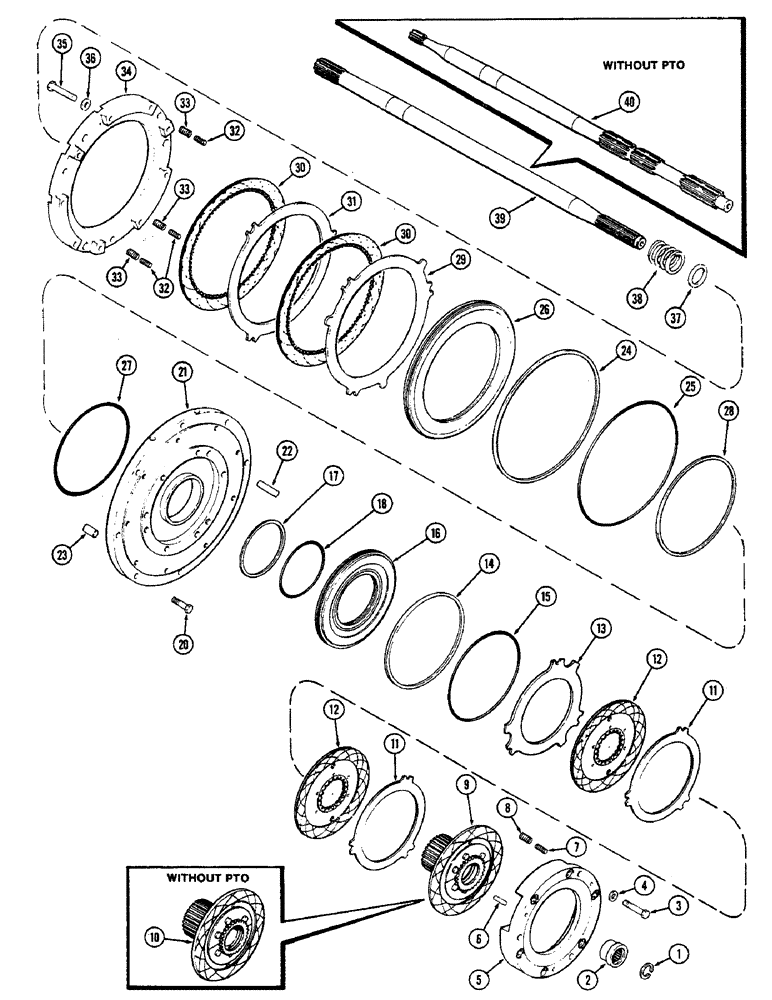

Запчасти Case IH 2470 (218) - CLUTCH, C1 AND C4 CLUTCHES, TRANSMISSION SERIAL NO. 10053397 AND AFTER (06) - POWER TRAIN

1

A39669

SNAP RING,#137, 1.277", Ext, Spiral

RING - snap, clutch support bushing, without PTO

1шт.

2

A75970

BEARING

- clutch support, without PTO

1шт.

3

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

6шт.

4

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate bolt, 7/16 x 49/64 x 1/32" (11.11 x 19.45 x 0.79 MM)

6шт.

5

A140075

PLATE

- C1 reaction (Replaces A75101)

1шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring centering 3/16" x 1 1/4", Slotted

3шт.

7

A62607

SPRING

- C1 clutch return, 23/64" diameter, 1-3/32" free length (9.12 x 27.78 MM)

3шт.

8

A62606

SPRING

- C1 clutch return, 9/16 diameter x 1-3/32" free length (14.28 x 27.78 MM)

3шт.

9

A148836

GEAR

ASSEMBLY - sun, with C1 clutch plate, with PTO (Transmission serial no. 10027109 and after)

1шт.

9

A142538

GEAR

ASSEMBLY - sun C1 clutch plate, with PTO (Replaces A77132 and A138614) (Order 1-A148836 and 1-A140075) (Prior to transmission serial no. 10027109)

1шт.

10

A142537

GEAR

- sun, with C1 clutch plate, without PTO (Replaces A77221 and A138613)

1шт.

11

A65525

PLATE

- steel, without tab, C1 clutch

2шт.

12

A142536

PLATE

- sintered, C1 clutch (Replaces A77131, A138612 and A140480)

2шт.

13

A65524

PLATE

- steel, with tab, C1 clutch

1шт.

14

A146682

RING

- sealing, external, C1 piston (In A46286 kit, figure 226)

1шт.

15

A150753

O-RING,7.84" ID x 0.107"

- piston, exernal, C1 piston (In A46286 kit, figure 226)

1шт.

16

A146670

PISTON

- C1 clutch

1шт.

17

A146683

RING

- sealing, internal, C1 piston (In A46286 kit, figure 226)

1шт.

18

A150754

O-RING,4.718" ID x 0.107"

- piston, internal, C1 piston (In A46286 kit, figure 226)

1шт.
