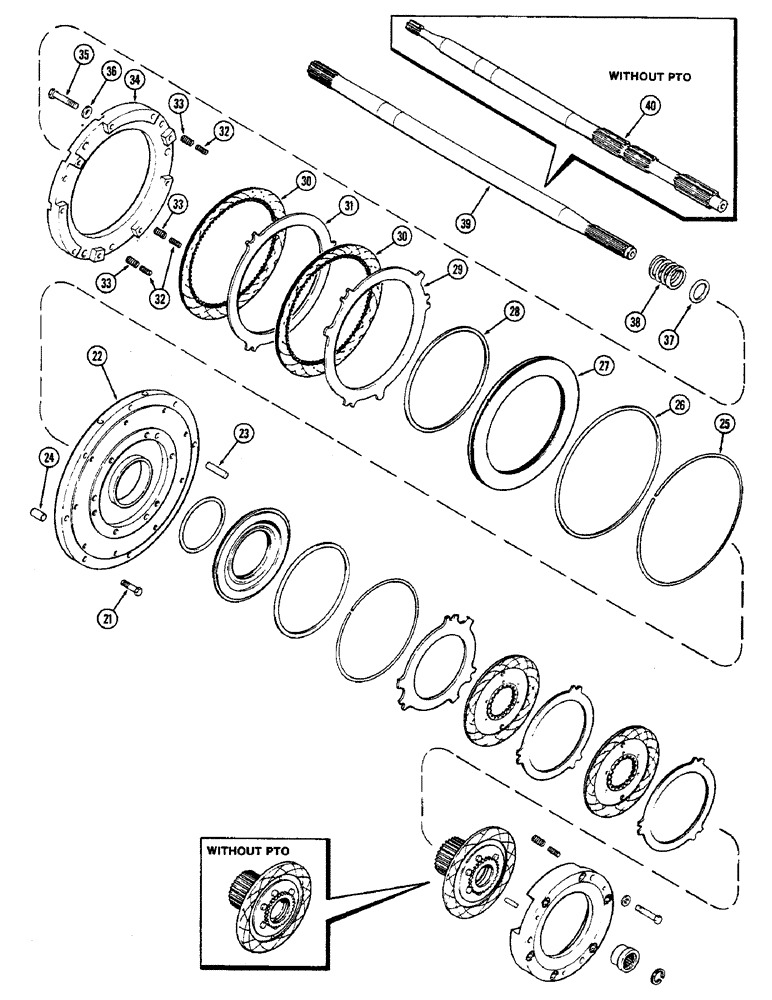

Запчасти Case IH 2470 (216) - CLUTCH, C1 AND C4 CLUTCHES, PRIOR TO TRANSMISSION SERIAL NO. 10053397, CONTD (06) - POWER TRAIN

21

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- 3/8 x 1-1/2" NC hex. grade 8

8шт.

22

A75283

CARRIER

ASSEMBLY - C1 and C4 clutch piston (Replaces A76618), Includes: Ref. 23 and 24

1шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

- C1 clutch plate, 1/2 x 2"

3шт.

24

A62609

PIN,12.45mm OD x 27.43mm L

- C4 clutch reaction plate, 1/2 x 1-5/64"

3шт.

25

A62643

ELECTRICAL WIRE

WIRE - C4 piston sealing ring, external (Included in A42886 kit - see figure 224)

1шт.

26

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - sealing, external, C4 piston (Included in A42886 kit - see figure 232)

1шт.

27

A58395

PISTON

- C4 (Order 1-A146671, A146680, 1-A146681, 1-A150751 and 1-A150752)

1шт.

28

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - sealing, internal, C4 piston (Included in A42886 kit - see figure 224)

1шт.

29

A58056

PLATE

- steel, with tabs, C4 clutch

1шт.

30

A67128

PLATE

- friction, C4 clutch (Replaces A62563)

2шт.

31

A75105

PLATE

- steel, without tabs, C4 clutch

1шт.

32

A62607

SPRING

- C4 clutch return, 23/64 diameter x 1-3/32" free length (9.12 x 27.78 MM)

3шт.

33

A62606

SPRING

- C4 clutch return, 9/16 diameter x 1-3/32" free length (14.28 x 27.78 MM)

3шт.

34

A77120

PLATE

- C4 reaction

1шт.

35

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate, 7/16 x 49/64 x 1/32" (11.11 x 19.45 x 0.79 MM)

9шт.

37

A75110

WASHER

- sun gear locating spring 1-7/16 x 2 x 7/64" without PTO (36.51 x 50.8 x 2.78 MM)

1шт.

38

A63068

SPRING

- locating, sun gear 2-19/64" free length (58.34 MM) Without PTO

1шт.

39

A76488

SHAFT

- transmission input and pump drive, with PTO

1шт.

40

A136491

SHAFT

- transmission input and pump drive, without PTO

1шт.
