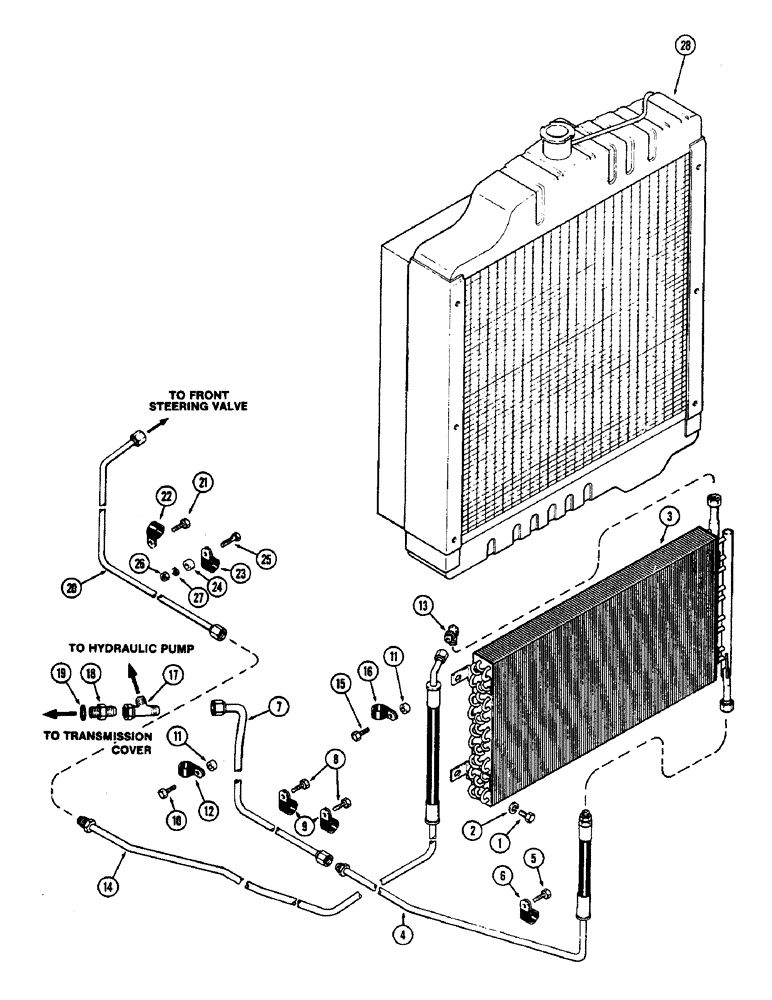

Запчасти Case IH 2470 (002) - OIL COOLER (02) - ENGINE

1

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

2

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

A147529

COOLER, OIL

COOLER - oil (Replaces A77179)

1шт.

4

A77041

HOSE

- return, oil cooler

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

6

49838

CLAMP

- for 1/2" tube (12.7 MM)

1шт.

7

A77040

TUBE

- return, oil cooler

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

49838

CLAMP

- for 1/2" tube (12.7 MM)

2шт.

10

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - 3/8" x 1-1/4" NC hex.

1шт.

11

A76093

BUSHING

SPACER - tube clamp

2шт.

12

49838

CLAMP

- for 1/2" tube (12.7 MM)

1шт.

13

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

14

A135671

HOSE

- inlet, oil cooler

1шт.

15

187-1305

SELF-TAP SCREW,Hex, 3/8" - 18 x 1 1/4"

SCREW - 3/8" x 1-1/4" NC hex.

1шт.

16

49838

CLAMP

- for 1/2" tube (12.7 MM)

1шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSEMBLY - straight, Incl. Ref 19

1шт.

20

A138365

TUBE

- inlet, oil cooler (Replaces A77038)

1шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

49838

CLAMP

- for 1/2" tube (12.7 MM)

2шт.

23

49838

CLAMP

- for 1/2" tube (12.7 MM)

1шт.

24

A76093

BUSHING

SPACER - tube clamp

1шт.

25

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

REF

INSTRUCTION

RADIATOR - engine (See figures 4 and 6)

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/8" (12.7 x 15.87 x 3.18 MM)

1шт.
