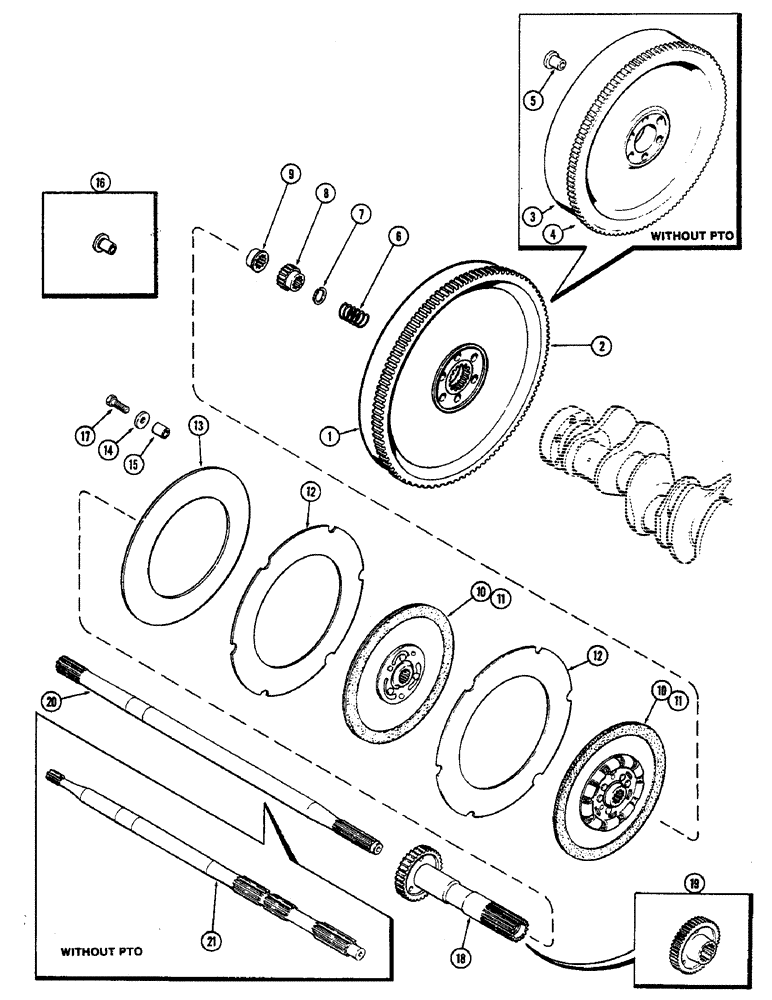

Запчасти Case IH 2470 (212) - CLUTCH, TORQUE LIMITER (06) - POWER TRAIN

1

REF

INSTRUCTION

FLYWHEEL ASSEMBLY - with splined hub, used with PTO (See figure 42), Includes: Ref. 2

1шт.

2

A27920

GEAR

- ring, 137 teeth

1шт.

3

REF

INSTRUCTION

FLYWHEEL ASSEMBLY - used without PTO (See figure 42), Includes: Ref. 4 and 5

1шт.

4

A27920

GEAR

- ring, 137 teeth

1шт.

5

A63928

BUSHING

-, Serial Range: crankshaft-flywheel

1шт.

6

A65416

SPRING

- PTO and hydraulic pump drive sleeve, with PTO only

1шт.

7

A76480

RING

- snap, transmission input and pump drive shaft, with PTO only

1шт.

8

A66610

SLEEVE

- transmission input and pump drive shaft, with PTO only

1шт.

9

A76482

BUSHING,20T

- transmission input and pump drive shaft, with PTO only

1шт.

10

A155490

PLATE

LIMITER - 12" driven member, used with PTO (Replaces A154349)

2шт.

11

A63930

CLUTCH DISC

LIMITER - 12" driven member, used without PTO (Replaces A65422)

2шт.

12

A58036

PLATE

- pressure

2шт.

13

A64370

SPRING

- Belleville

1шт.

14

A67195

WASHER

- clutch spring retainer (Used with A77338) (Order A153849)

6шт.

15

A77338

BUSHING

SPACER - clutch spring (Used with A67195) (Order A153849)

6шт.

16

A153849

RETAINER

- clutch spring, one piece (Replaces A76467)

6шт.

17

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 2-1/4" NC hex., grade 8

6шт.

18

A148695

SHAFT

- drive gear, with PTO, with holes 25/64" diameter (9.92 MM) (Transmission serial no. 10027109 and after)

1шт.

18

A76489

SHAFT

- drive gear, with PTO, with 3 holes 23/64" diameter (9.13 MM) (Prior to transmission serial no. 10027109)

1шт.

19

A75109

GEAR

- drive, sun, without PTO

1шт.

20

A76488

SHAFT

- pump and PTO drive, with PTO

1шт.

21

A136491

SHAFT

- transmission input and pump drive, without PTO

1шт.
