Запчасти Case IH 2470 (210) - FOOT CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

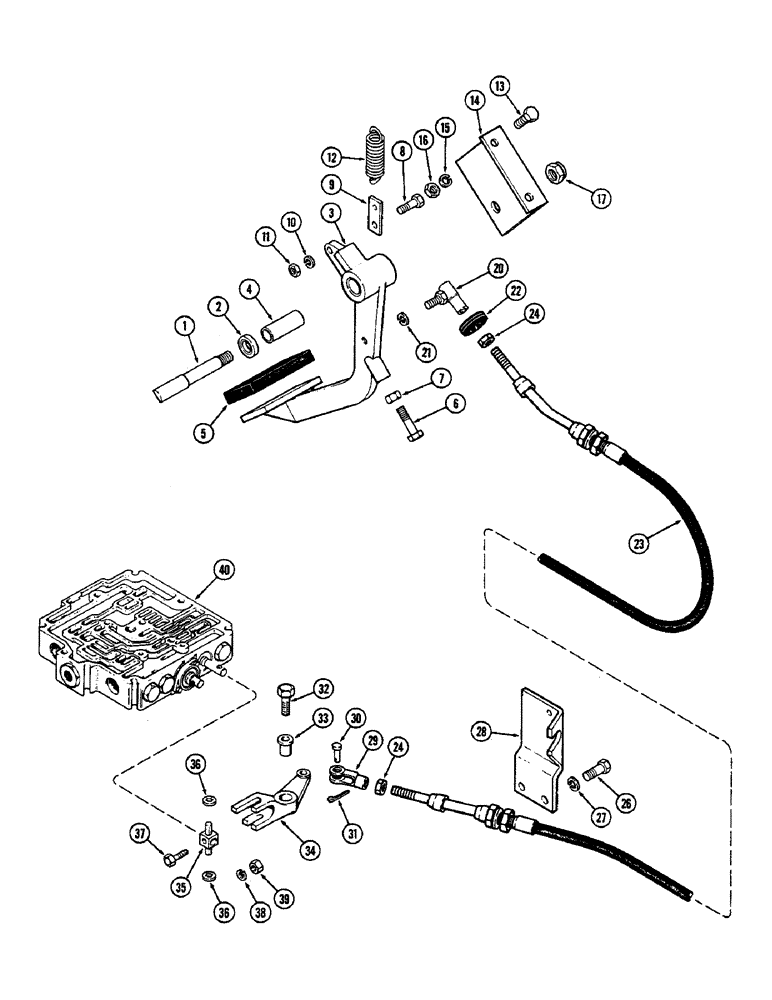

Схема запчастей Case IH 2470 - (210) - FOOT CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN
8
34
37
27
16
22
1
15
36
36
6
4
39
35
38
2
24
40
5
29
20
11
26
33
13
23
14
10
7
24
21
9
17
30
28
32
31
3
12

Артикул

Название

Примечание

Количество

1

A75359

SHAFT

- clutch pedal

1шт.

2

A75360

SPACER

- clutch pedal shaft

1шт.

3

A145124

PEDAL

ASSEMBLY - clutch (Replaces A75361), Includes: Ref. 4

1шт.

4

A75362

BUSHING

- clutch pedal

1шт.

5

F9197

PAD

- pedal

1шт.

6

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

9

A76169

CLIP

- spring

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

(Replaces 25-106) 3/8"-16, G5

1шт.

12

A137396

SPRING

- pedal return (Replaces A60302)

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

A76465

BRACKET

- clutch

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

(Replaces 25-106) 3/8"-16, G5

2шт.

17

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, , Esna 5/8"-11, GC

1шт.

20

D38296

JOINT

BALL JOINT - cable

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

A75989

GROMMET

- clutch cable

1шт.

23

A145342

CABLE

- clutch control (Replaces A76276)

1шт.

Ref. 23 - (48")

1шт.

24

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" NF hex., jam

2шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

28

A75978

BRACKET

ANCHOR - clutch cable

1шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clutch cable

1шт.

30

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, (Replaces 141-4) 3/8" x 1 1/16"

1шт.

31

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

33

A59772

BUSHING

- clutch spool lever

1шт.

34

A75323

LEVER

- clutch spool

1шт.

35

A59150

LINK

- operating, clutch spool

1шт.

36

A59773

RING

- retaining

2шт.

37

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figures 300 and 302)

1шт.

Выбрано товаров: 38
