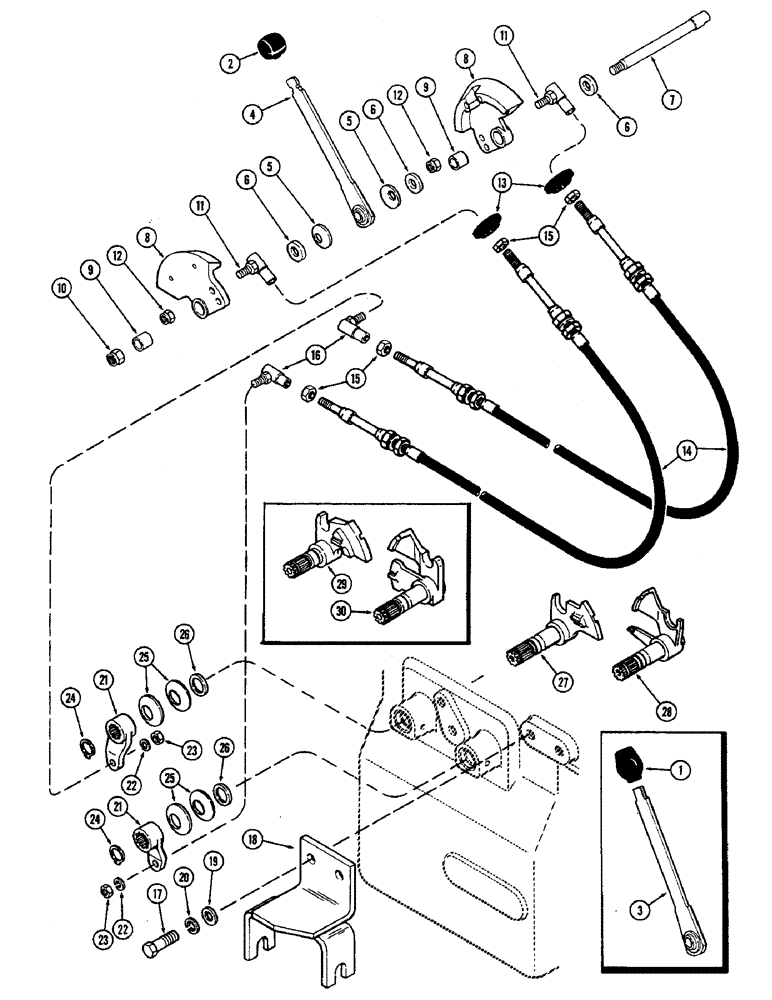

Запчасти Case IH 2470 (206) - RANGE SHIFT LINKAGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A65699
KNOB
- control lever, plastic (Order A137806)
1шт.
2
A137806
KNOB
- control lever, rubber
1шт.
3
A75378
LEVER
- range shift, with threaded top (Order ref. 2 and 4)
1шт.
4
A137857
LEVER
- range shift (Replaces A75378)
1шт.
5
A59662
WASHER
- beveled
2шт.
6
A60367
SPACER
- gear shift quadrants
3шт.
7
A75377
SHAFT
- control levers
1шт.
8
A61862
QUADRANT
ASSEMBLY - range shift, Includes: Ref. 9
2шт.
9
A59429
BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L
- quadrant
1шт.
11
D38296
JOINT
- ball, range collar
2шт.
12
131-5
LOCK NUT,3/8"-16, GB
NUT - lock, 3/8"-24 NF Esna
2шт.
13
A75989
GROMMET
- cables
2шт.
14
A145335
CABLE
- range control, 72" (Replaces A77122)
2шт.
15
86585245
SPECIAL NUT,JAM, 5/8" - 18
- 3/8" NF hex., jam
4шт.
16
A60307
JOINT
- ball, range cables
2шт.
17
113-600
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
2шт.
18
A161220
BRACKET
BULKHEAD - range cable (Replaces A76548 and A138257)
1шт.
19
195-541
WASHER,5/8", SAE
- 21/32 x 1-5/16 x 3/32" (16.67 x 33.38 x 2.38 MM)
2шт.
20
192-25
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21
REF
INSTRUCTION
LEVER - shifting (See figure 208)
2шт.
22
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
23
129-123
NUT,3/8"-24, G5
2шт.
24
B18208
SNAP RING,#100, Ext
shifter lever to shifter shaft #100, Ext
2шт.
25
A76552
SPRING
- wave, shifting lever
2шт.
26
A76307
OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk
- oil, shifter shaft
2шт.
27
A146849
LEVER
- shifter, first and second (Transmission serial no. 10027104 and after)
1шт.
28
A146850
LEVER
- shifter, third and fourth (Transmission serial no. serial 10027104 and after)
1шт.
29
A76527
LEVER
- shifter, first and second (Order A146849) (Prior to transmission serial no. 10027104)
1шт.
30
A76549
LEVER
- shifter, third and fourth (Order A146850) (Prior to transmission serial no. 10027104)
1шт.
Выбрано товаров: 30
