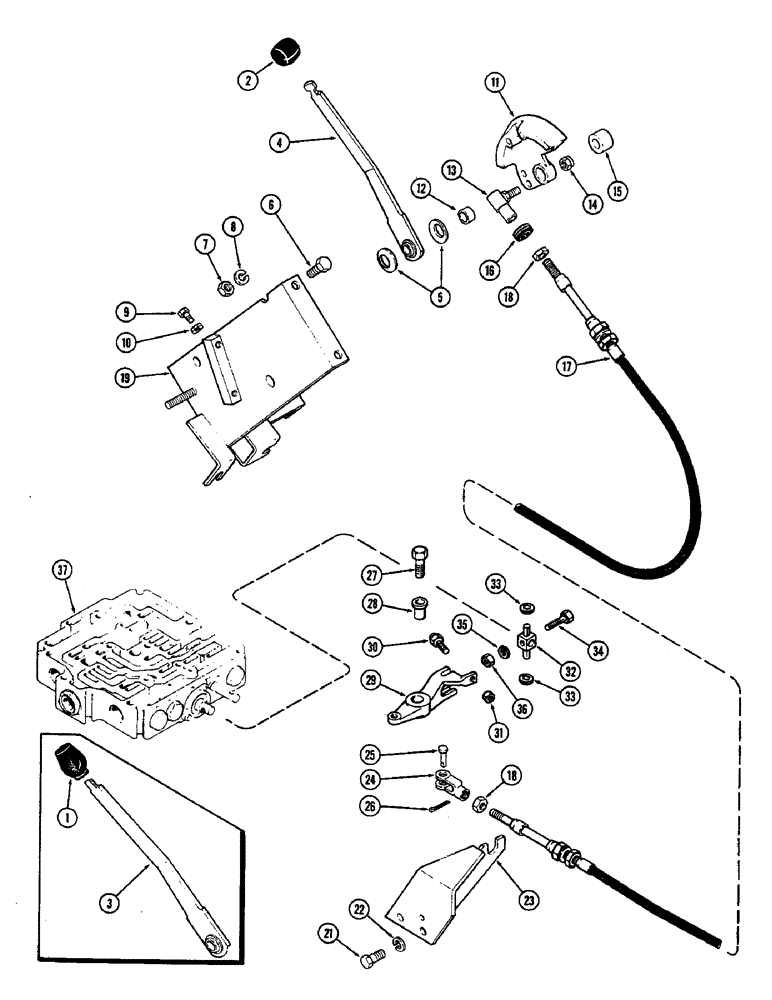

Запчасти Case IH 2470 (204) - POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- control lever, plastic (Order A137806)

1шт.

2

A137806

KNOB

- control lever, rubber (Replaces A65699)

1шт.

3

A75380

LEVER

- power shift, with threaded top (Order ref. 2 and 4)

1шт.

4

A137858

LEVER

- power shift (Replaces A75380)

1шт.

5

A59662

WASHER

- beveled

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" NC hex.

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" NC hex., jam

1шт.

11

A61862

QUADRANT

ASSEMBLY - Powershift, Includes: Ref. 12

1шт.

12

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

13

A75991

BALL

JOINT - power shift cable

1шт.

14

131-5

LOCK NUT,3/8"-16, GB

NUT - lock, 3/8"-24 NF Esna

1шт.

15

A75379

BUSHING

SPACER - quadrant

1шт.

16

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

- cable

1шт.

17

A145341

CABLE

- power shift control (Replaces A76289)

1шт.

Ref. 17 - Use A143872 Cable & A161072 Grommet

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

19

A75366

BRACKET - cockpit

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

A75975

BRACKET

BULKHEAD - power shift cable

1шт.

24

A60663

YOKE

- power shift cable

1шт.

25

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

28

A59772

BUSHING

- lever

1шт.

29

A59771

LEVER

- operating, power shift spool

1шт.

30

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

SCREW - adjusting, power shift spool

1шт.

31

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" NC hex., jam

1шт.

32

A59150

LINK

- operating clutch spool

1шт.

33

A59773

RING

- retaining

2шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

25-104

NUT,1/4"-20, G5

1шт.

37

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control (See figure 300 and 302)

1шт.
