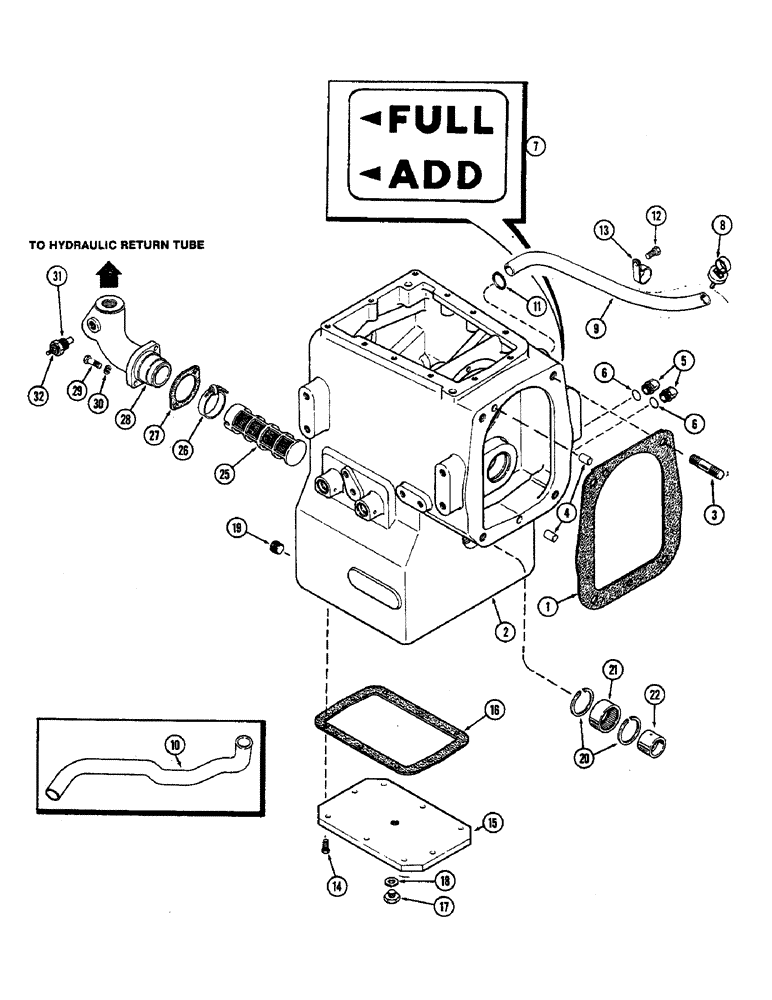

Запчасти Case IH 2470 (200) - TRANSMISSION HOUSING AND ATTACHING PARTS (06) - POWER TRAIN

1

A58138

GASKET

- clutch housing to transmission housing

1шт.

2

A76521

CASE

HOUSING - transmission (Order A154372 housing and A46430 kit, see figure 202)

1шт.

3

A151866

STUD

- transmission housing to clutch housing, 7/8 NF x 4"

4шт.

4

A28269

PIN

- dowel, clutch housing to transmission case, 3/4 x 1-1/4"

2шт.

5

A58420

GAUGE

ASSEMBLY - oil lever sight, Includes: Ref. 6

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- sight gauge, 5/8 x 13/16 x 3/32" (15.87 x 20.64 x 2.38 MM)

1шт.

7

321-2470

DECAL

- transmission oil level

1шт.

8

A27973

CAP

- filler and breather (Replaces A59123)

1шт.

9

A138464

TUBE

- oil filler and breather (Transmission serial no. 10025310 and after)

1шт.

10

A75165

TUBE

- oil filler and breather (Prior to transmission serial no. 10025310)

1шт.

11

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- oil filler and breather tube 1-1/2 x 1-3/4 x 1/8" (38.1 x 44.45 x 3.17 MM)

1шт.

12

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Replaces 13-816) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

13

49773

CLAMP

- oil filler and breather tube

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

15

A140244

COVER

- transmission case, bottom (Replaces A75166)

1шт.

16

A75167

GASKET,0.79mm Thk

- transmission case bottom cover

1шт.

17

A140222

PLUG

- drain, transmission (Replaces A14280)

1шт.

18

A51759

GASKET

- transmission drain plug (Replaces A58608)

1шт.

19

221-846

PLUG,Hex Soc, 1"-11 1/2

- 1" hex. socket head (Used without PTO)

1шт.

20

A76298

SNAP RING,#300, 3.222", Int

RING - snap, output shaft needle bearing

2шт.

21

H748087

NEEDLE BEARING,Needle, 63.78mm ID x 76.2mm OD x 38.1mm W

BEARING - needle, output shaft, front

1шт.

22

A75126

RING RACE

RACE - inner, output shaft needle bearing

1шт.

25

A60299

FILTER STRAINER

SCREEN - suction

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(46.04 to 69.85 mm) #36, 1.81/2.75 Type F Worm

1шт.

27

A75314

GASKET

- suction manifold

1шт.

28

A75315

MANIFOLD

- suction

1шт.

29

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

A21462

SENDER UNIT

SENDER - transmission temperature gauge

1шт.

32

129-661

NUT

- 10 NF hex., brass

1шт.
