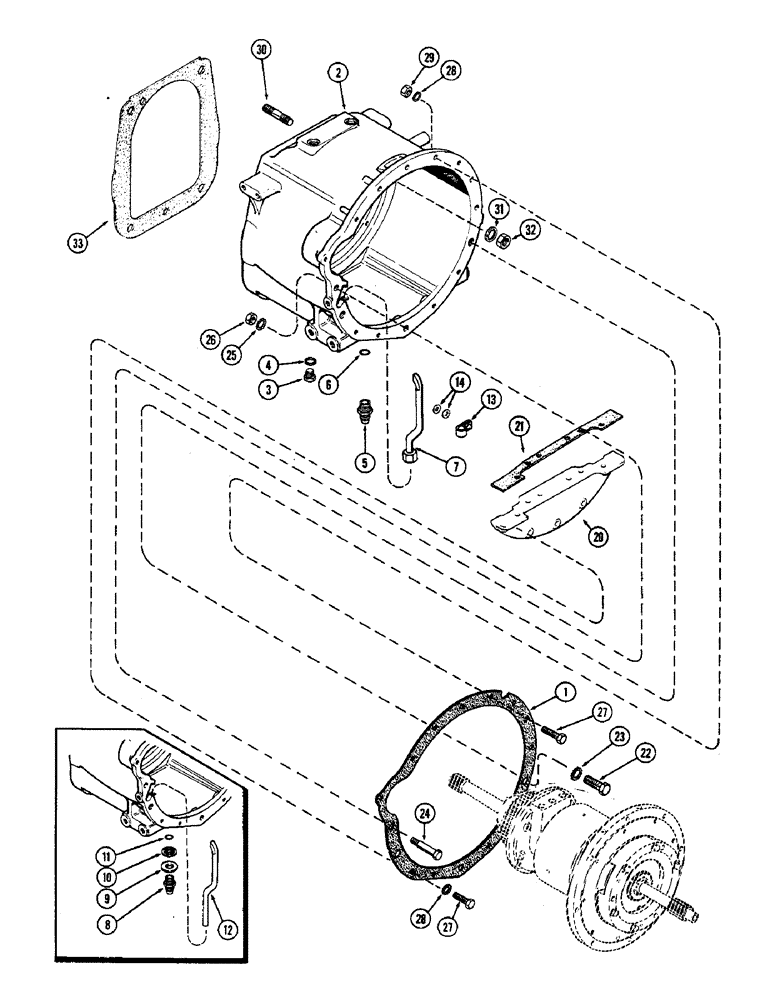

Запчасти Case IH 2470 (198) - CLUTCH HOUSING AND ATTACHING PARTS (06) - POWER TRAIN

1

A58139

GASKET

- clutch, Serial Range: housing-engine

1шт.

2

A140730

HOUSING

- clutch (Transmission serial no. 10025310 and after)

1шт.

2

A58483

HOUSING - clutch (Prior to transmission serial no. 10025310)

1шт.

3

A140222

PLUG

- drain, clutch housing

1шт.

4

A51759

GASKET

- clutch housing drain plug (Replaces A58608)

1шт.

5

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- bulkhead, 3/4-16 x 2-7/16"

1шт.

7

A140211

TUBE

- C1, lube oil (Transmission serial no. 10027854 and after)

1шт.

8

A75100

FITTING

- C1, clutch lube oil, 3/4-16 x 1-1/2"

1шт.

9

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - flat steel, 49/64 x 1-15/64 x 1/32" (19.45 x 31.35 x 0.79 MM)

1шт.

10

A75995

SEAL

- thread, 1-3/8 OD x 7/64" thick

1шт.

11

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- C1, clutch lube oil fitting, 1/2 x 5/8 x 1/16" (12.7 x 15.8750 x 1.5875 MM) (Included in A42886 kit - see figure 224)

1шт.

12

A76487

TUBE

- C1, lube oil (Order 1-A140211 tube, 1-218-674 fitting and 1-218-5006 o-ring) (Prior to transmission serial no. 10027854)

1шт.

13

49838

CLAMP

- C1, lube oil tube

1шт.

14

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- clamp, 27/64 x 3/4 x 1/32" (10.72 x 19.05 x 0.79 MM)

2шт.

20

A144906

PLATE

- flyweel housing seal

1шт.

21

REF

INSTRUCTION

GASKET - flywheel housing seal plate (See figure 56)

1шт.

22

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

23

A34651

LOCK WASHER

- lock, 51/64" ID external type teeth

2шт.

24

A149764

STEP BOLT

BOLT - dowel, 1/2 x 3-9/64" NC hex. head (Replaces A61040)

1шт.

24

A149765

STEP BOLT

BOLT - dowel, 1/2 x 2-21/32" NC hex. head (Replaces A61041)

2шт.

25

A34650

LOCK WASHER

- lock, 1/2" external type

3шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

27

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

27

113-2401

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

2шт.

27

113-2408

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- 1/2 x 1-7/8" NC hex., grade 5

1шт.

27

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2 x 2-1/2" NC hex., grade 5

2шт.

27

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

28

A34650

LOCK WASHER

- lock, 1/2" external type

11шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

30

A151866

STUD

- transmission case to clutch housing, 7/8 NF x 4"

4шт.

31

193-75

LOCK WASHER,7/8"

WASHER - internal Shakeproof 7/8"

4шт.

32

129-129

NUT,7/8"-14, G5

- 7/8" NF hex. (Replaces 25-1114)

4шт.

33

A58138

GASKET

- clutch housing to transmission housing

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/8" (121715.87 x 3.17 MM)

1шт.
